Description

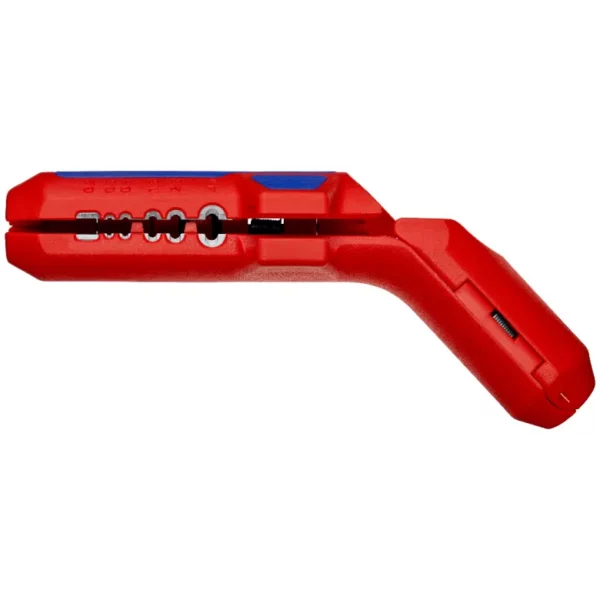

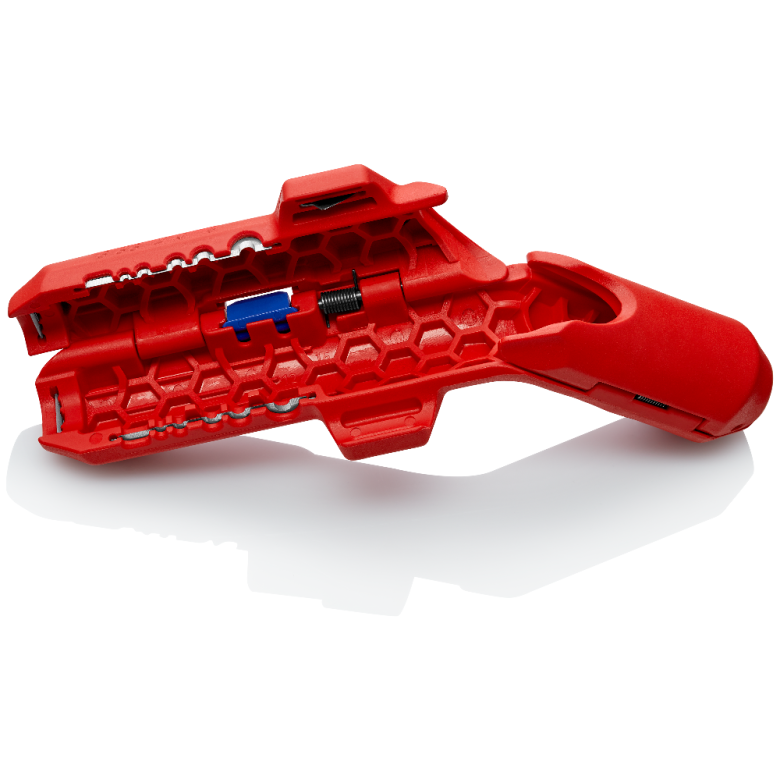

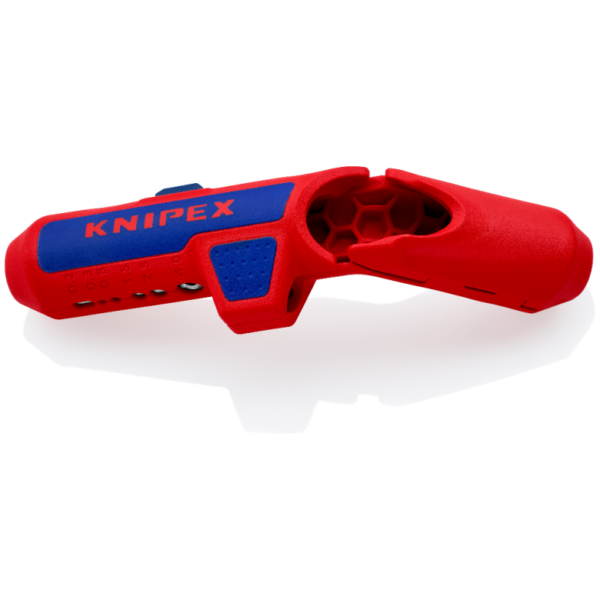

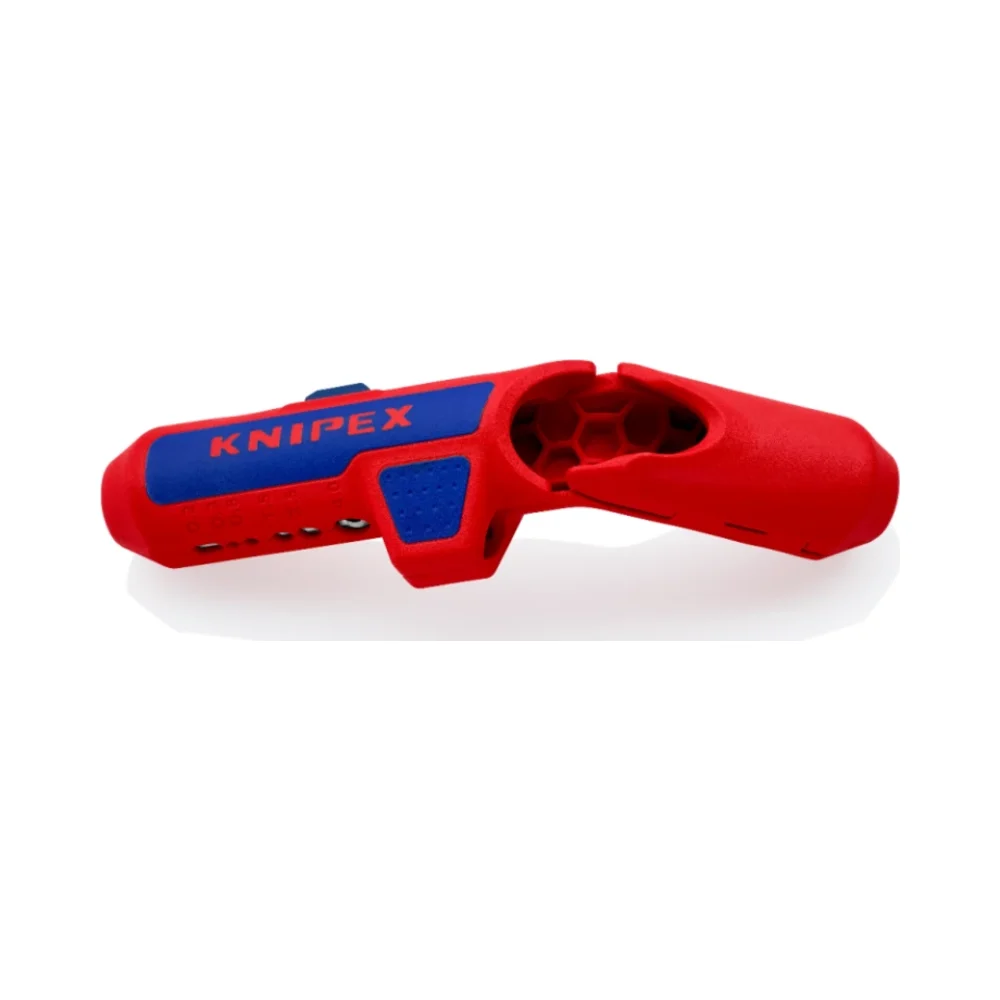

KNIPEX ErgoStrip Universal Stripping Tool for Right-Handers

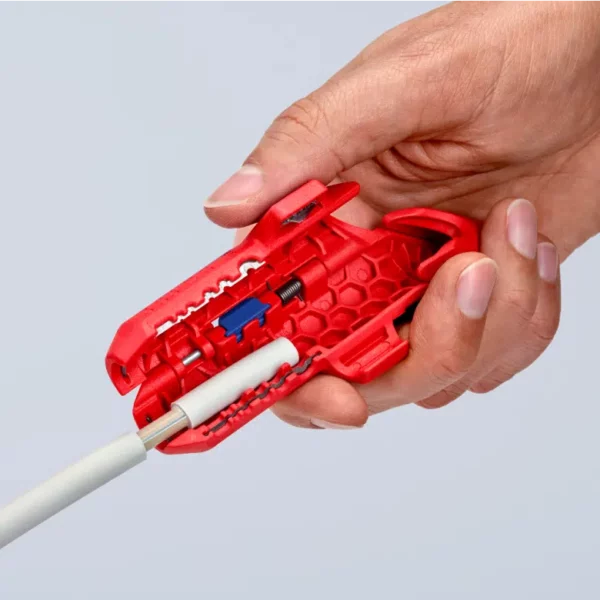

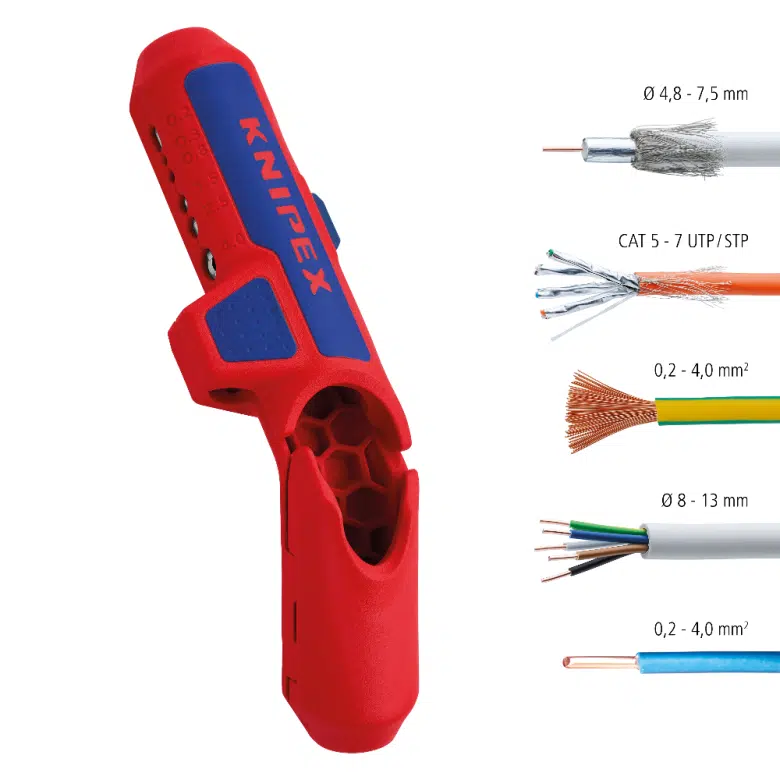

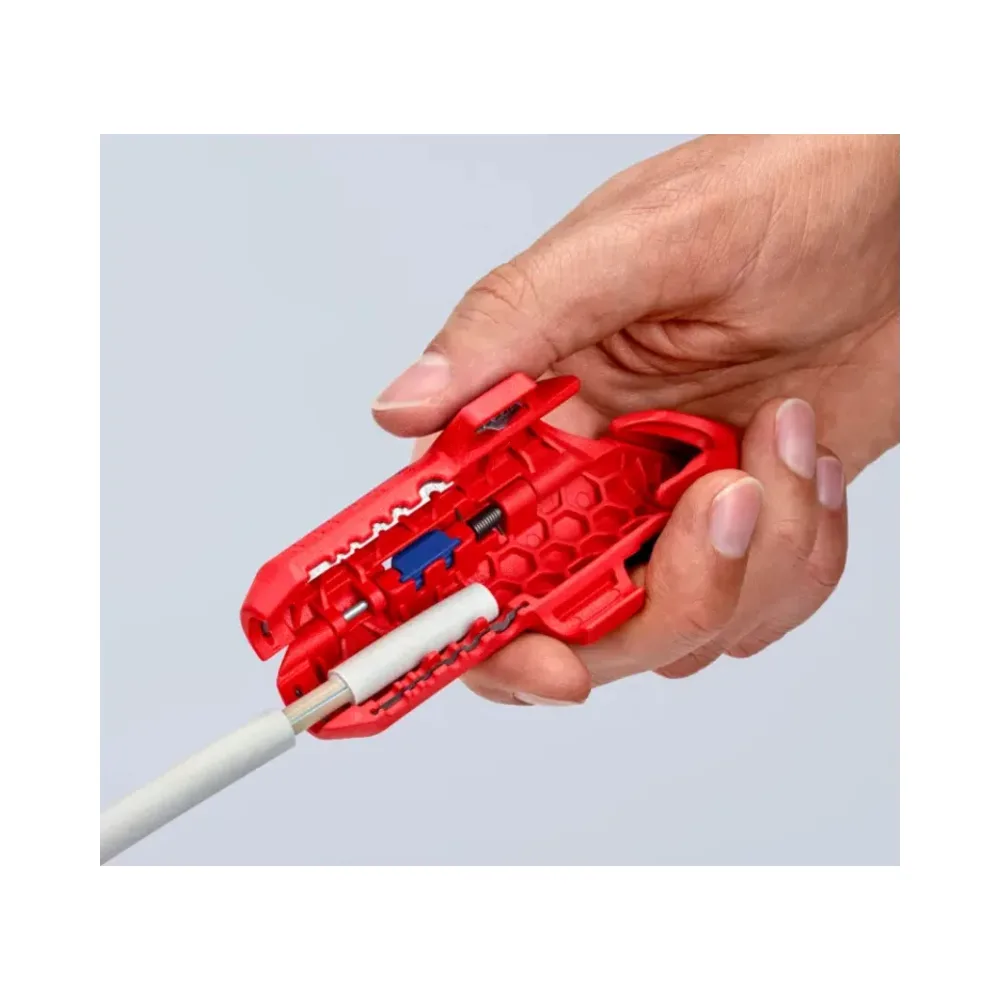

- For fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2.5 mm²), data cables (e.g. twisted pair) and coax cables

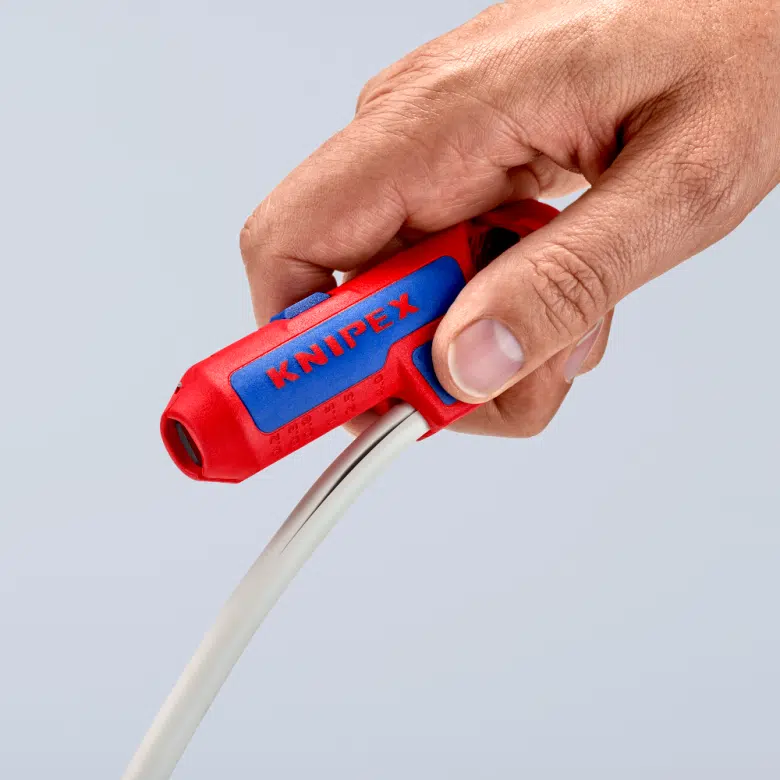

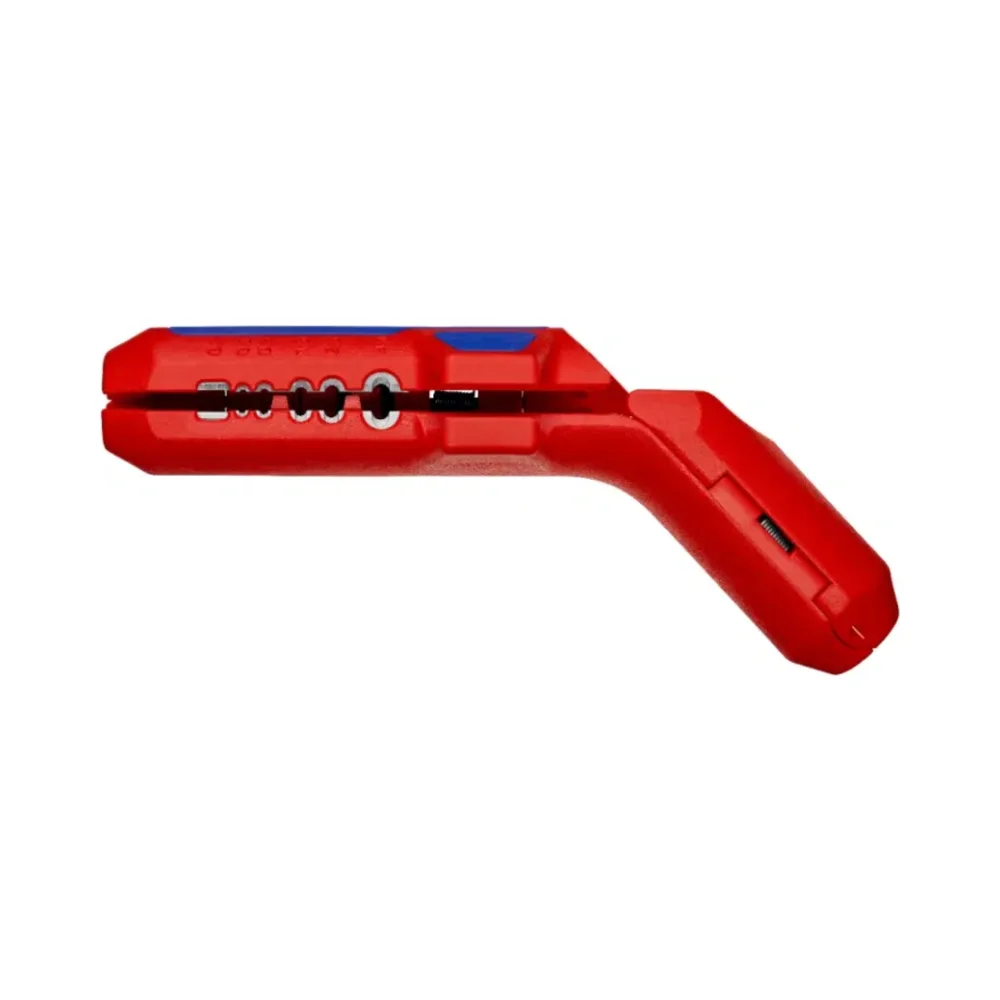

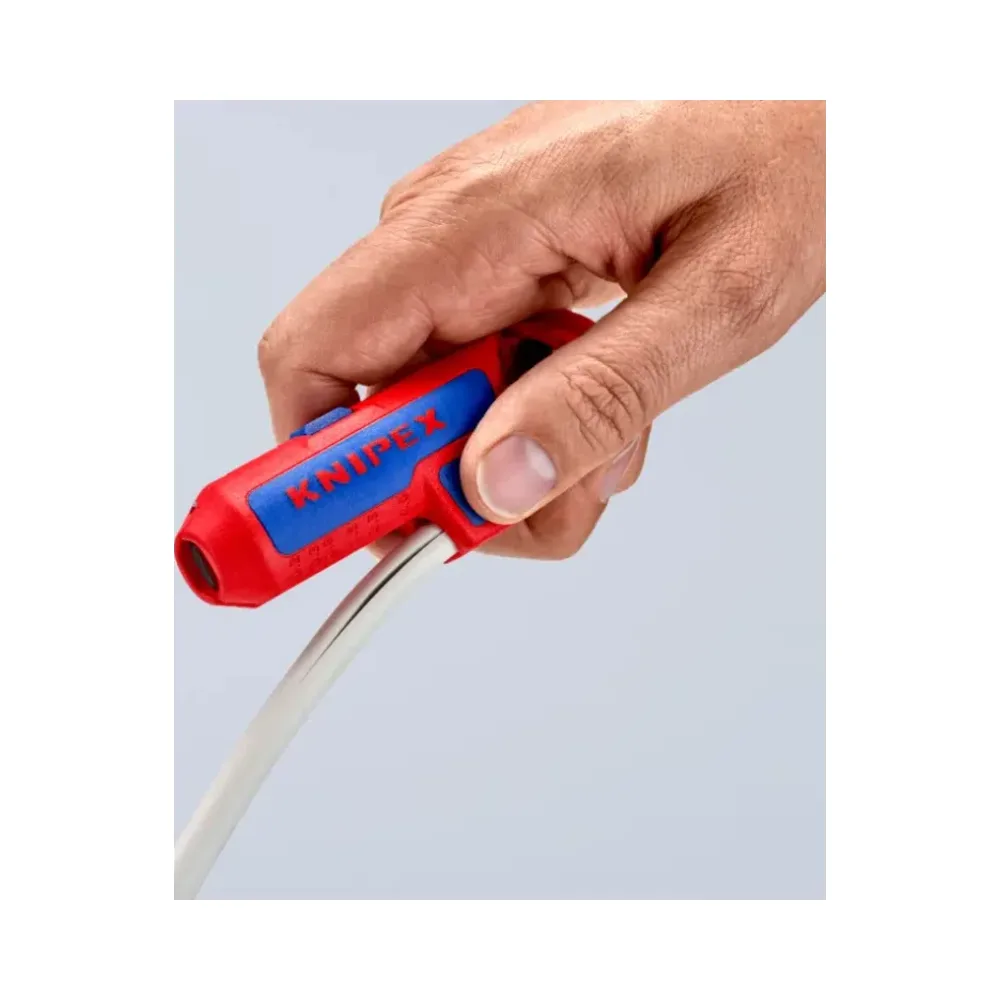

- Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath
- Conical, slimmed down tool ends for better access in confined areas
- Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²

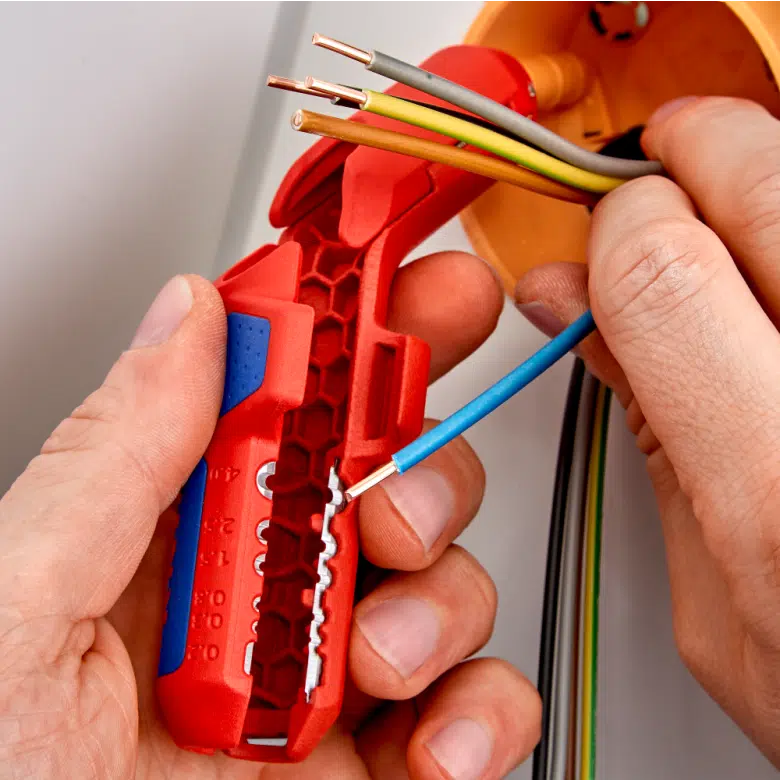

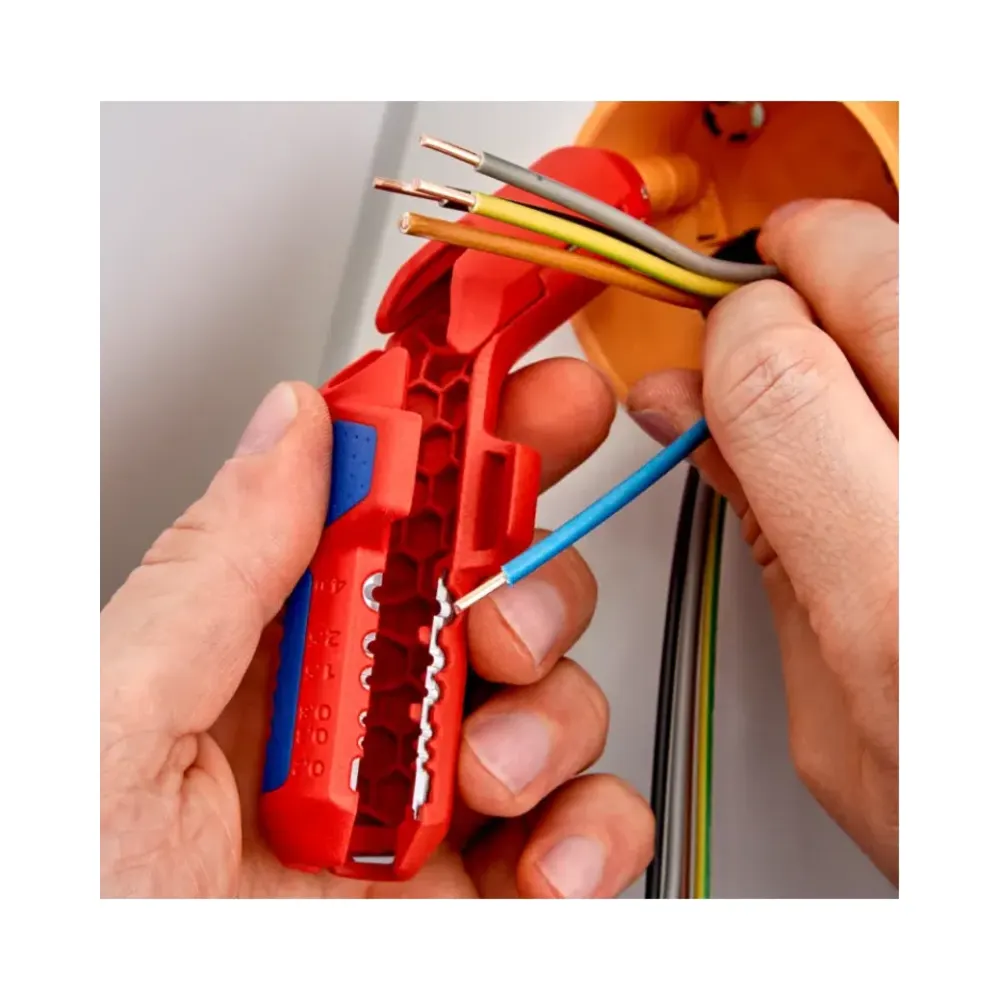

- Simplified insertion of single wires for stripping using location ridges
- With opening spring and locking device

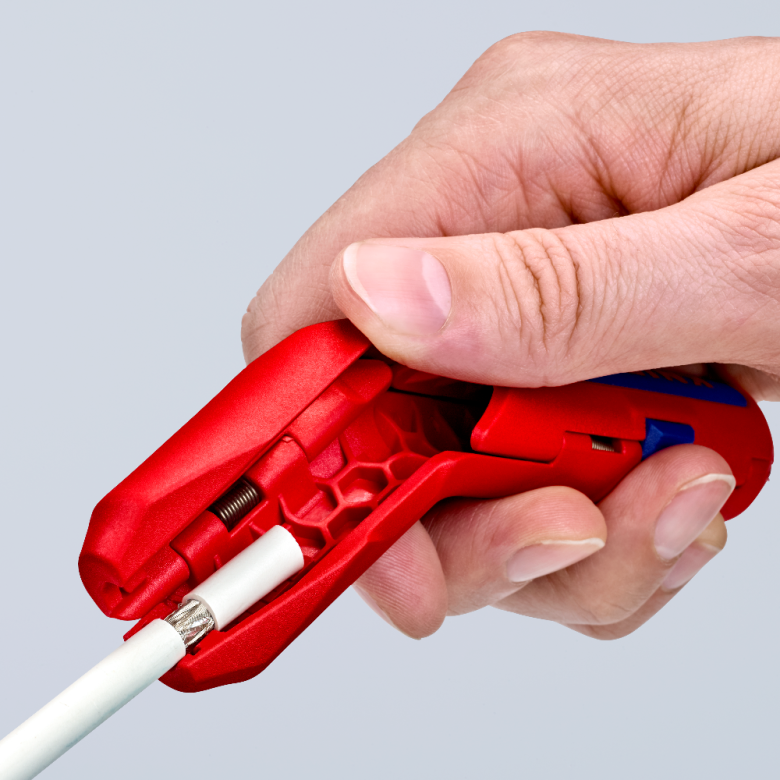

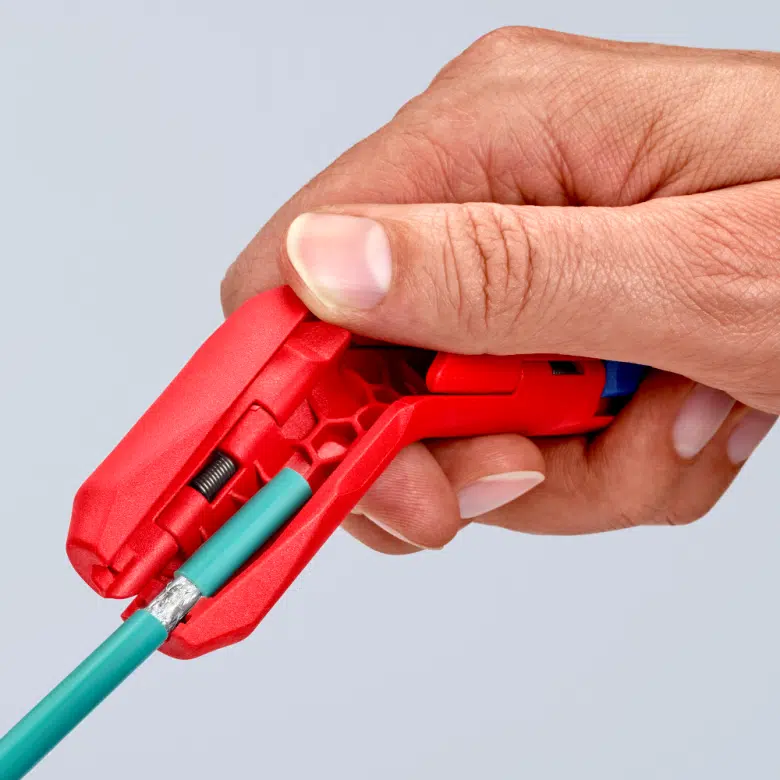

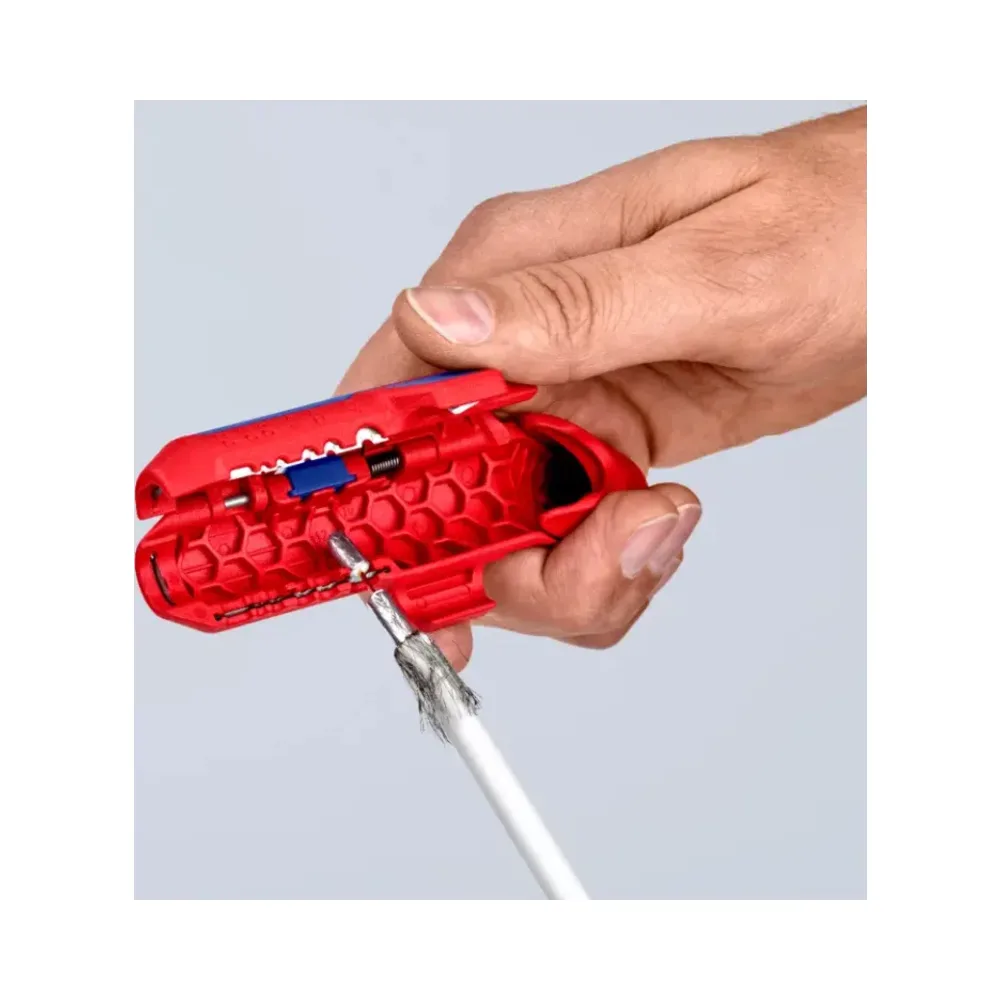

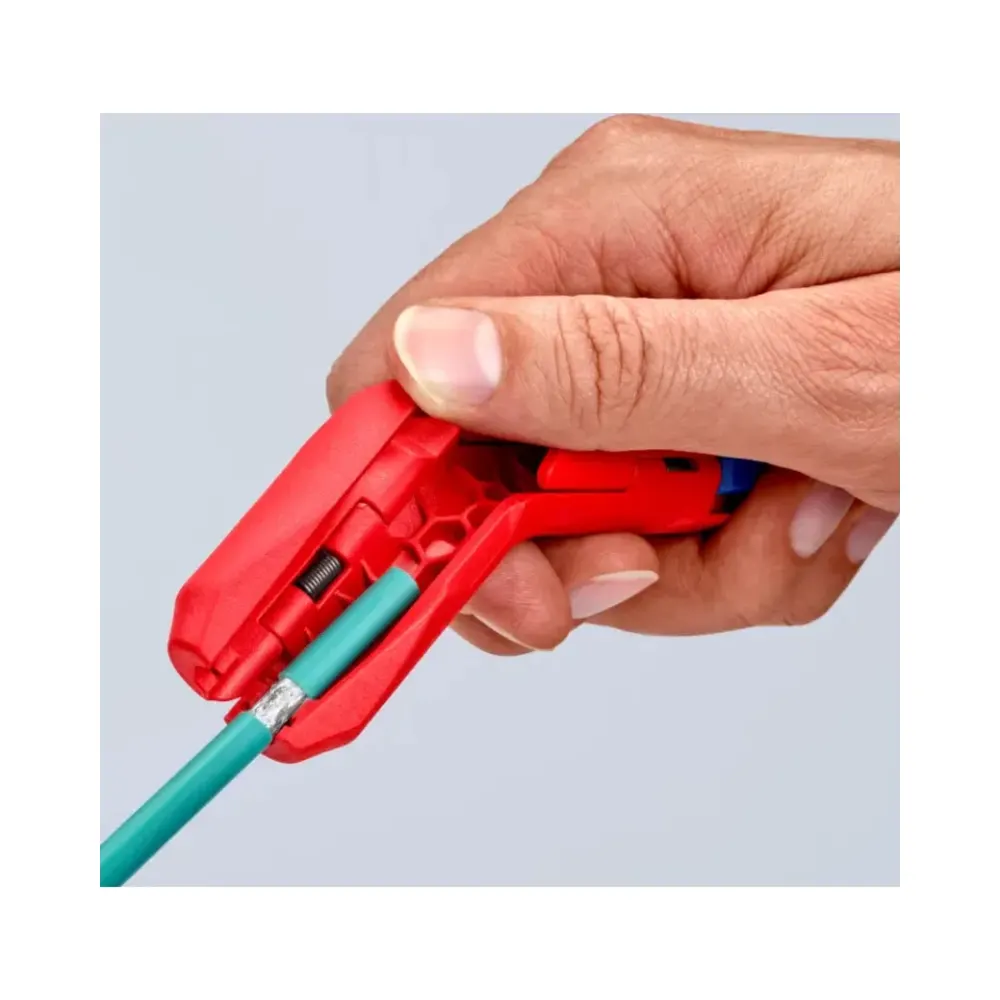

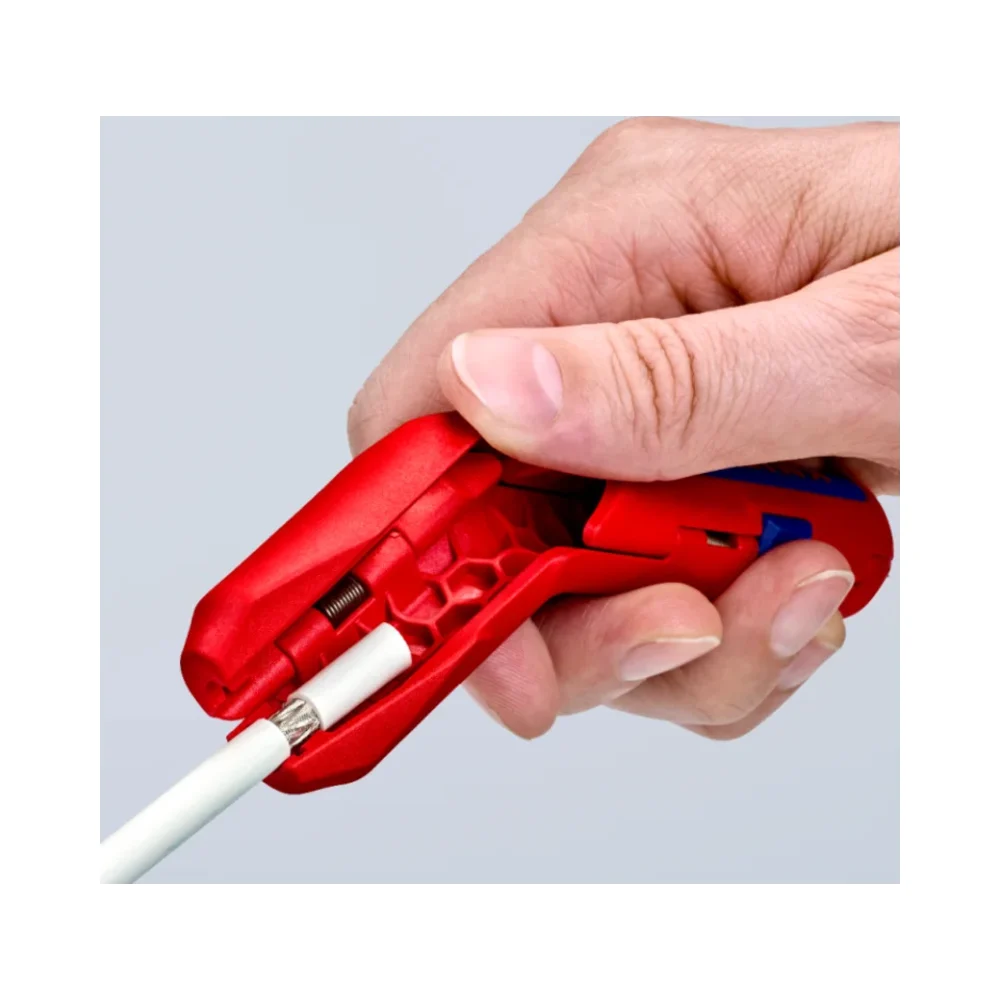

- Easy insertion of coax and data cable thanks to opening aid
- Multi-component design with a soft plastic zone for comfortable use and a secure grip
- Transport lock keeps the ErgoStrip closed

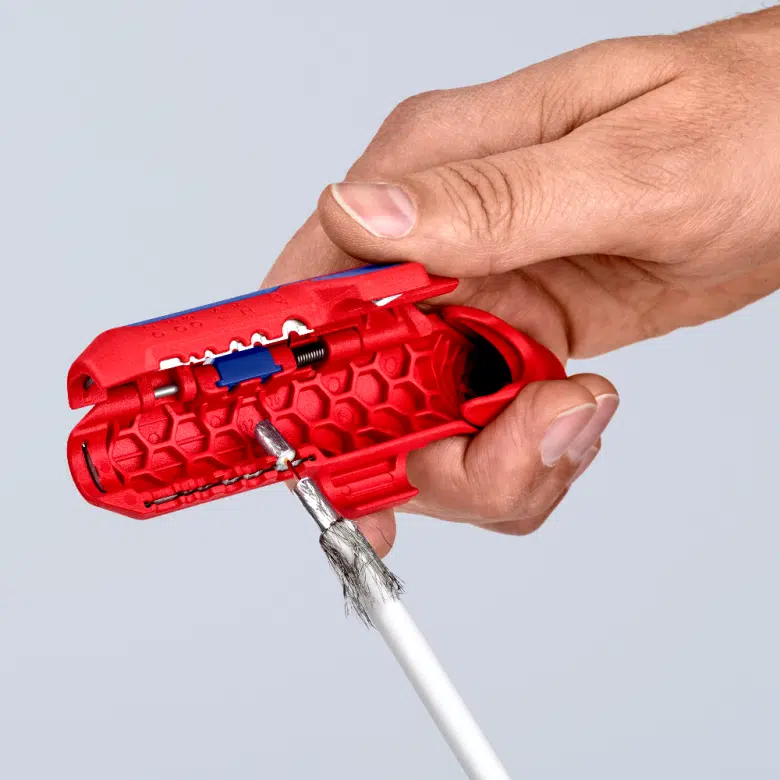

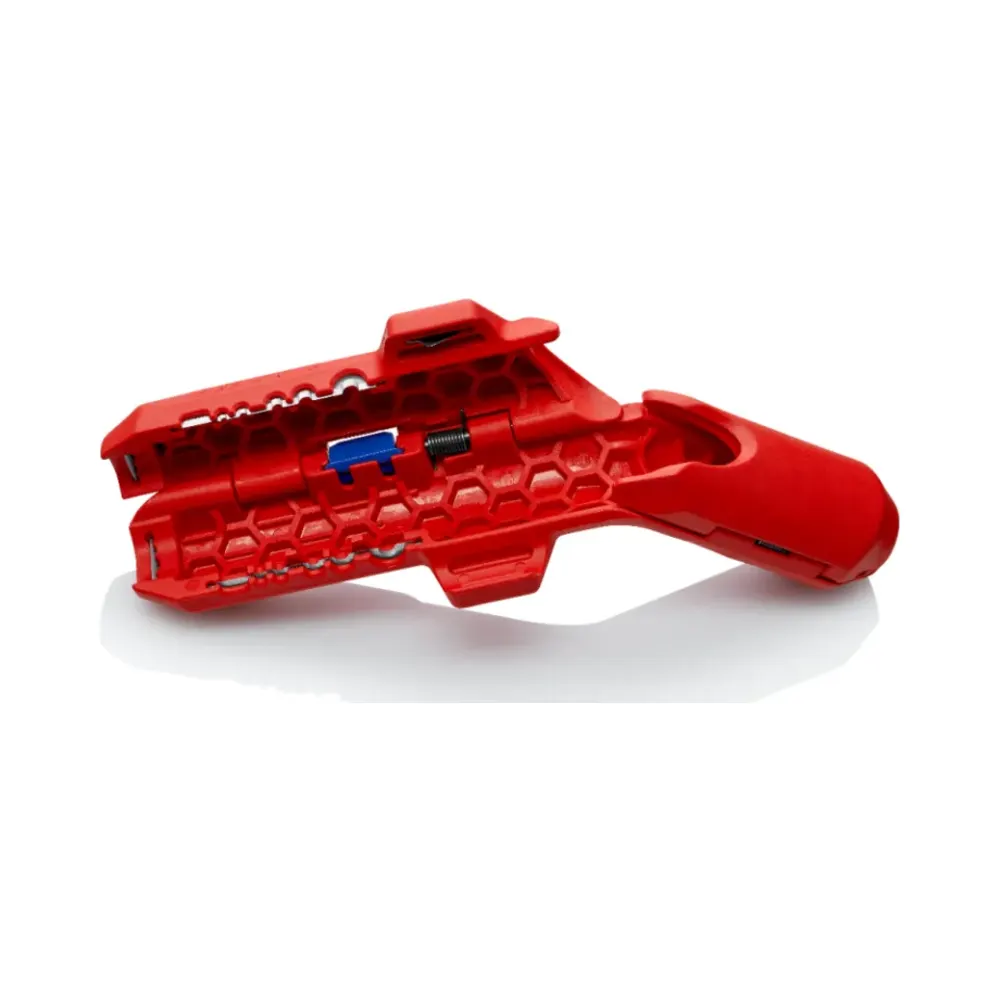

- Markings inside the tool permit accurately repeated stripping of single conductors as well as suitable dismantling and stripping coax cables
| Weight | 75 g |
|---|---|
| Dimensions | 135 x 85 x 37 mm |
| REACH compliant | Contains SVHC |

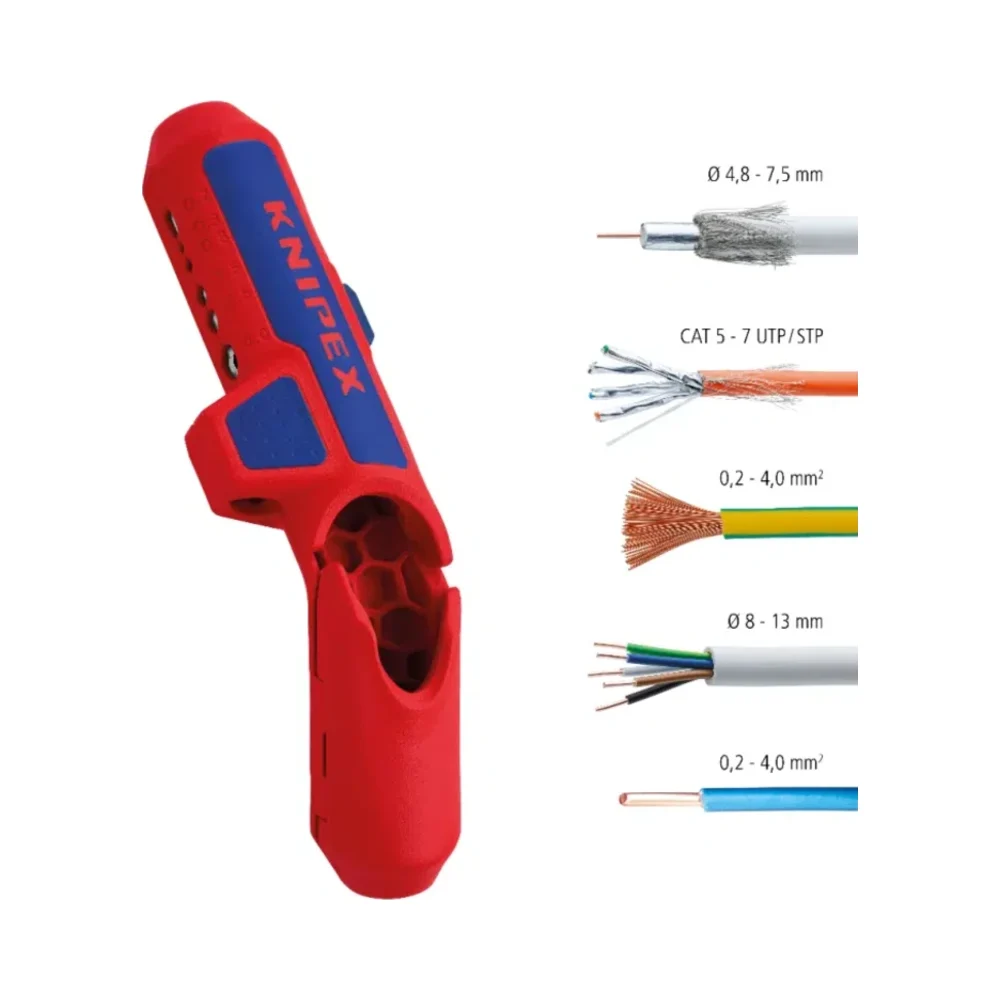

| Stripping capacities round cable (diameter) | Ø 8 – 13 mm |
| Wire stripping value for conductors and strands | 0.2 – 4 mm² |
| Stripping capacities for coax cable (diameter) | Ø 4.8 – 7.5 mm |
| Wire stripping value for data cable | CAT 5 – 7, Twisted Pair (UTP/STP) |
| Stripping capacities | Ø 8.0 — 13.0 mm |
