Description

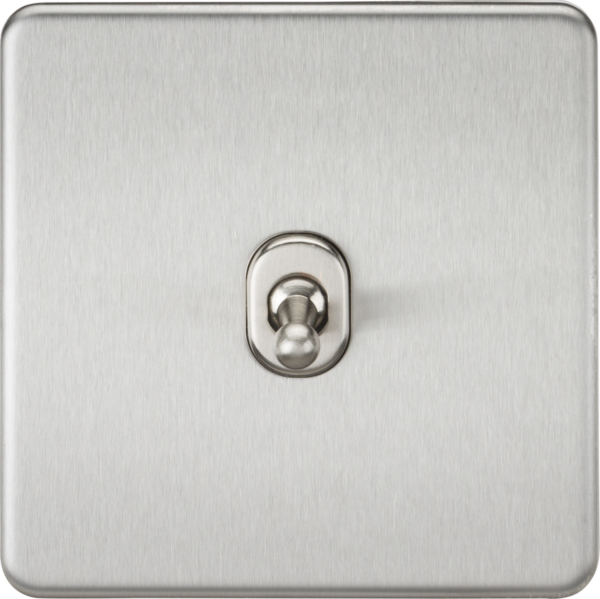

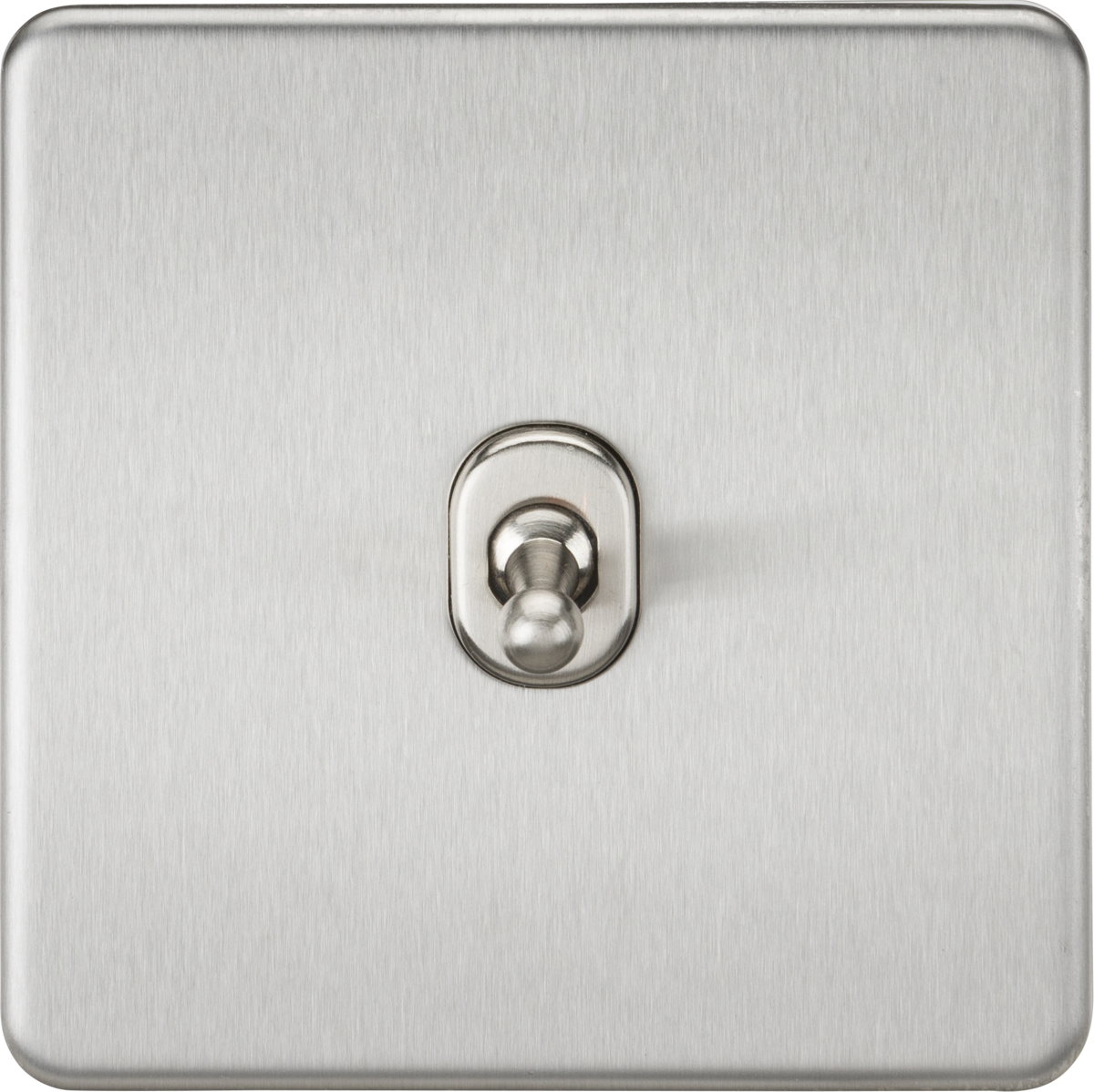

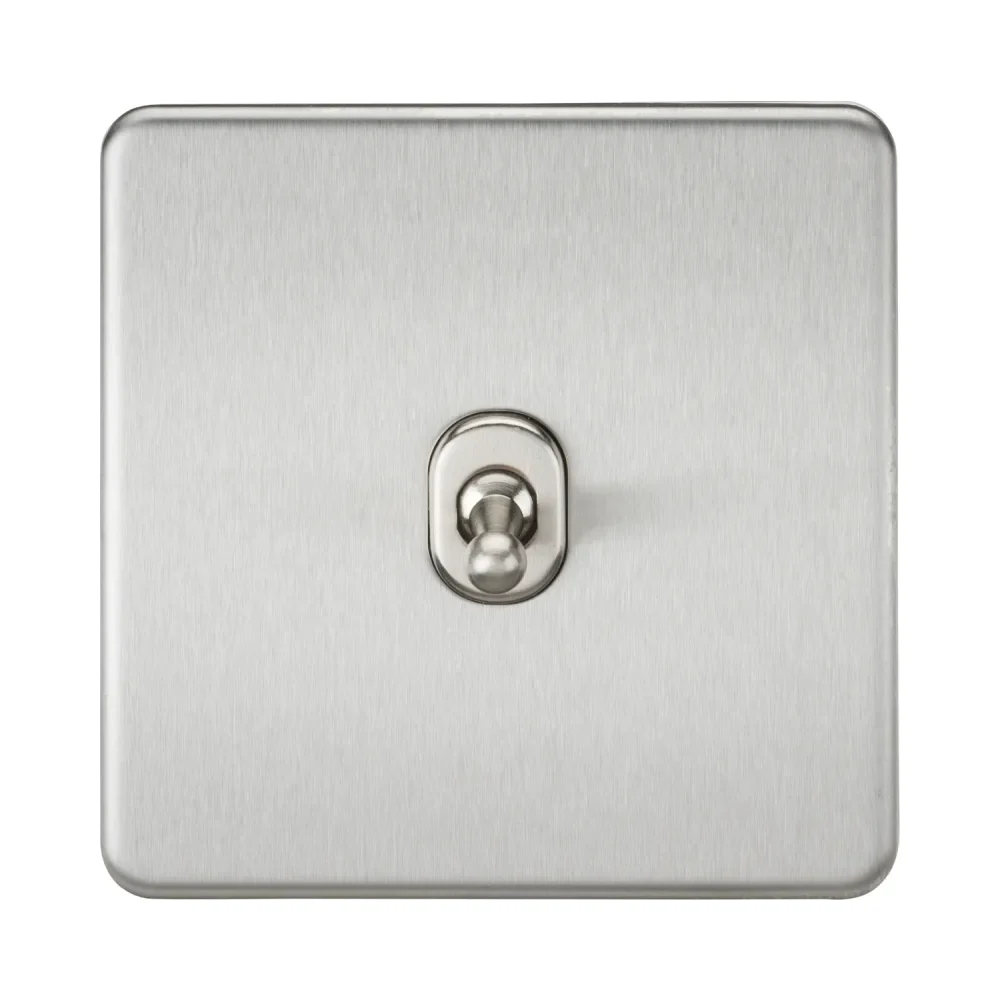

Screwless 10AX 1G Intermediate Toggle Switch – Brushed Chrome
An intermediate toggle switch is used when you have three switches controlling one light. A typical example of this is on a landing. There is a switch at the bottom of the stairs, one at top of the stairs and one at the end of the landing. On this circuit you would need the middle switch to be intermediate (i.e. the one at the top of the stairs) in order for all the switches to function properly.
- Made from high quality ultra slim, premium grade material
- Complete with integral gasket
- Compliant to all relevant British safety standards
- Supplied in retail blister with full fitting instructions
- 15 year guarantee
| CONSTRUCTION | Premium grade steel |
|---|---|
| FINISH | Brushed Chrome |
| CLASS | I |
| IP RATING | IP20 |
| PRIMARY VOLTAGE | 230V 50Hz |
| HEIGHT | 87.5 mm |
|---|---|
| WIDTH | 87.5 mm |
| PROJECTION | 4.3 mm |
| RECESSED DEPTH | 17.5 mm |
| MIN. MOUNTING BOX DEPTH | 16mm |
