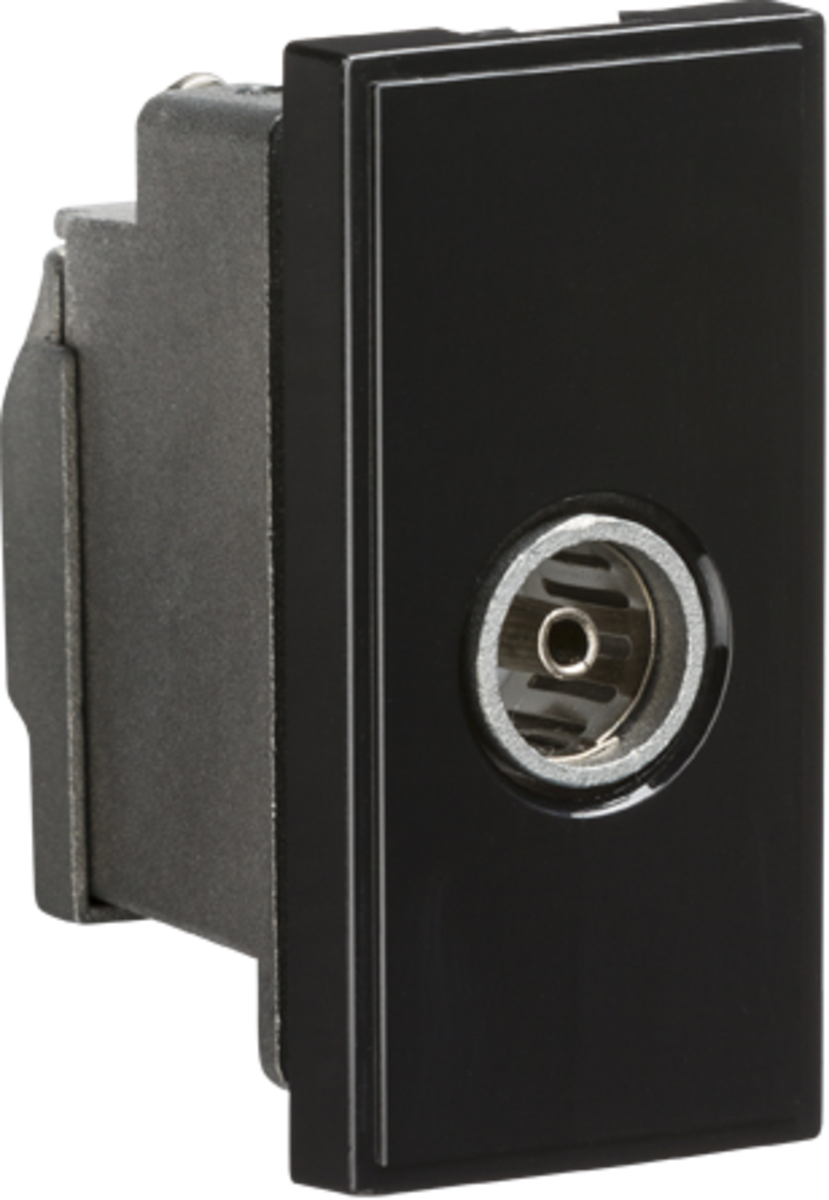

Knightsbridge Screened TV Outlet 25 x 50mm – Black
Fully screened single coaxial aerial outlet. Low loss, minimal ingress and negligible module cross talk with excellent matching and isolation.
- Fully screened to EN 50083-2
- Easy cable connections and access
- Suitable for cables with 1mm conductor (PF100, H109F, QF100, etc.)
- Min mounting depth 35mm
- Size: 25 x 50mm
CONSTRUCTION | ABS |
---|---|
FINISH | Black |
IP RATING | IP20 |
HEIGHT | 50 mm |
---|---|
WIDTH | 25 mm |
RECESSED DEPTH | 30 mm |
MIN. MOUNTING BOX DEPTH | 35mm |
TV CONNECTION TYPE | Female |
---|---|
TERMINAL | Clamp & Screw Terminal |
