Description
24A 4 Way IP68 Weatherproof Gel Box Connector
Knightsbridge JB0015

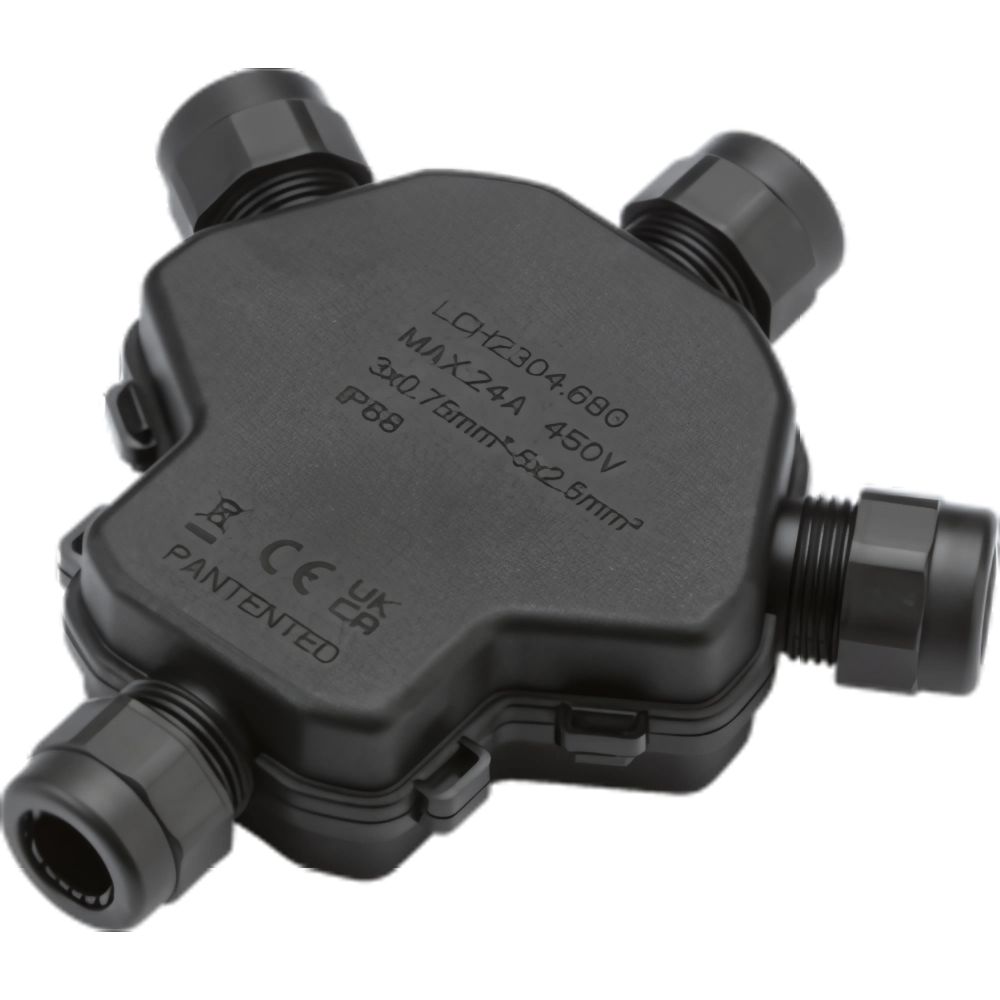

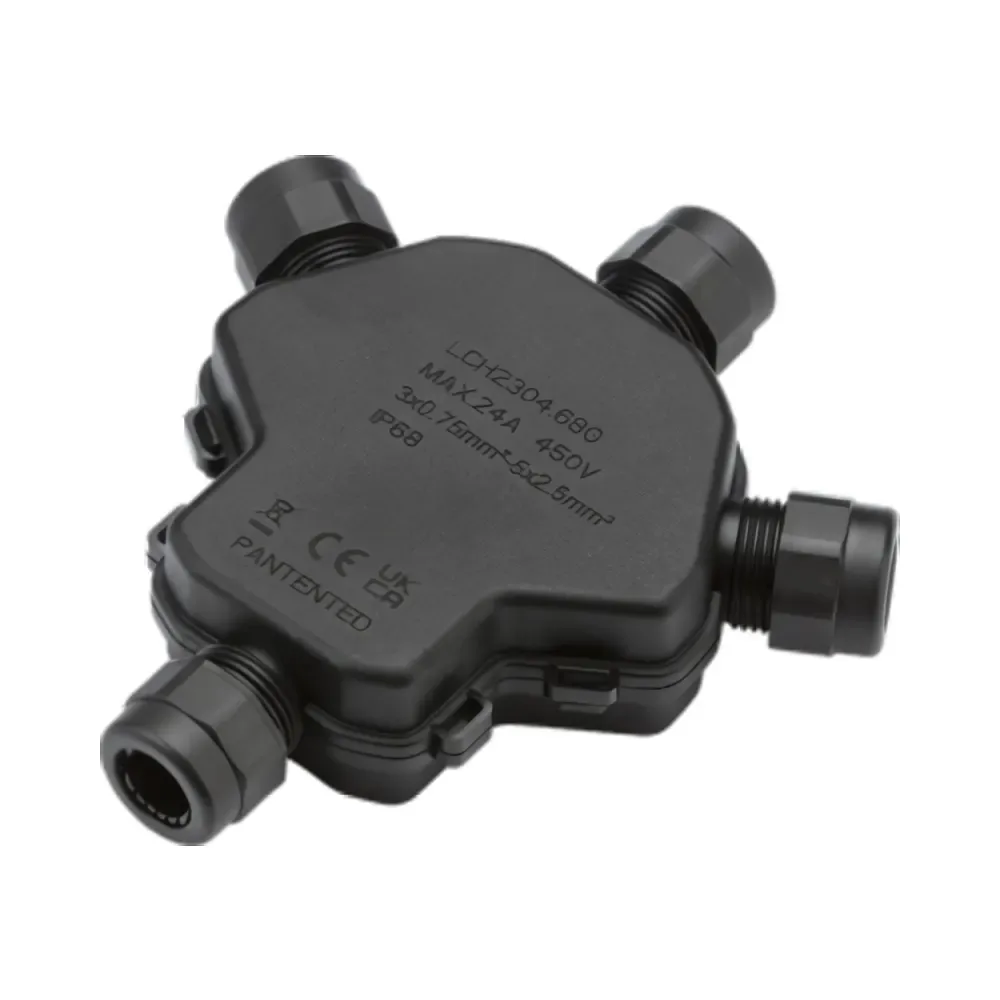

Knightsbridge JB0015 24A 4 Way IP68 Waterproof Gel Box Connector
The Waterproof Gel Box Connector from Knightsbridge offers a safe and easy way to join up to four cables. It’s rated 24A and filled with protective gel that blocks water and dust. Built from flame-retardant plastic and fitted with lever connectors, it’s quick to install without tools. Ideal for outdoor lighting or power jobs in wet and dirty areas.
Key Features – JB0015 4 Way IP68 Waterproof Gel Box Connector
- Voltage: 230–450V
- Max Load: 24A
- Terminal Capacity: 3 × 0.75mm² – 5 × 2.5mm²
- Body Material: Flame-retardant PA66 V-0
- Waterproof Rating: IP68
- Dimensions: 134mm (H) × 126mm (W) × 32mm (D)
- Colour: Black
- Cable Type: H07RN-F 3G 0.75–2.5mm²
- Terminal Type: Lever connector (included)
- Cable Gland: Compression gland (included)
- Standards: EN 61984, EN 62444
- Warranty: 2 years
- Made in: China
Technical Highlights
This 4-way connector helps you join multiple cables safely in outdoor or damp settings. The built-in gel seals around your wires to block out water, dirt, and air.
Its lever terminals let you connect wires fast. You don’t need any special tools. The compact body fits well behind decking, in gardens, or near outdoor fixtures.
What’s in the Box
- 1 × Knightsbridge JB0015 4 Way Gel Box
- 1 × Built-in lever connector
- 1 × Compression cable gland
- Instruction leaflet
Best For
- Garden and pond lighting setups
- Outdoor power splits
- Waterproof cable joins
- Damp indoor spaces like cellars or garages
Related Products
Expand your setup with other waterproof solutions like the JB0016 Inline IP68 Gel Box Connector or the JB0013 3 Pole Inline Connector. For plug-and-socket applications, consider the JB0018 Weatherproof Hub, or for 3-way connections, try the JB0014 Gel Box.
✅ Optional Add-On
Use with flexible conduit for extra physical protection if needed.
Summary – 4 Way IP68 Waterproof Gel Box Connector
The Knightsbridge JB0015 24A Weatherproof Gel Box Connector is a strong, simple solution for outdoor cable splitting. With gel sealing and tool-free connectors, it keeps joins safe, dry, and easy to make.
