Description

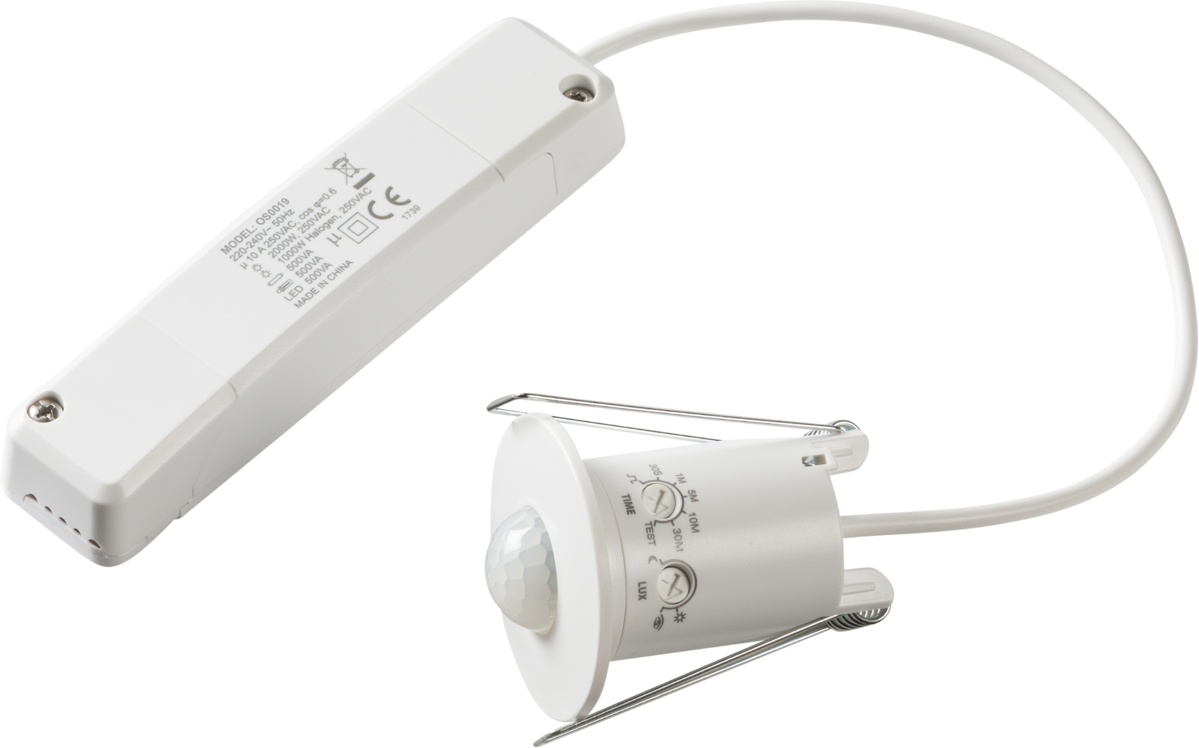

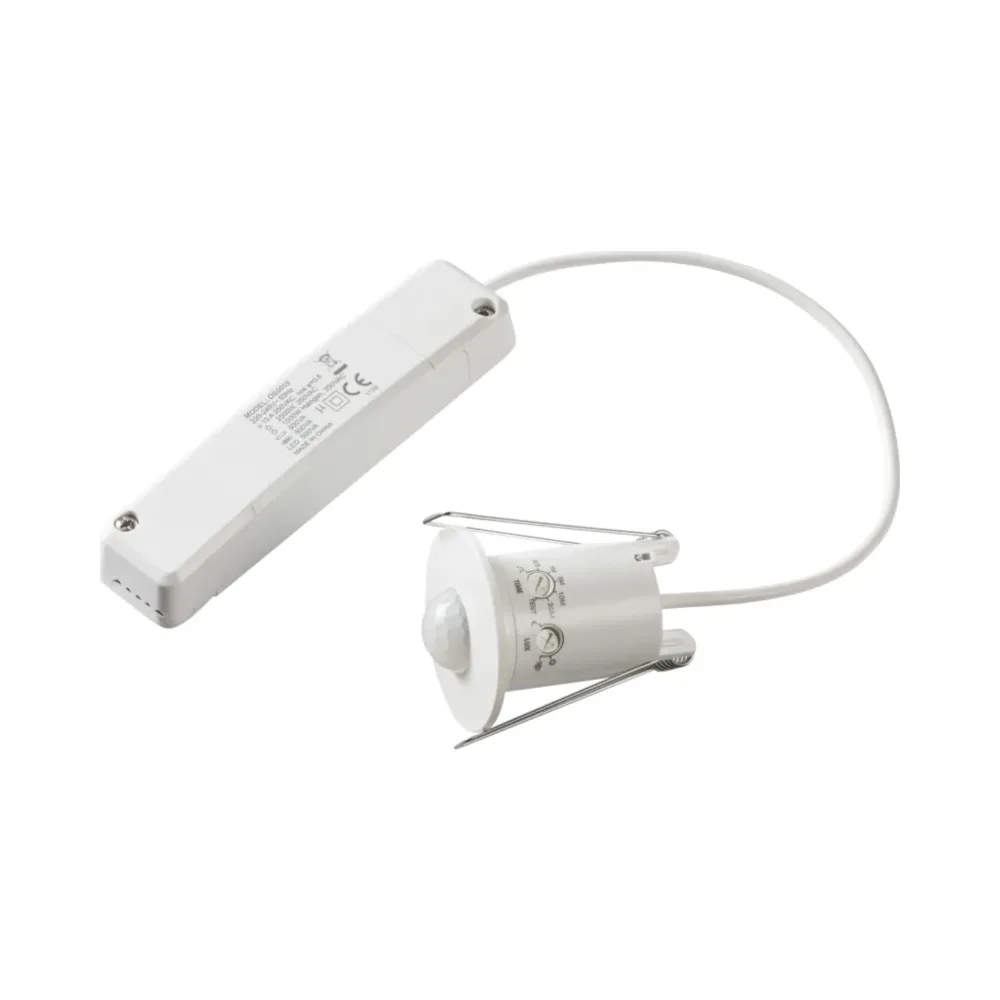

Knightsbridge IP20 Mini 360° PIR Sensor with Power Module – Recess Mounting
Mini professional PIR ceiling sensor with power module.
- IP20 rated for indoor use only
- Recess fitting
- Cut out: 38mm
- Separate power module for easy installation
- 360° field of detection
- 8m range
- Adjustable Lux
- Adjustable time: 30 seconds to 30 minutes
- Can be wired in parallel
- Switching capacity: Max. 2000W Incandescent / Max. 200W LED
- Certified to EN 60669-2-1, EN 60669-1, EN 55015, EN 61547, EN 61000
| NET WEIGHT | 0.103 kg |
|---|---|
| FINISH | White |
| DIMENSIONS | Diameter – 52 mm Overall Height – 68 mm Recessed Depth – 55 mm |
| CUT OUT | Diameter – 38 mm |
| CONSTRUCTION | Polycarbonate |
| CLASS | II |
| IP RATING | IP20 |
| IC RATED | No |
| OPERATING TEMPERATURE | -20 to 40°C |
| INPUT VOLTAGE | 230V 50Hz |
| MAX LOAD | 2000W Incandescent / 200W LED |
| TERMINAL CAPACITY | 2×1.0 mm² or 2×1.5 mm² |
| FUNCTION | Adjustable Lux, Adjustable Time |
| SENSOR TYPE | PIR |
| SENSOR OVERRIDE | Yes |
| SENSOR DETECTION ANGLE | 360° |
| OPTIMUM DETECTION RANGE | 8 m @ 2.5 m height |
| SENSOR DURATION | 30 seconds – 30 minutes |
| SENSOR LUX SETTINGS | 5 – 1000 lux |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 606669-1 BS EN 60669-2-1 |
| ORIGIN OF MANUFACTURE | China |
| WARRANTY | 1 Year |
