Description

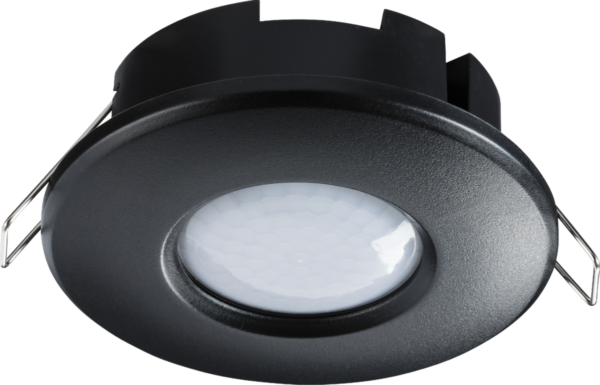

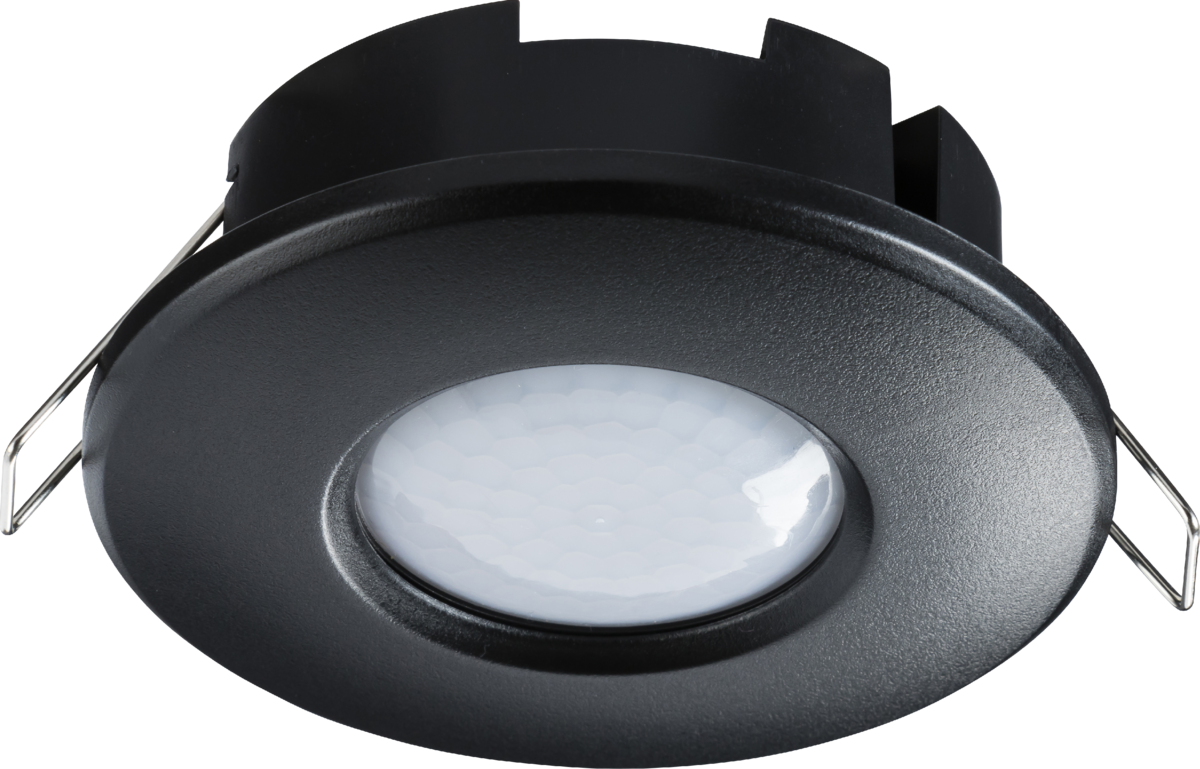

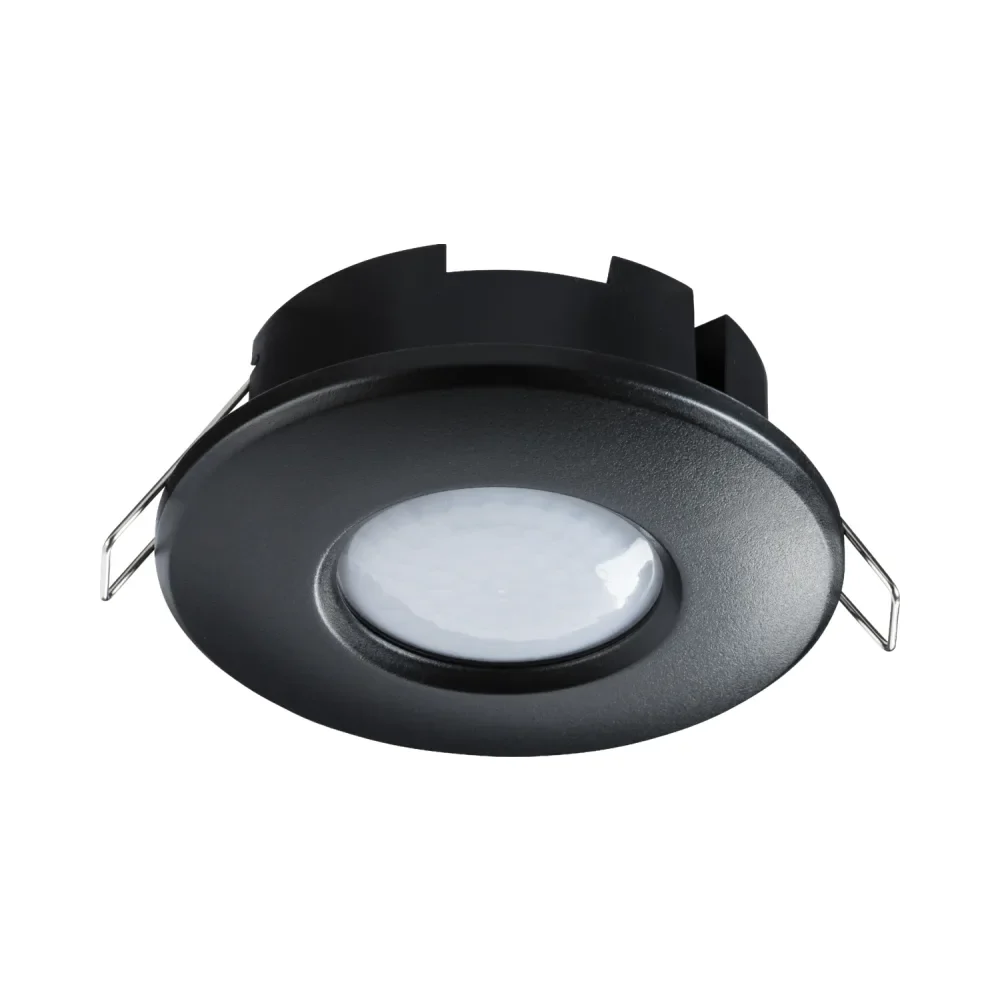

Knightsbridge IP20 360° 2 in 1 PIR Sensor – Surface or Recess Mounting – Black
2 in 1 PIR ceiling sensor.
- IP20 rated for indoor use only
- Recess fitting [Cut out: 73mm] or surface mount (Projection: 36mm)
- Pre-fitted with ceiling springs for easy recess install or simply remove and use with surface box included
- 360° field of detection
- 8m range
- Adjustable Lux
- Adjustable time: 10 seconds to 7 minutes
- Switching capacity: Max. 2000W Incandescent / Max. 1000W LED
| FINISH | Black |
|---|---|
| DIMENSIONS | Diameter – 93 mm Projection – 36 mm Recessed Depth – 27.9 mm |
| CUT-OUT | Diameter – 73 mm |
| CONSTRUCTION | Polycarbonate |
| CLASS | II |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SENSOR TYPE | PIR |
| SENSOR OVERRIDE | No |
| SENSOR DETECTION ANGLE | 360° |
| OPTIMUM DETECTION RANGE | 8 |
| SENSOR DURATION | 10 seconds – 7 minutes |
| SENSOR LUX SETTINGS | <10 lux – 2000 Lux |
| WARRANTY | 2year(s) |
