Description

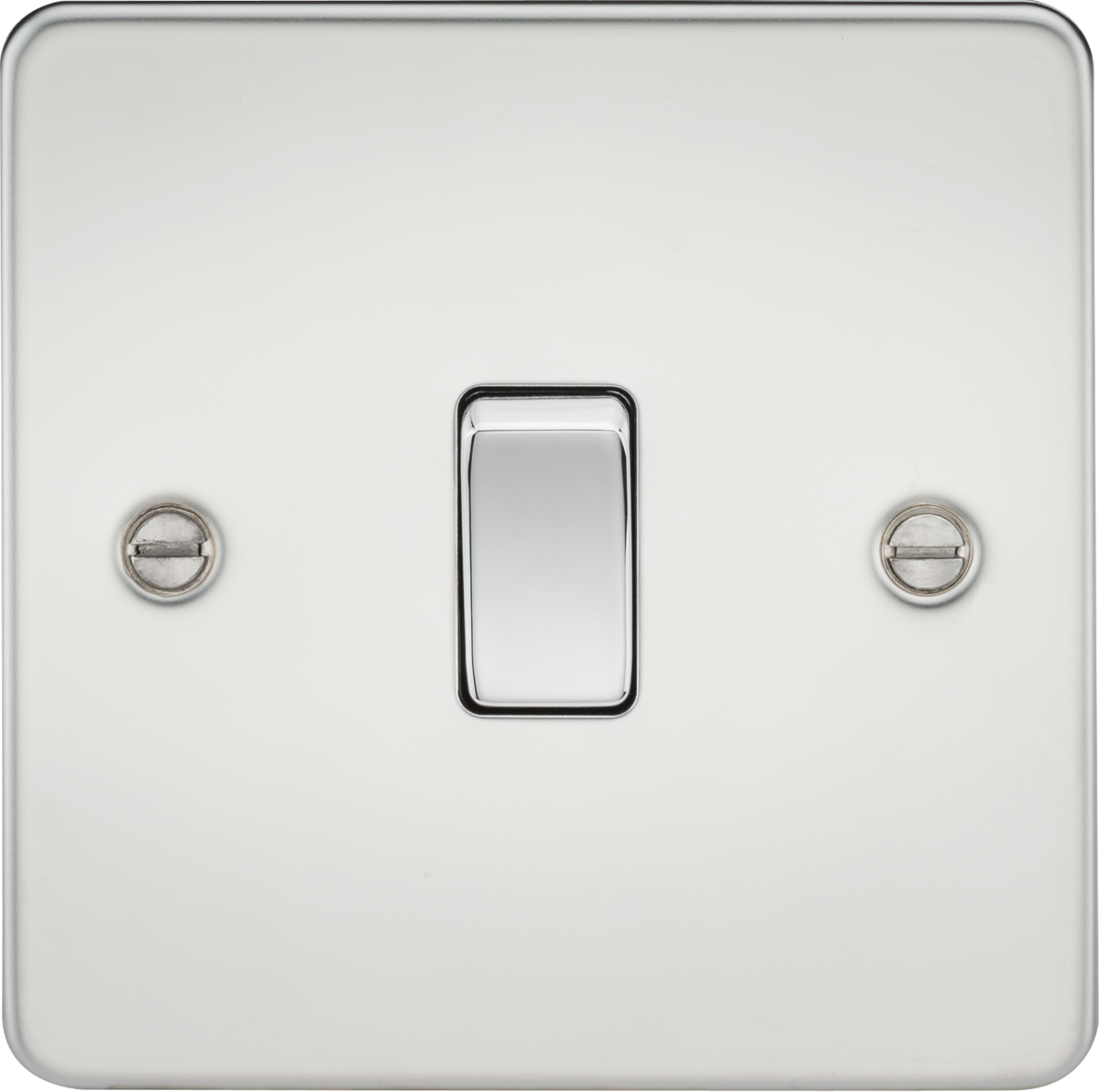

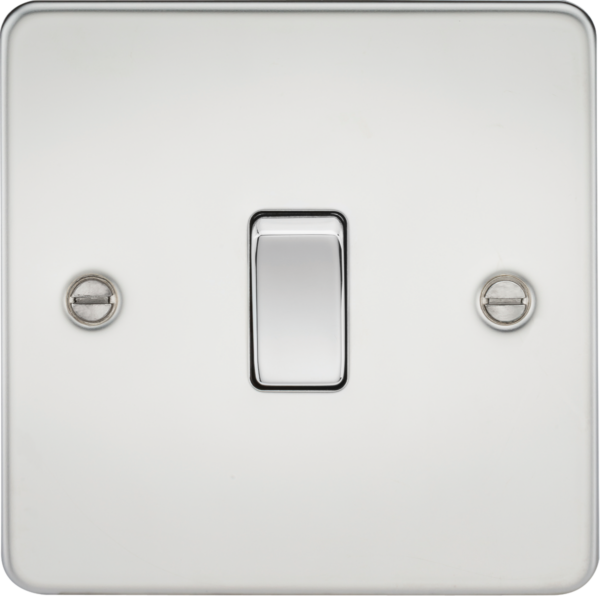

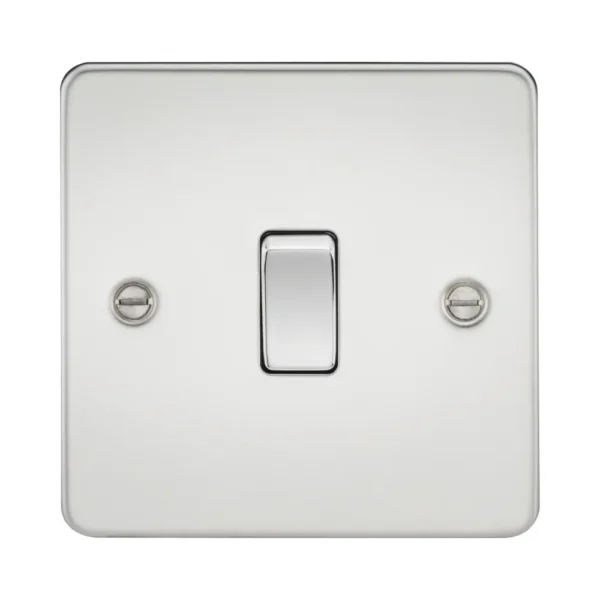

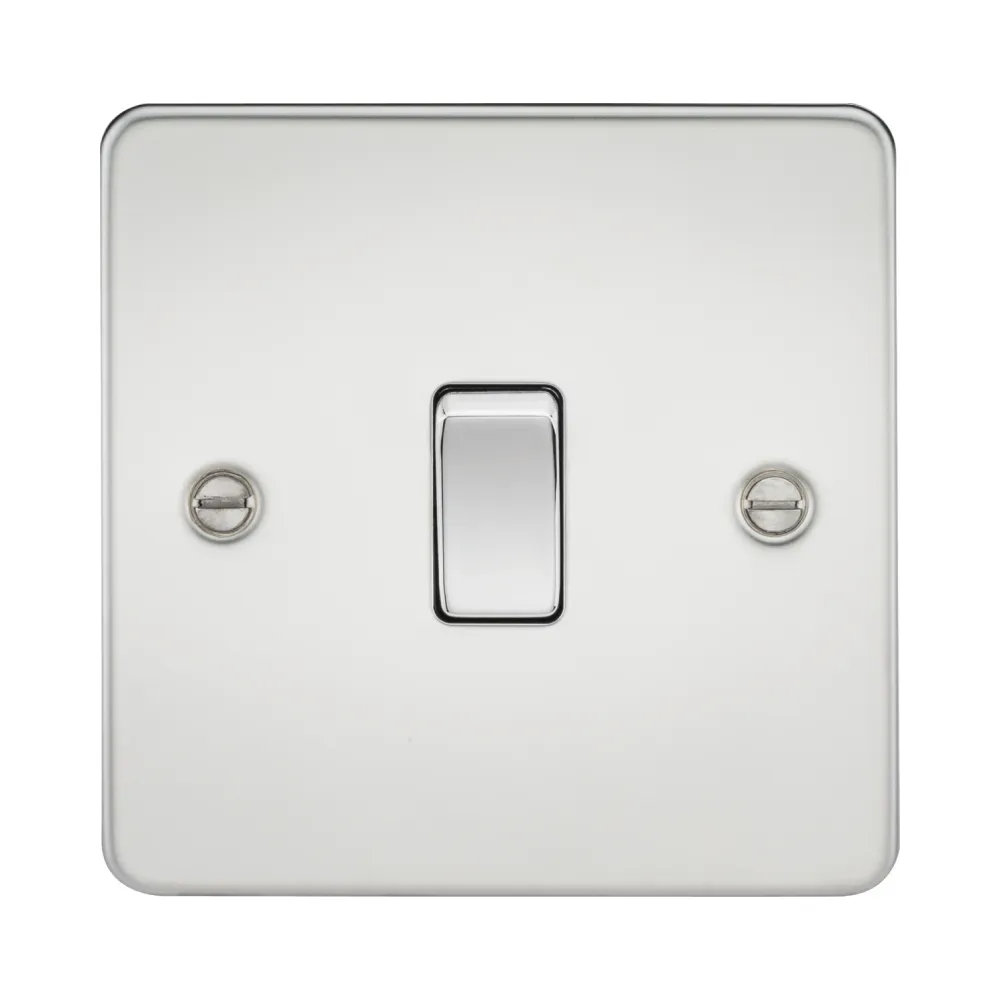

Knightsbridge Flat Plate 10AX 1G Intermediate Switch – Polished Chrome
An intermediate switch is used when you have three switches controlling one light. A typical example of this is on a landing. There is a switch at the bottom of the stairs, one at top of the stairs and one at the end of the landing. On this circuit you would need the middle switch to be intermediate (i.e. the one at the top of the stairs) in order for all the switches to function properly. Flat Plate low profile metal design with matching metal rocker.
- 10AX rated
- Ultra low profile design with built in gasket
- Certified to EN 60669-1
- Minimum mounting box 16mm
| CONSTRUCTION | Premium grade steel |
|---|---|
| FINISH | Polished Chrome |
| CLASS | I |
| IP RATING | IP20 |
| PRIMARY VOLTAGE | 230V 50Hz |
| HEIGHT | 87.5 mm |
|---|---|
| WIDTH | 87.5 mm |
| PROJECTION | 2.5 mm |
| MIN. MOUNTING BOX DEPTH | 16mm |
