Description
12-In-1 Multifunction Tester and ACCES Earth Spike Kit
Comprehensive Electrical Testing Kit for TN, TT & Independent Earthing Systems – Kewtech KT66ET Kit With KT66DL

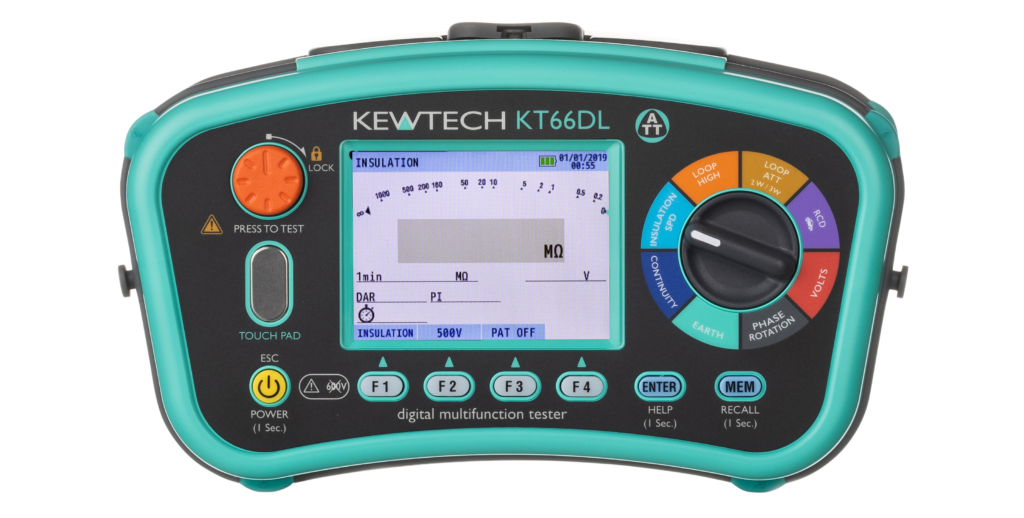

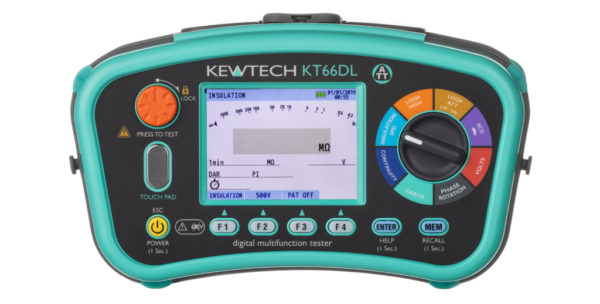

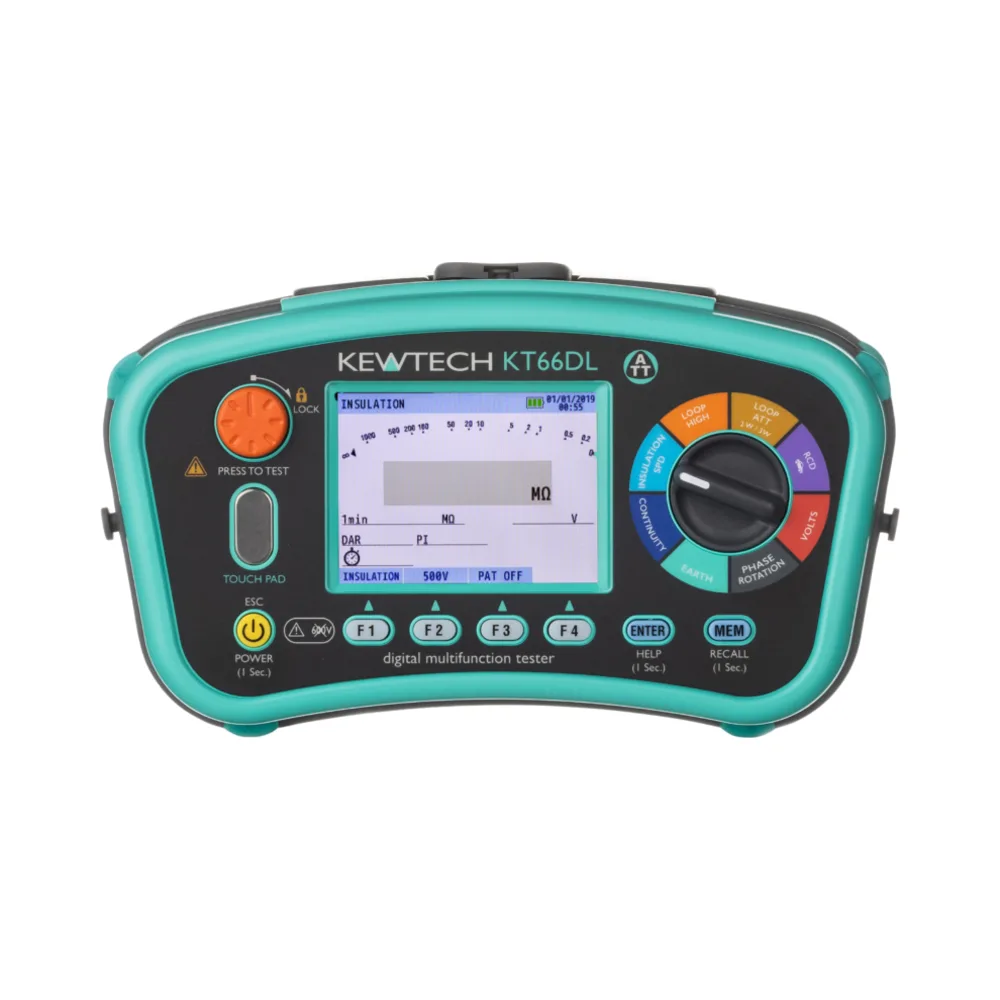

Kewtech KT66ET Kit with KT66DL

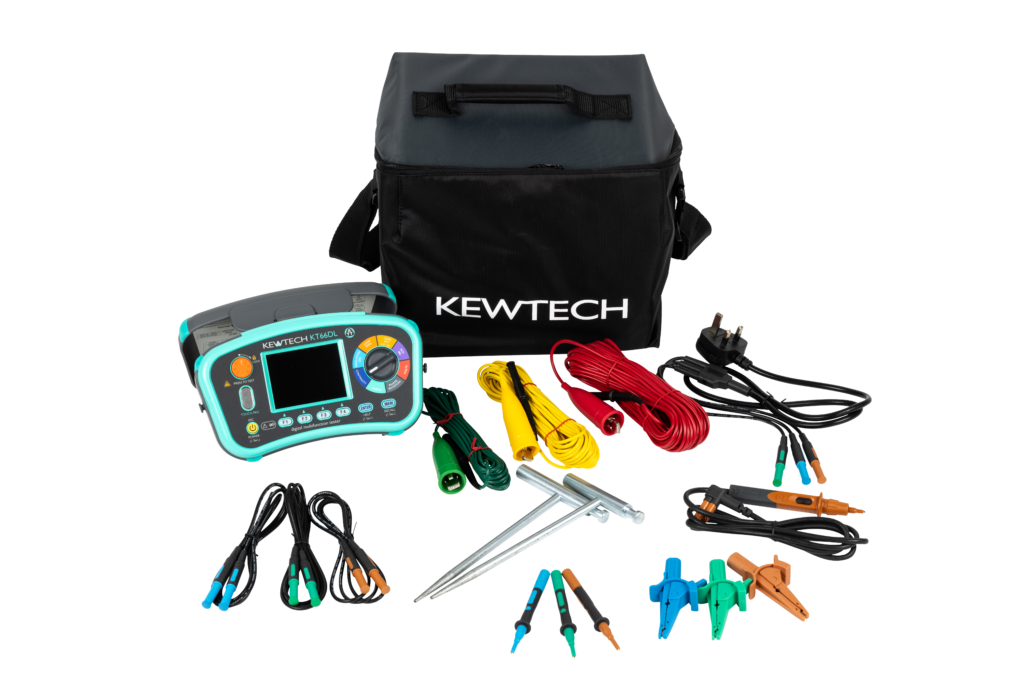

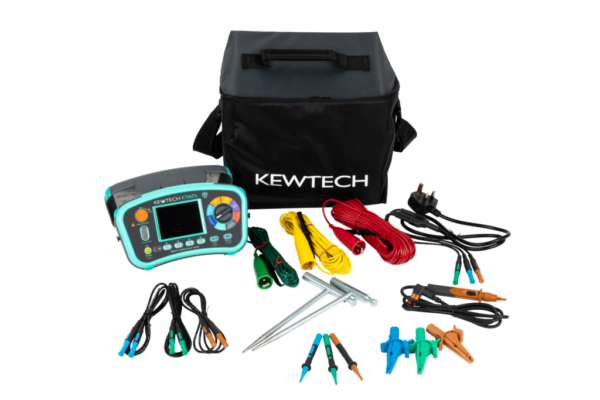

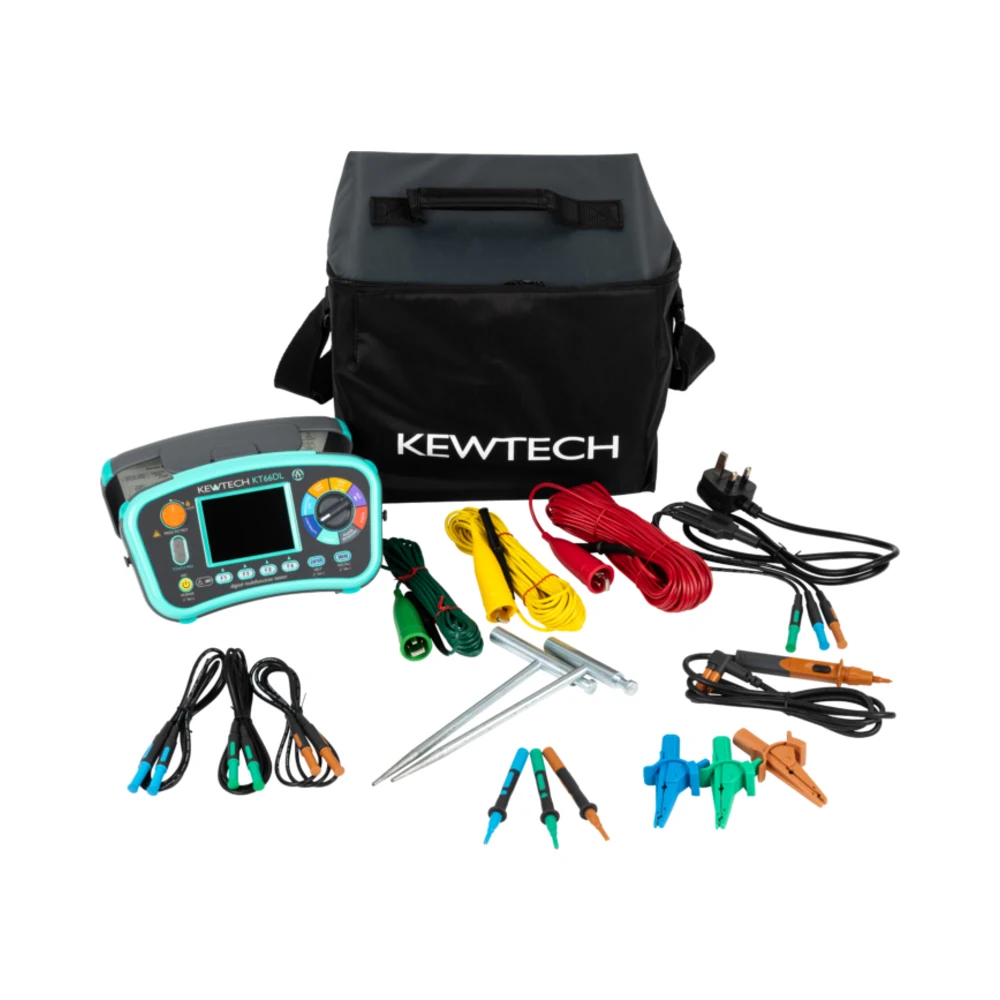

The Kewtech KT66ET Kit combines the powerful KT66DL 12-in-1 Multifunction Tester with the ACCES Earth Spike Kit, offering cost-effective and accurate testing for TN, TT, and independent earthing systems. This all-in-one solution is designed for professional electricians, ensuring compliance with the latest 18th Edition regulations while delivering high precision and efficiency.

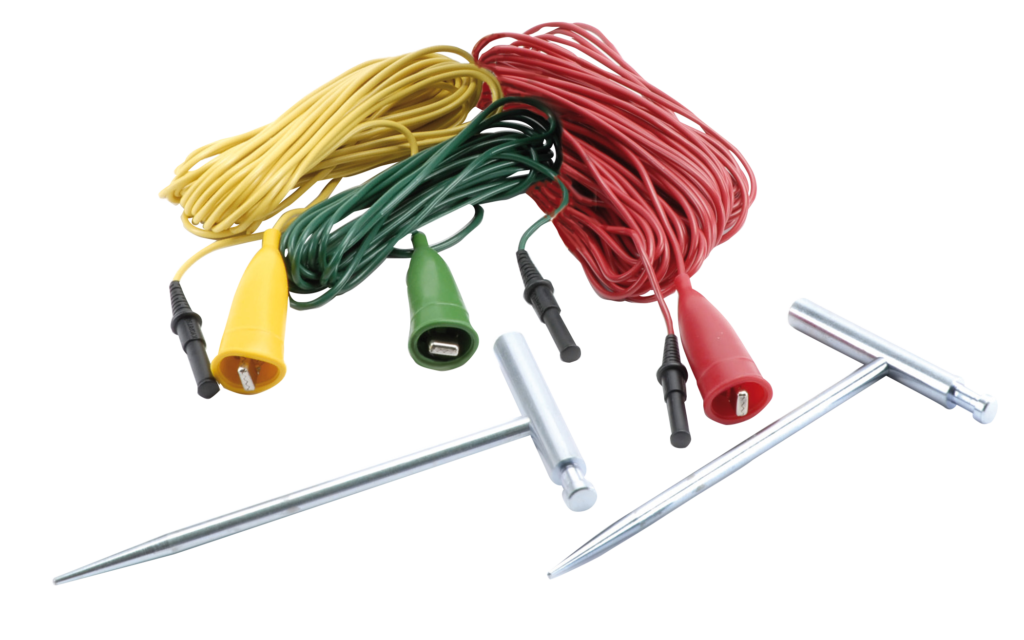

The ACCES Earth Spike Kit conveniently fits inside the KT66DL carry case, keeping all tools organised and ready for use. Additionally, the KEW REPORT software allows for detailed data recording and reporting, streamlining electrical inspection and testing.
Key Benefits
- 12-in-1 Multifunction Testing – Covers loop, RCD, insulation, continuity, earth resistance, and more
- Large Colour Dot Matrix Display – Provides clear and intuitive test readings
- User-Friendly Interface – Single rotary dial with four function keys for quick operation
- Advanced Earth Resistance Testing – Includes ACCES earth spike kit for comprehensive ground testing
- Simultaneous Voltage Display – Shows L-N, L-E, and N-E voltages in real time (TRMS)
- Max Zs Tables – Covers current and previous wiring regulations
- Comprehensive RCD Testing – Supports Type AC, ACS, A, AS, F, B, BS & EV
- Multiple Test Start Modes – Includes single press, continuous testing, and remote probe activation
- Advanced Memory System – Assigns distribution board, circuit number, and test type (Zs/Ze)
- Selectable Touch Voltage Limits – Enhances safety during live testing
- Soft Padded Neck Strap – Ensures comfort during extended use
- Full Test Kit Included – Comes with mains lead, DB leads, remote probe, and software
- EVSE Testing Compatibility – Works with KEWEVSE adapter (optional) for EV charge point testing
Key Features
- Loop Testing Options:
- High Current: 25A (0.001Ω resolution) & 6A (0.01Ω resolution)
- Low Current: 3-wire & 2-wire testing
- EVSE Loop Option – Suitable for electric vehicle charging points
- 55V Loop Test Capability – Ideal for 110V CTE systems
- RCD Testing:
- Tests Type AC, ACS, A, AS, F, B, BS & EV RCDs
- EVSE 6mA DC Ramp & Tripping Time Test
- Insulation Testing:
- Includes Polarisation Index (PI) Function
- Continuity Testing:
- 200mA & 15mA test options
- Surge Protection Device (SPD) Test – Ensures compliance with 18th Edition regulations
- Earth Resistance Testing:
- 3-wire & 2-wire options for ground testing
- Phase Rotation Test – Confirms correct phase sequence
- True RMS Voltage Measurement (2-600V) – Ensures accurate readings across all mains voltages
- PAT Functionality – Allows portable appliance testing with download capability
Technical Specifications of the Kewtech KT66ET Kit With KT66DL
- Model: KT66DL with ACCES Earth Spike Kit
- Display: Colour dot matrix screen
- Voltage Measurement: True RMS 2-600V
- Loop Testing: High & low current options
- RCD Testing: Type AC, A, F, B, EVSE & more
- Insulation Testing: With Polarisation Index function
- Continuity Test: 15mA & 200mA options
- SPD Test: Yes
- Earth Resistance: 3-wire & 2-wire methods
- Phase Rotation Test: Yes
- PAT Testing: Downloadable test results
- Power Supply: Battery-operated (rechargeable battery option available)
- Software Compatibility: KEW REPORT software for data management
Applications
- Electrical Installation Testing – Ensures compliance with 18th Edition regulations
- TN, TT & Independent Earthing Systems – Ideal for earth resistance testing
- RCD & Loop Testing – Essential for residential, commercial, and industrial electrical systems
- EVSE Charge Point Testing – Compatible with KEWEVSE adapter for EV charger inspections
- PAT Testing & Compliance Inspections – Includes portable appliance testing features
Why Choose the Kewtech KT66ET Kit?
- Comprehensive 12-in-1 Testing Solution – Reduces the need for multiple instruments
- Advanced Earth Resistance Testing – Includes ACCES earth spike kit
- User-Friendly Interface & Large Display – Enhances testing speed and efficiency
- EVSE-Compatible – Future-proofs your toolkit for electric vehicle infrastructure testing
- Reliable & Cost-Effective – Provides high-precision testing at an affordable price
- Kewtech Quality & UK Support – Trusted by electrical professionals across the UK
Summary
The Kewtech KT66ET Kit combines the KT66DL 12-in-1 Multifunction Tester with the ACCES Earth Spike Kit, offering comprehensive electrical testing for TN, TT, and independent earthing systems. Featuring advanced loop, RCD, insulation, continuity, and SPD testing, plus EVSE compatibility, it ensures full compliance with 18th Edition regulations. With a colour dot matrix display, user-friendly interface, and downloadable memory, this professional-grade tester is a must-have for electricians and inspectors.
