Description

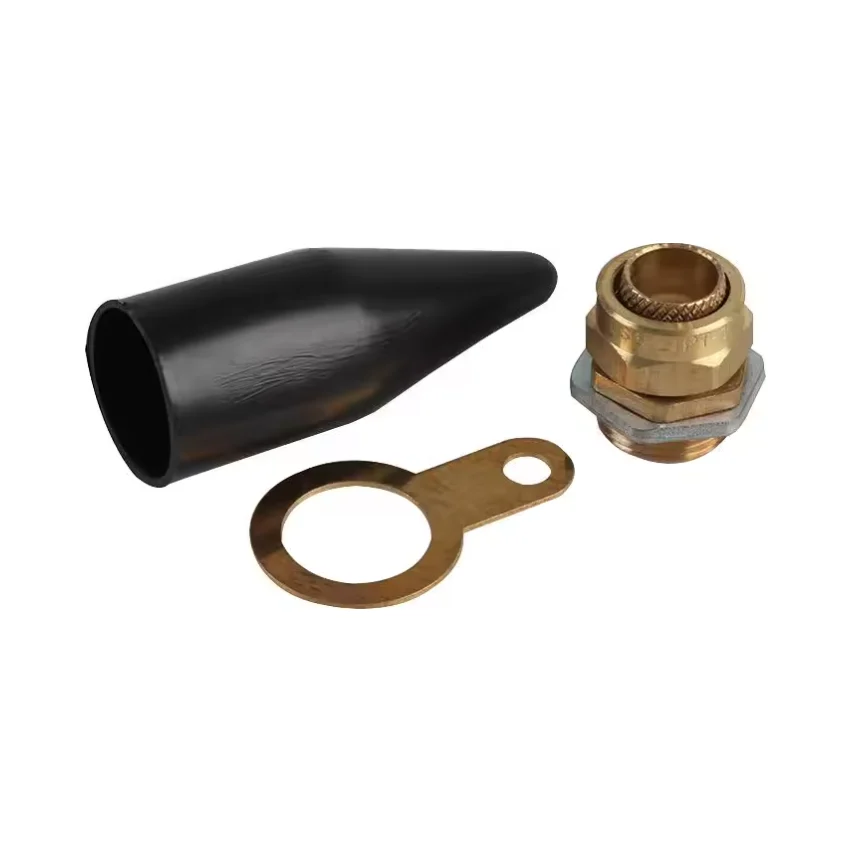

BW50-PK Internal SWA Cable Gland 50 – Pack of 1
The BW50-PK Internal SWA Cable Gland 50 – Pack of 1 is a high-quality brass gland tailored for Steel Wire Armoured (SWA) cables (H694-XL). This gland provides secure clamping, ensuring both electrical continuity and mechanical retention of the cable’s armour wire. Ideal for indoor applications, it is specifically designed for environments where a waterproof seal is not required.
Key Features of BW50-PK Internal SWA Cable Gland
- High-Quality Brass Construction: Offers excellent durability and resistance to corrosion for reliable, long-term performance in indoor environments.
- Secure Clamping: Provides robust armour wire clamping for electrical continuity and mechanical retention.
- Indoor Use: Designed specifically for indoor applications where a waterproof seal is unnecessary.
- Versatile Application: Compatible with a variety of SWA cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sqmm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
| 120 | 40 | – | – | – |
| 150 | 40 | – | – | – |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The BW50-PK Internal SWA Cable Gland 50 – Pack of 1 is an excellent solution for secure and efficient SWA cable terminations in indoor environments. With its robust brass construction and secure clamping capabilities, it is a reliable choice for residential, commercial, and industrial applications.
