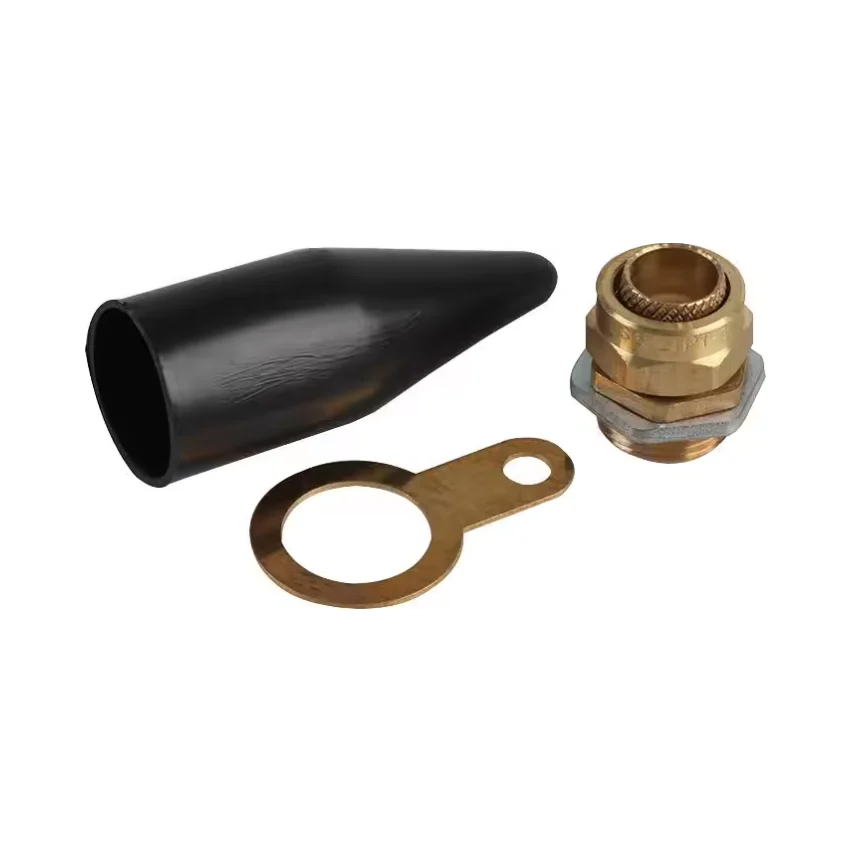

BW40 Internal SWA Cable Gland 40 – Pack of 1
The BW40 Internal SWA Cable Gland 40 – Pack of 1 is a high-quality brass gland designed specifically for Steel Wire Armoured (SWA) cables (H694-XL). This gland ensures secure clamping, electrical continuity, and mechanical retention, making it ideal for indoor applications where a waterproof seal is not required.
Key Features of BW40 Internal SWA Cable Gland
- High-Quality Brass Construction: Durable and corrosion-resistant for reliable, long-term use in indoor environments.
- Versatile Compatibility: Recommended for the following SWA cable sizes:
- 2 Core SWA: 120-150mm²
- 3 Core SWA: 95mm²
- 4 Core SWA: 70mm²
- 5 Core SWA: 35mm²
- Secure Clamping: Provides robust clamping of armour wire to ensure electrical continuity and mechanical retention.
- Indoor Application: Designed specifically for indoor use where a waterproof seal is not required.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sq.mm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
| 120 | 40 | – | – | – |
| 150 | 40 | – | – | – |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
