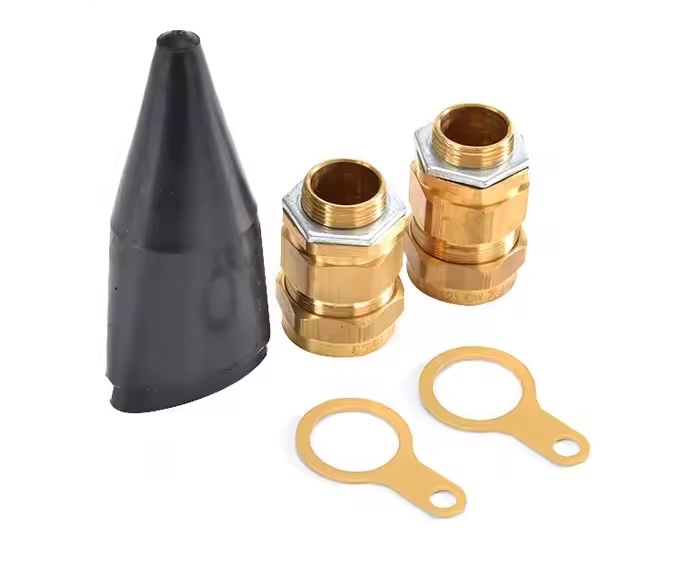

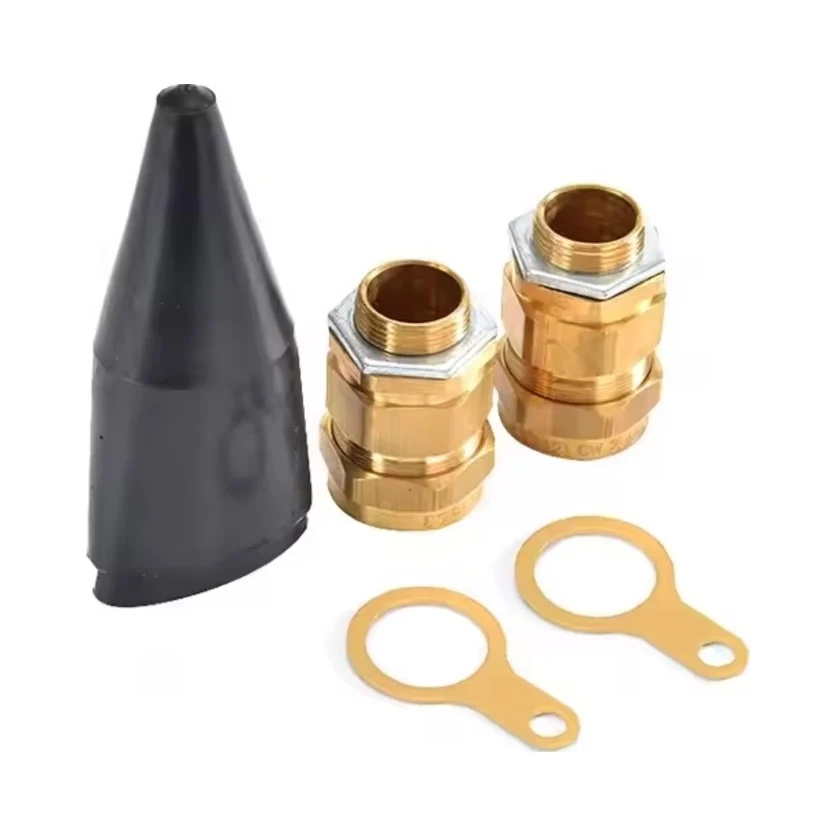

BW32-PK Internal SWA Cable Gland 32 – Pack of 2
The BW32 Internal SWA Cable Gland 32 – Pack of 2 is a premium brass gland designed specifically for Steel Wire Armoured (SWA) cables (H694-XL). These glands ensure secure clamping, electrical continuity, and mechanical retention of the cable. Ideal for indoor installations, the BW gland is suitable for environments where a waterproof seal is not required.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 35-95mm²
- 3 Core SWA: 35-70mm²
- 4 Core SWA: 25-35mm²
- 5 Core SWA: 25mm²
Key Features of BW32-PK Internal SWA Cable Gland
- High-Quality Brass Construction: Durable and corrosion-resistant for long-term reliability in indoor applications.
- Secure Clamping: Provides robust clamping of armour wire, ensuring electrical continuity and mechanical retention.
- Indoor Use: Specifically designed for indoor installations where a waterproof seal is not required.
- Versatile Compatibility: Fully compatible with Steel Wire Armoured cables (H694-XL), supporting a range of cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sqmm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The BW32 Internal SWA Cable Gland 32 – Pack of 2 is an essential component for secure and reliable SWA cable installations in indoor environments. With its high-quality brass construction and precise clamping design, this gland delivers excellent performance for professional and residential use.
