Description
High-Output Underfloor Heating for Large Areas

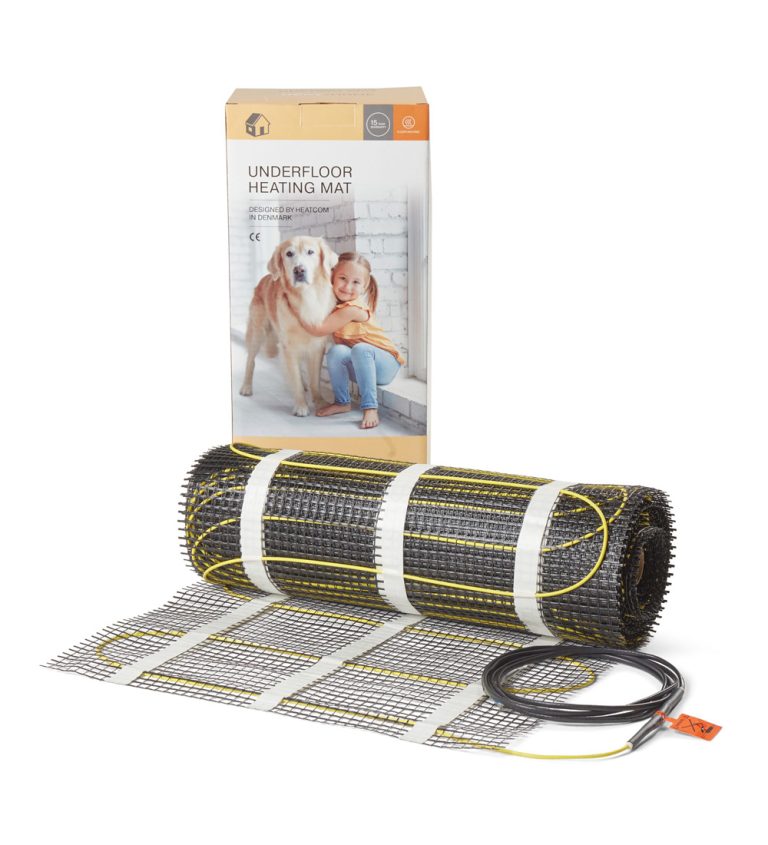

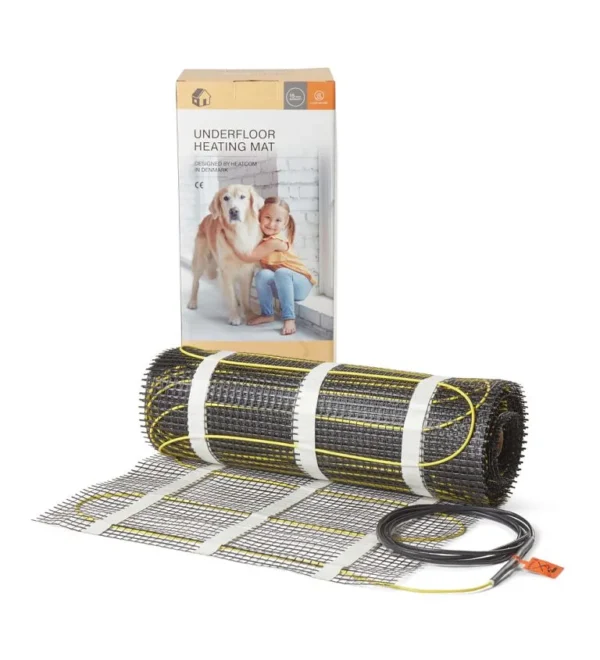

Heat Mat Budget Electric Underfloor Heating Mat 160W 6m²
The Heat Mat Budget Electric Underfloor Heating Mat 160W 6m² is designed to provide powerful and even warmth beneath tiled and stone floors. With a 160W/m² output, it is ideal for larger bathrooms, kitchens, and open-plan living areas that require dependable and energy-efficient heating.
Built with a dual conductor heating cable and 100% aluminium earth shielding, this system ensures safe operation and uniform heat distribution. The ultra-slim 3.5mm cable keeps floor height increase to a minimum, while the fibreglass mesh backing with three strips of double-sided tape allows for quick and secure installation.
UKCA and CE marked and manufactured in accordance with EN 60335-2-96 standards, this heating mat delivers professional-grade performance and compliance for residential and commercial projects.
Key Features – Heat Mat Budget Electric Underfloor Heating Mat 160W 6m²
- 160W/m² output for efficient and consistent heating
- 6m² coverage (0.5m wide x 12.0m long)
- Ultra-thin 3.5mm dual conductor heating cable
- IPX7 rated – suitable for bathrooms and wet areas
- 100% aluminium earth shield for enhanced safety
- Pre-spaced cable on fibreglass reinforcement mesh
- Three strips of double-sided tape for easy fixing
- 2.5m double insulated coldtail lead
- UKCA & CE approved
Technical Overview – Heat Mat Budget Electric Underfloor Heating Mat 160W 6m²
- Supply voltage: 240V – 50Hz
- Power output: 160W/m²
- Total output (6m²): 960W
- Output range (160W mats): 160W – 2400W
- Standard coverage range: 1.0m² – 15.0m²
- Mat width: 0.5m
- Mat length (6m² version): 12.0m
- Wire thickness: 3.5mm
- IP rating: IPX7
- Thermal conductor: 2 x high-temperature TPE
- Outer insulation: Polyolefin
- Earth protection: 100% aluminium earth shield
- Reinforcement: Fibreglass mesh
- Fixing method: Three strips of double-sided tape
- Compliance: EN 60335-2-96
Why Choose This Product?
Choose the 6m² heating mat for efficient, low-profile underfloor heating in larger spaces. Its slim cable design, IPX7 protection, and straightforward mesh installation make it a dependable solution for professional installers and renovation projects.
About Heat Mat
Heat Mat is a trusted UK specialist in electric underfloor heating systems, offering safe and installer-friendly heating solutions for residential and commercial applications.
Guarantee & Compliance
Manufactured to EN 60335-2-96 standards and carrying UKCA and CE approval, this underfloor heating mat meets essential UK electrical safety and compliance requirements.
