Efficient Underfloor Heating for Larger Living Spaces

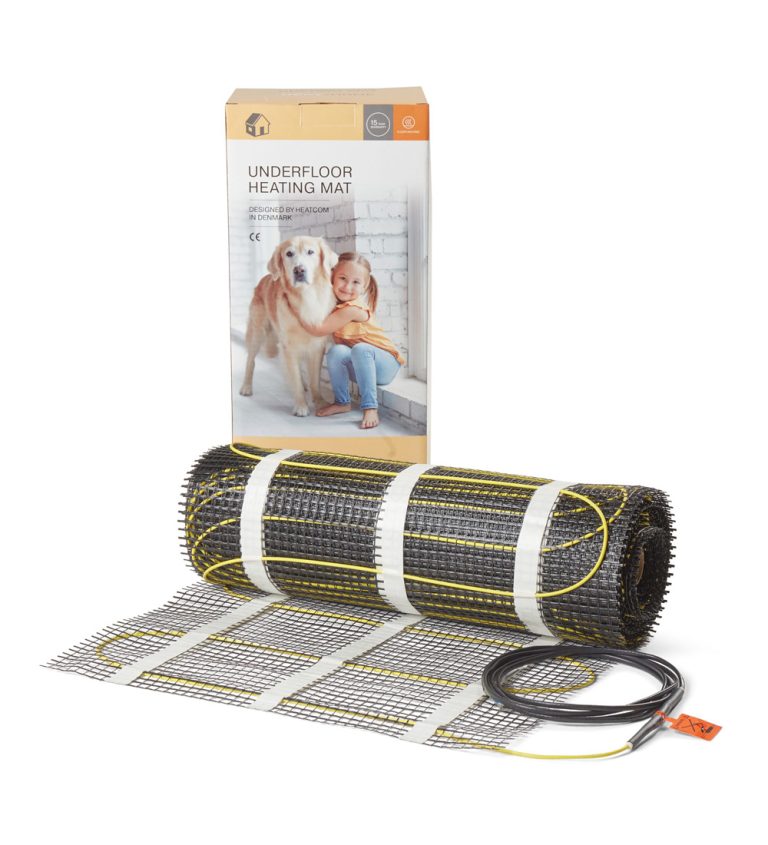

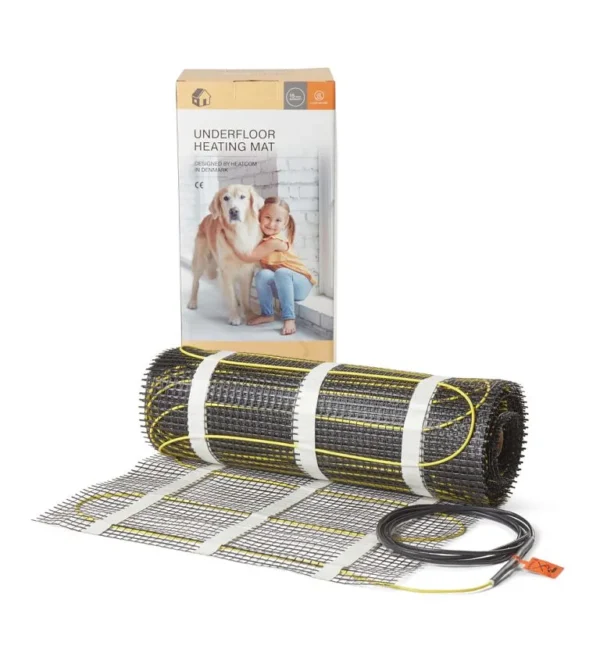

Heat Mat Budget Electric Underfloor Heating Mat 160W 3m²
The Heat Mat Budget Electric Underfloor Heating Mat 160W 3m² is designed to provide even and energy-efficient warmth beneath tiled and stone floors. With a 160W/m² heat output, it is ideal for bathrooms, kitchens, and larger living areas requiring dependable and comfortable heating.
Featuring a dual conductor heating cable with full aluminium earth shielding, this system ensures safe operation and uniform heat distribution. The slim 3.5mm cable minimises floor height increase, while the fibreglass mesh backing with three strips of double-sided tape allows for fast and secure installation.
UKCA and CE marked and manufactured in accordance with EN 60335-2-96, this underfloor heating mat provides professional-grade performance at a competitive price.
Key Features – Heat Mat Budget Electric Underfloor Heating Mat 160W 3m²
- 160W/m² output for efficient floor heating
- 3m² coverage (0.5m wide x 6.0m long)
- Ultra-thin 3.5mm dual conductor heating cable
- IPX7 rated – suitable for bathrooms and wet areas
- 100% aluminium earth shield for enhanced safety
- Pre-spaced cable on fibreglass reinforcement mesh
- Three strips of double-sided tape for simple installation
- 2.5m double insulated coldtail lead
- UKCA & CE approved
Technical Overview – Heat Mat Budget Electric Underfloor Heating Mat 160W 3m²
- Supply voltage: 240V – 50Hz
- Power output: 160W/m²
- Total output (3m²): 480W
- Output range (160W mats): 160W – 2400W
- Standard coverage range: 1.0m² – 15.0m²
- Mat width: 0.5m
- Mat length (3m² version): 6.0m
- Wire thickness: 3.5mm
- IP rating: IPX7
- Thermal conductor: 2 x high-temperature TPE
- Outer insulation: Polyolefin
- Earth protection: 100% aluminium earth shield
- Reinforcement: Fibreglass mesh
- Fixing method: Three strips of double-sided tape
- Compliance: EN 60335-2-96
Why Choose This Product?
Choose the 3m² heating mat for efficient, low-profile underfloor heating in medium to larger spaces. Its slim cable design, IPX7 protection, and easy-install mesh system make it a dependable solution for professional installers and renovations.
About Heat Mat
Heat Mat is a UK specialist in electric underfloor heating systems, offering reliable and installer-friendly heating solutions for residential and commercial projects.
Guarantee & Compliance
Manufactured to EN 60335-2-96 standards and carrying UKCA and CE approval, this heating mat meets essential UK electrical safety and compliance requirements.
