Description
Dependable Underfloor Heating for Larger Floor Areas

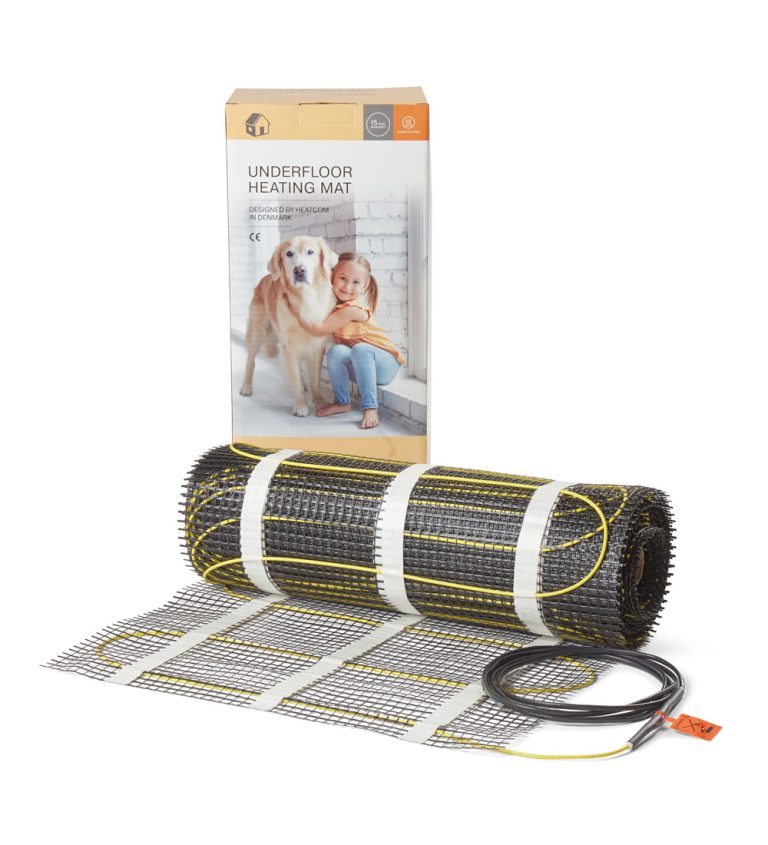

Heat Mat Budget Electric Underfloor Heating Mat 160W 2m²
The Heat Mat Budget Electric Underfloor Heating Mat 160W 2m² offers efficient and even heat distribution across larger tiled and stone floor spaces. With a 160W/m² output, it is ideal for bathrooms, kitchens, and living areas requiring comfortable, consistent warmth.
Designed with a dual conductor wire and integrated aluminium earth shield, this system ensures enhanced safety and performance. The slim 3.5mm heating cable reduces floor build-up, while the fibreglass mesh backing with double-sided tape allows for quick, secure installation.
Manufactured in accordance with EN 60335-2-96 and carrying UKCA and CE approval, this mat delivers trusted heating performance at a cost-effective price point.
Key Features – Heat Mat Budget Electric Underfloor Heating Mat 160W 2m²
- 160W/m² output for efficient heating
- 2m² coverage (0.5m wide x 4.0m long)
- Ultra-thin 3.5mm dual conductor heating cable
- IPX7 rated – suitable for bathrooms and wet areas
- 100% aluminium earth shield for improved safety
- Pre-spaced cable on fibreglass mesh
- Three strips of double-sided tape for easy fixing
- 2.5m double insulated coldtail lead
- UKCA & CE marked
Technical Overview – Heat Mat Budget Electric Underfloor Heating Mat 160W 2m²
- Supply voltage: 240V – 50Hz
- Power output: 160W/m²
- Total output (2m²): 320W
- Output range (160W mats): 160W – 2400W
- Standard coverage range: 1.0m² – 15.0m²
- Mat width: 0.5m
- Mat length (2m² version): 4.0m
- Wire thickness: 3.5mm
- IP rating: IPX7
- Thermal conductor: 2 x high-temperature TPE
- Outer insulation: Polyolefin
- Earth protection: 100% aluminium earth shield
- Reinforcement: Fibreglass mesh
- Fixing method: Three strips of double-sided tape
- Compliance: EN 60335-2-96
Why Choose This Product?
Choose the 2m² heating mat for efficient, low-profile floor heating in medium-sized spaces. Its slim cable design, IPX7 protection, and straightforward installation make it a practical and reliable solution for professional installers.
About Heat Mat
Heat Mat is a UK specialist in electric underfloor heating systems, offering dependable, installer-friendly solutions for residential and commercial applications.
Guarantee & Compliance
UKCA and CE approved and manufactured to EN 60335-2-96 standards, this underfloor heating mat meets essential electrical safety and performance requirements.
