Description
Efficient & Reliable Heating for Medium Floor Areas

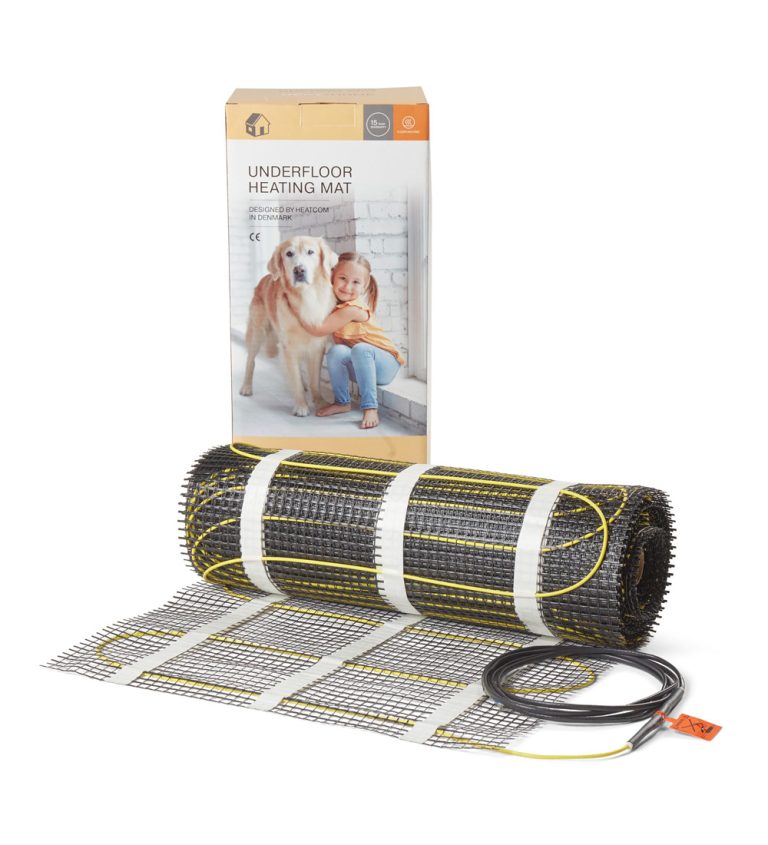

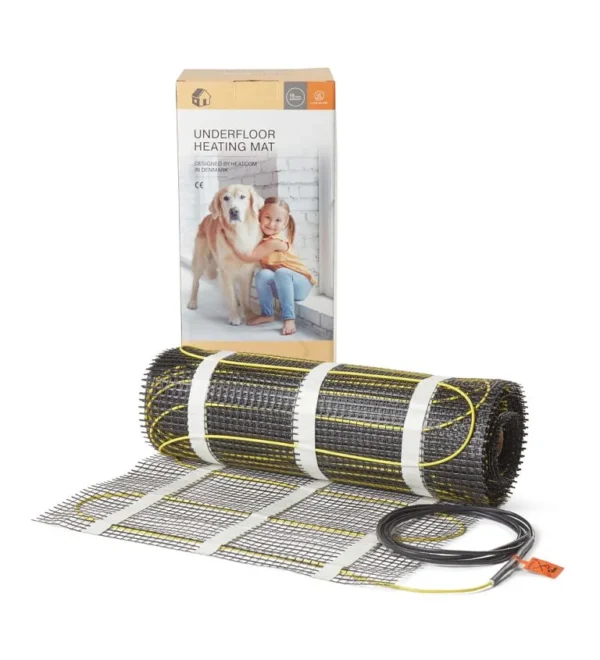

Heat Mat Budget Electric Underfloor Heating Mat 160W 2.5m²
The Heat Mat Budget Electric Underfloor Heating Mat 160W 2.5m² is designed to provide even, energy-efficient warmth beneath tiled and stone floors. With a 160W/m² output, it is ideal for bathrooms, kitchens, and medium-sized living spaces requiring dependable and comfortable underfloor heating.
Featuring a dual conductor heating cable with integrated aluminium earth shielding, this system ensures enhanced safety and uniform heat distribution. The slim 3.5mm cable helps minimise floor height increase, while the fibreglass mesh backing with three strips of double-sided tape enables quick, secure installation.
UKCA and CE marked and manufactured in accordance with EN 60335-2-96 standards, this heating mat offers reliable performance and compliance for professional installations.
Key Features – Heat Mat Budget Electric Underfloor Heating Mat 160W 2.5m²
- 160W/m² output for efficient and consistent heating
- 2.5m² coverage (0.5m wide x 5.0m long)
- Ultra-thin 3.5mm dual conductor heating cable
- IPX7 rated – suitable for bathrooms and wet areas
- 100% aluminium earth shield for added safety
- Pre-spaced cable on fibreglass reinforcement mesh
- Three strips of double-sided tape for easy installation
- 2.5m double insulated coldtail lead
- UKCA & CE approved
Technical Overview – Heat Mat Budget Electric Underfloor Heating Mat 160W 2.5m²
- Supply voltage: 240V – 50Hz
- Power output: 160W/m²
- Total output (2.5m²): 400W
- Output range (160W mats): 160W – 2400W
- Standard coverage range: 1.0m² – 15.0m²
- Mat width: 0.5m
- Mat length (2.5m² version): 5.0m
- Wire thickness: 3.5mm
- IP rating: IPX7
- Thermal conductor: 2 x high-temperature TPE
- Outer insulation: Polyolefin
- Earth protection: 100% aluminium earth shield
- Reinforcement: Fibreglass mesh
- Fixing method: Three strips of double-sided tape
- Compliance: EN 60335-2-96
Why Choose This Product?
Choose the 2.5m² heating mat for efficient, low-profile floor heating in medium-sized rooms. Its slim design, IPX7 protection, and quick-install mesh system make it a practical and reliable solution for installers and renovators.
About Heat Mat
Heat Mat is a trusted UK specialist in electric underfloor heating systems, providing safe, installer-friendly solutions for residential and commercial applications.
Guarantee & Compliance
Manufactured to EN 60335-2-96 standards and carrying UKCA and CE approval, this underfloor heating mat meets essential UK electrical safety and performance requirements.
