Reliable & Efficient Floor Heating for Smaller Areas

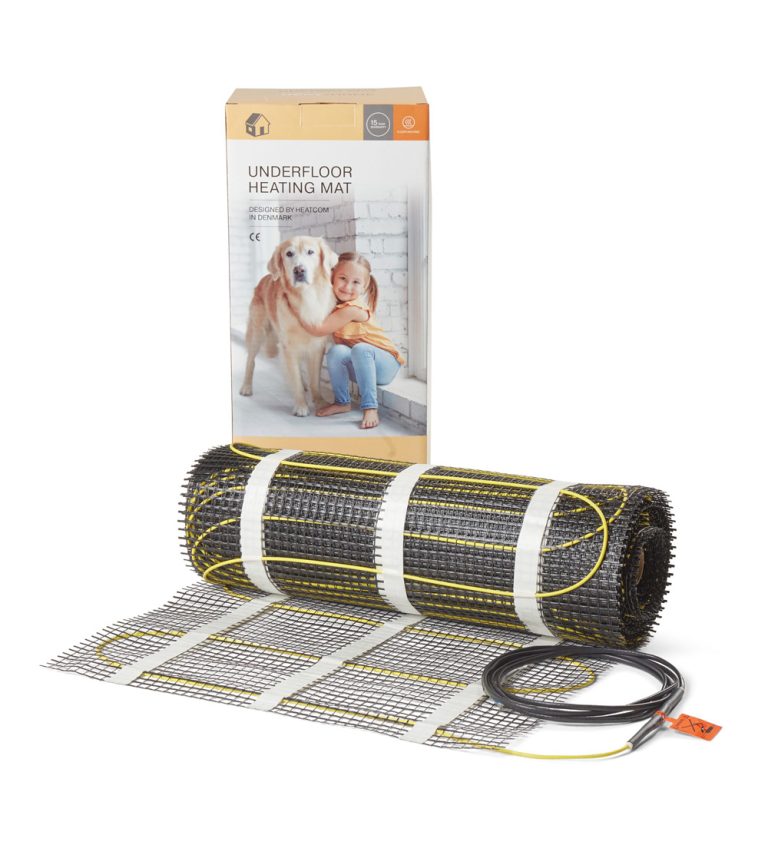

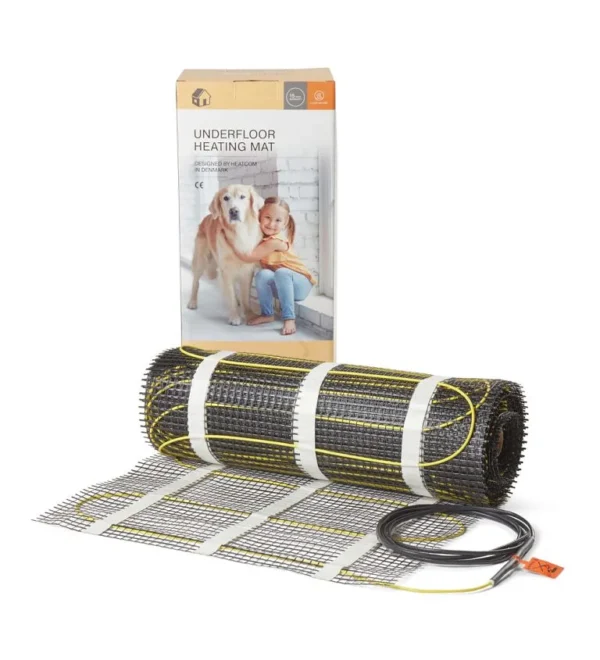

Heat Mat Budget Electric Underfloor Heating Mat 160W 1m²
The Heat Mat Budget Electric Underfloor Heating Mat 160W 1m² is designed to provide consistent, energy-efficient warmth beneath tiled and stone floors. Delivering 160W/m² output, this system is ideal for bathrooms, kitchens, and compact living spaces where dependable background heating is required.
Constructed with a dual conductor wire and full aluminium earth shield, this mat ensures safe and even heat distribution. The ultra-thin 3.5mm cable minimises floor height increase, while the fibreglass mesh with pre-applied double-sided tape allows for quick, secure installation.
UKCA and CE marked, and manufactured in accordance with EN 60335-2-96 standards, this heating mat offers professional-grade performance at an affordable price point.
Key Features – Heat Mat Budget Electric Underfloor Heating Mat 160W 1m²
- 160W/m² heat output – ideal for tiled and stone floors
- 1m² coverage (0.5m wide x 2.0m long)
- Ultra-thin 3.5mm dual conductor heating cable
- IPX7 rated for bathroom and wet area suitability
- 100% aluminium earth shield for added safety
- Pre-spaced cable on fibreglass mesh with double-sided fixing tape
- 2.5m double insulated coldtail lead
- UKCA & CE approved
Technical Overview – Heat Mat Budget Electric Underfloor Heating Mat 160W 1m²
- Supply voltage: 240V – 50Hz
- Power output: 160W/m²
- Output range (160W mats): 160W – 2400W
- Standard coverage range: 1.0m² – 15.0m²
- Mat width: 0.5m
- Mat length (1m² version): 2.0m
- Wire thickness: 3.5mm
- IP rating: IPX7
- Thermal conductor: 2 x high-temperature TPE
- Outer insulation: Polyolefin
- Earth protection: 100% aluminium earth shield
- Reinforcement: Fibreglass mesh
- Fixing method: Three strips of double-sided tape
- Compliance: EN 60335-2-96
Why Choose This Product?
Choose this 1m² heating mat for efficient, low-profile floor heating in smaller spaces. Its slim cable design, IPX7 protection, and fast-fit mesh backing make it a practical and reliable solution for professional installers and renovators alike.
About Heat Mat
Heat Mat is a UK specialist in electric underfloor heating systems, offering reliable, installer-friendly solutions for residential and commercial projects.
Guarantee & Compliance
Manufactured to EN 60335-2-96 standards and UKCA/CE approved, this heating mat meets essential electrical safety and performance requirements for UK installations.
