Description
Efficient Underfloor Heating for Medium-Sized Areas

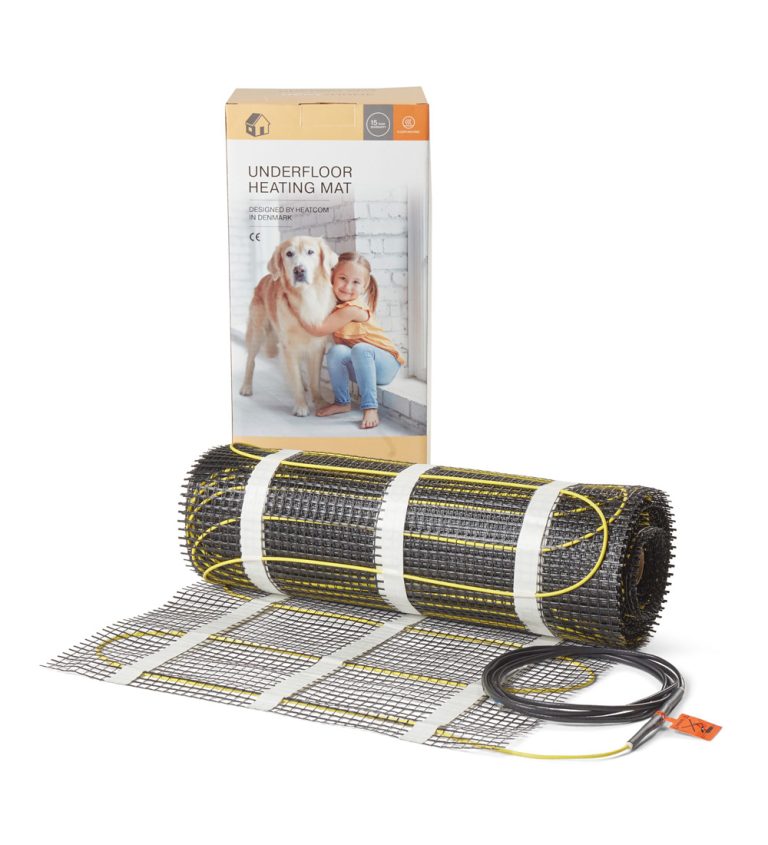

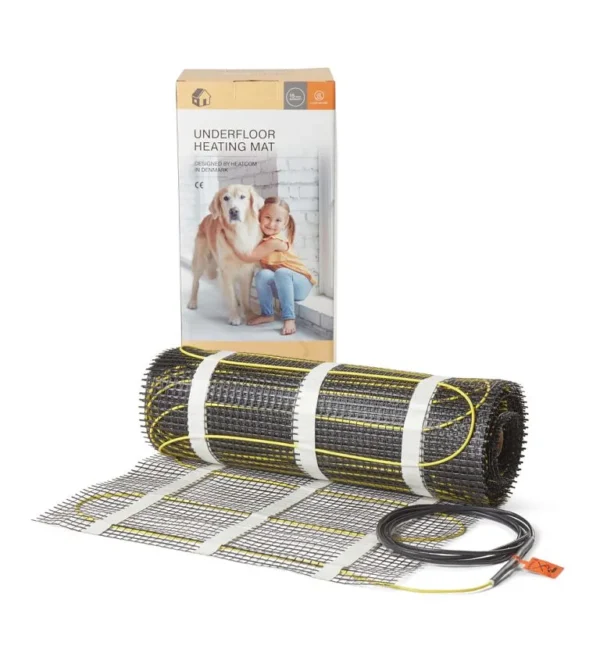

Heat Mat Budget Electric Underfloor Heating Mat 160W 1.5m²
The Heat Mat Budget Electric Underfloor Heating Mat 160W 1.5m² offers reliable and consistent warmth for bathrooms, kitchens, and other living spaces. Delivering 160W/m², this mat is ideal for primary heating in well-insulated rooms or as a comfortable background heat source beneath tiled and stone floors.
Built with a dual conductor heating cable and full aluminium earth shield, it ensures safe and even heat distribution. The slim 3.5mm cable keeps floor build-up to a minimum, while the pre-spaced fibreglass mesh with double-sided tape allows for fast and secure installation.
UKCA and CE approved and manufactured in accordance with EN 60335-2-96, this heating solution combines affordability with professional-grade performance.
Key Features – Heat Mat Budget Electric Underfloor Heating Mat 160W 1.5m²
- 160W/m² output for efficient floor heating
- 1.5m² coverage (0.5m wide x 3.0m long)
- Ultra-thin 3.5mm dual conductor heating wire
- IPX7 rated – suitable for bathrooms and wet areas
- 100% aluminium earth shield for enhanced safety
- Pre-spaced cable on fibreglass mesh
- Three strips of double-sided tape for quick fixing
- 2.5m double insulated coldtail lead
- UKCA & CE marked
Technical Overview – Heat Mat Budget Electric Underfloor Heating Mat 160W 1.5m²
- Supply voltage: 240V – 50Hz
- Power output: 160W/m²
- Total output (1.5m²): 240W
- Output range (160W mats): 160W – 2400W
- Standard coverage range: 1.0m² – 15.0m²
- Mat width: 0.5m
- Mat length (1.5m² version): 3.0m
- Wire thickness: 3.5mm
- IP rating: IPX7
- Thermal conductor: 2 x high-temperature TPE
- Outer insulation: Polyolefin
- Earth protection: 100% aluminium earth shield
- Reinforcement: Fibreglass mesh
- Fixing method: Three strips of double-sided tape
- Compliance: EN 60335-2-96
Why Choose This Product?
Choose the 1.5m² heating mat for efficient, low-profile warmth in compact to medium spaces. Its slim cable design, IPX7 protection, and simple mesh installation make it a dependable and installer-friendly heating solution.
About Heat Mat
Heat Mat is a trusted UK manufacturer specialising in electric underfloor heating systems designed for reliability, safety, and ease of installation.
Guarantee & Compliance
Manufactured to EN 60335-2-96 standards and UKCA/CE approved, this underfloor heating mat meets essential UK electrical safety and performance requirements.
