2 Way ON/OFF Dummy Dimmer Module Switch
Hamilton Litestat | N5102 | 6A | 2-Way Push On/Off Module

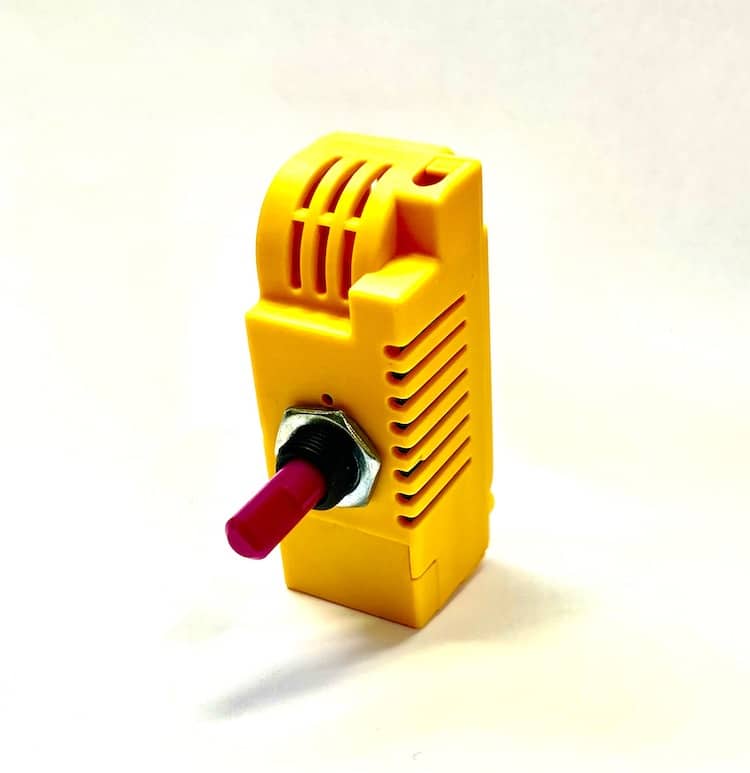

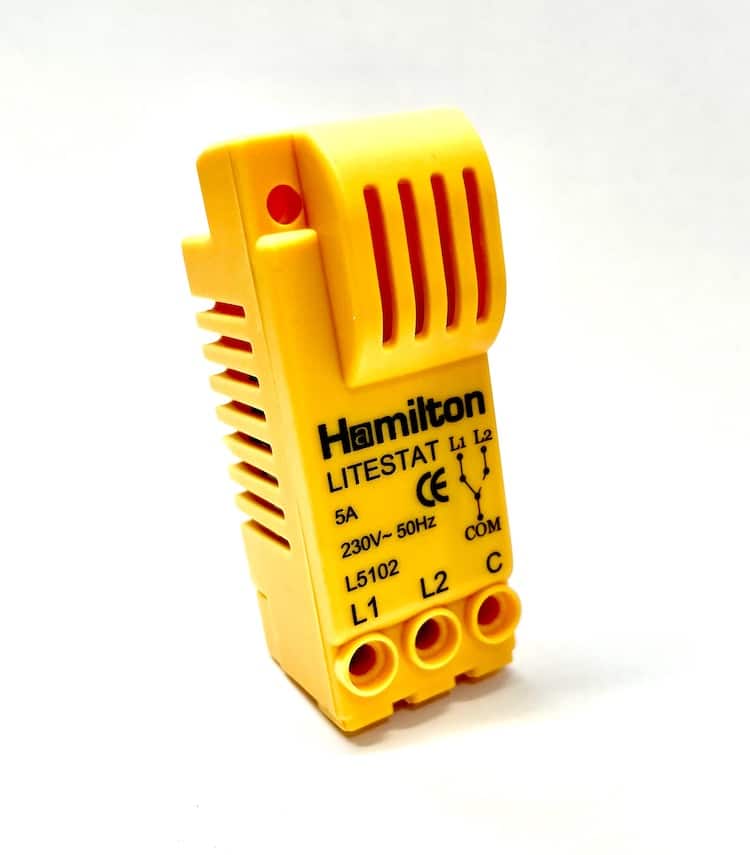

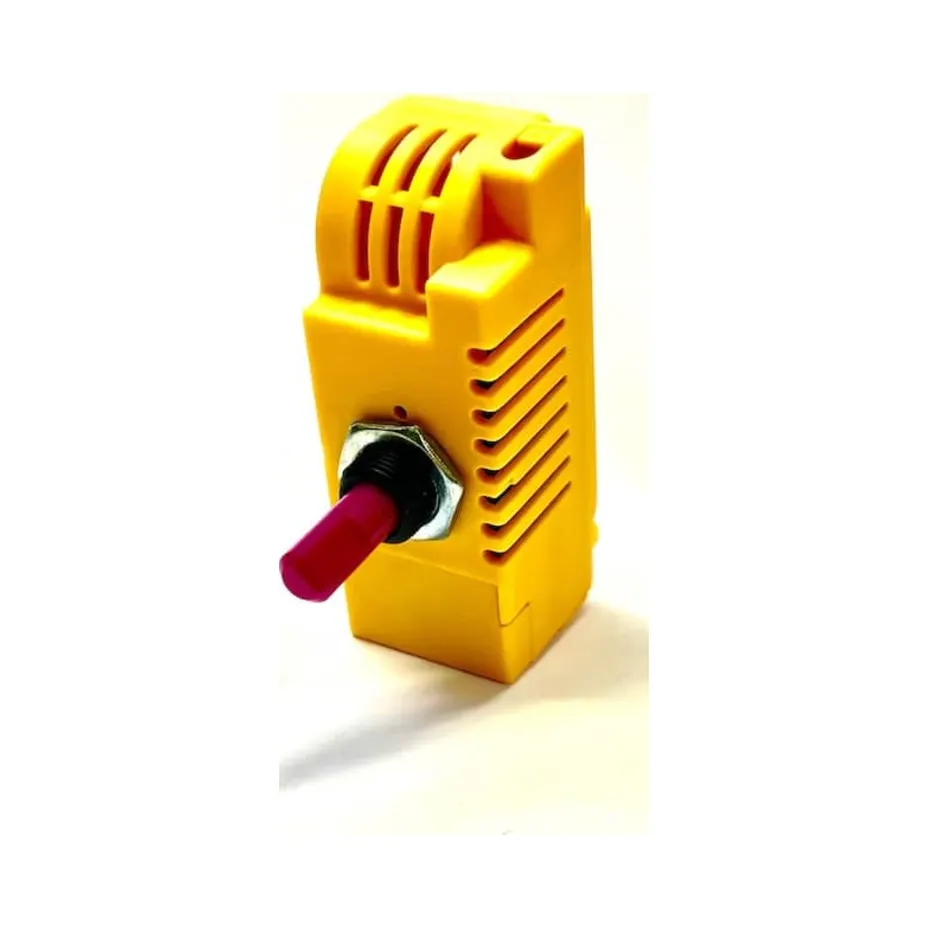

The Hamilton N5102 Dummy Dimmer Module is a reliable 6A push on/off switch moduledesigned to replace dimmer modules where dimming functionality is no longer required. It provides simple, positive on/off control while maintaining compatibility with Hamilton modular front plates and wiring systems.
Ideal for retrofit projects, this dummy dimmer module allows installers to retain the aesthetic of a dimmer plate while converting the circuit to standard switching operation.
Key Features & Benefits – Hamilton N5102 Dummy Dimmer Module
- Push ON/OFF operation (non-dimming)
- Ideal replacement for dimmer modules where dimming is not required
- 2-way switching capability
- Rated at 6A, suitable for standard lighting circuits
- Compact insert module design
- Compatible with Hamilton modular plate systems
- Class I product – faceplate must be earthed
- Manufactured to BS EN 60669-1
Typical Applications
- Replacing faulty or unnecessary dimmer modules
- Domestic lighting circuits
- Retrofit upgrades maintaining existing switch aesthetics
- Installations requiring simple, robust on/off control
Technical Specifications
- Model: N5102
- Product Type: Insert Type 6A 2-Way Push On/Off Switch Module
- Current Rating: 6A
- Voltage: 220–250V AC
- Maximum Load: 6A
- Mains Frequency: 50Hz
- IP Rating: IP2XD
- Contact Gap: Minimum 3 mm
- Switched Poles: N/A
- Product Class: Class I (Faceplate must be earthed)
- Operating Temperature: -5°C to +40°C
- Recommended Location: Internal use only
- Maximum Installation Altitude: 2000 m
- Standard / Approval: BS EN 60669-1
Terminal Capacities
Live Terminals
- 2 × 1.0 mm²
- 2 × 1.5 mm²
Earth Terminals
- 5 × 1.0 mm²
- 4 × 1.5 mm²
- 3 × 2.5 mm²
- 1 × 4.0 mm² (multi-strand)
- 1 × 6.0 mm²
Module Dimensions
- Height: 60.6 mm
- Width: 23 mm
- Depth: 32.6 mm
Product Identification
- EAN: 5028690000112
- Commodity Code: 85365015
- Luckins TSI: 407290109
