Description
Flush 12 Way Consumer Unit with SPD

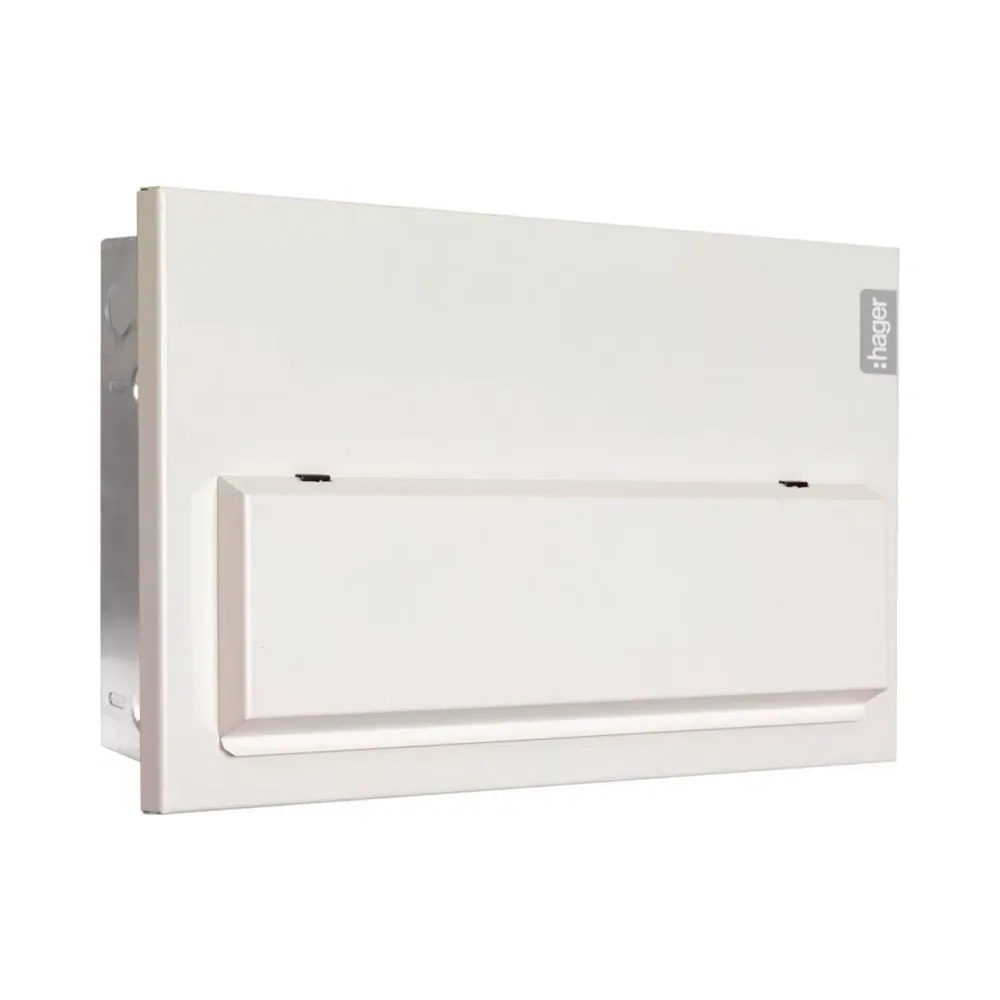

Hager VMLF112SPD – 100A Switch Disconnector Type 2 SPD
The Hager VMLF112SPD Flush 12 Way Consumer Unit is built for safe and simple power distribution in homes. It comes with a factory-fitted Type 2 surge protection device and a 100A main switch, giving strong protection against overvoltage.
Its flush-fit design offers a neat look, removing the bulky style of surface boards. The adjustable base depth (72–92mm) makes it easy to fit into stud walls with plasterboard. This unit is a solid choice for both new and upgrade projects.
Hager makes installation easier with quick-release clips for MCBs and RCBOs, plus clear torque settings inside the lid. Cable entry is simple thanks to rear knockouts, a cable clamp, and a top-mounted rail for tidy wiring.
✨ Key Features – Hager VMLF112SPD Flush Consumer Unit
- 12 way flush consumer unit with 100A main switch
- Factory-fitted Type 2 surge protection device
- Adjustable base depth for flexible installs
- Quick-release RCBO/MCB system with metal DIN rail
- Roomy cabling space and clear torque settings
- Meets BS EN 61439-3 and BS 7671 standards
Technical Overview – Hager VMLF112SPD Flush Consumer Unit
- Rated current: 100A
- Voltage: 230V AC 50Hz
- Surge protection: Type 2 SPD, replaceable cartridge
- Short circuit withstand: 16kA
- Ingress protection: IP2XC
- Impact rating: IK05
- Incoming terminals: L/N 50mm², Earth 16mm²
- Size: H 282mm x W 407mm x D 72-92mm
- Warranty: 2 years
Included
- Hager VMLF112SPD Flush 12 Way Consumer Unit
- 100A main switch disconnector (fitted)
- Type 2 surge protection device (fitted)
- Rear knockouts and cable protector plate
- User instructions and warranty
✅ Why Choose This Product?
The VMLF112SPD is compact, neat, and reliable. It protects homes from surges, installs flush to walls, and is easy for electricians to wire. A trusted Hager design for modern electrical setups.
About Hager
Founded in 1955, Hager is a family-owned German company and one of Europe’s leading names in electrical installation solutions. Their products include consumer units, wiring accessories, building automation, and smart energy systems.
️ Guarantee & Compliance
Hager consumer units comply with BS EN 61439-3 and BS 7671 wiring regulations. This product includes a 2-year manufacturer’s warranty. Visit the Hager website for full details.
