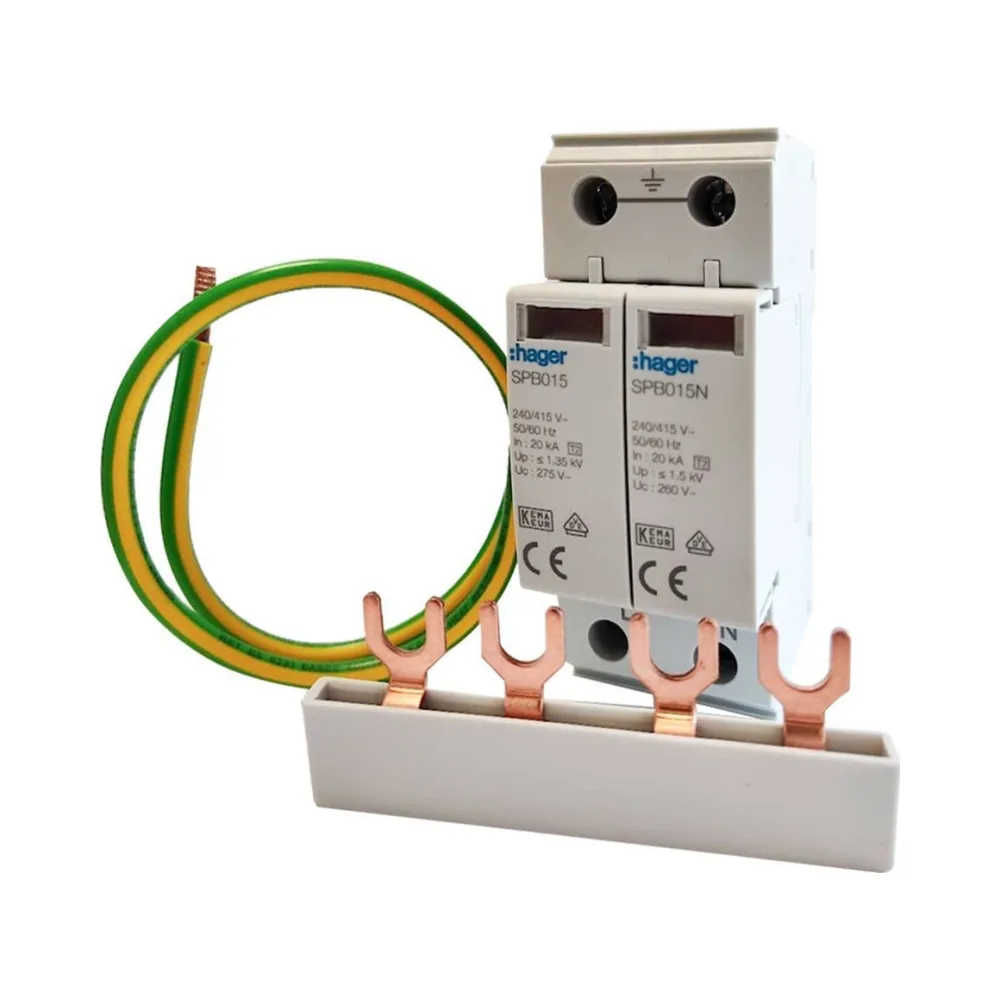

Hager VME02SPD Type 2 SPD Surge Protection Kit

Description

Reliable Surge Protection for Domestic Consumer Units

Type 2 SPD Kit for TN-S / TNC-S / TT Systems

The Hager VME02SPD Type 2 SPD Surge Protection Kit protects your home from sudden voltage spikes. It is made for single-phase TN and TT systems and meets the 18th Edition Wiring Regulations (BS7671). As a Type 2 SPD, it handles surges up to 40kA. This helps reduce the risk of damage caused by lightning or power switching. It is ideal for use in homes and small businesses.

This Type 2 SPD for Consumer Units module is easy to replace. There’s no need to touch any wiring. A status window shows green when working and red when it needs replacing. Installation is quick. The unit fits onto a standard 35mm DIN rail and suits Hager consumer units. Be sure to tighten all terminals to 3.6Nm, as stated in the manual.

⚙️ Performance & Safety Features – Hager VME02SPD

• Type 2 SPD – CT2 configuration for use in 230/400V TN and TT systems
• Maximum discharge current: 40kA (8/20μs)
• Voltage protection level: ≤1.5kV
• Optical status indicator (green = healthy, red = replace)
• Thermal disconnect for added safety
• No external MCB or fuse required

🔩 Installation & Standards – Type 2 SPD Kit for TN-S / TNC-S / TT Systems

• Pluggable module allows tool-free replacement
• Mounts on a standard 35mm DIN rail
• Terminal tightening torque: 3.6Nm
• Operating temperature range: -40°C to +80°C
• IP20-rated enclosure
• Certified to VDE and EN 61643-11

🔗 Other Hager Surge Protection Options – VME02SPD

Looking for enclosed options? Have a look at the VA2T2SPD Enclosure or the JK102SPD Type 2 Kit for Hager Three Phase Distribution Boards

📝 Summary – Hager VME02SPD Type 2 SPD Surge Protection Kit

The Hager VME02SPD is a high-performance, regulation-ready surge protection kit. It combines easy maintenance, strong protection, and full BS7671 compliance in one compact solution—ideal for use in Hager consumer units across UK installations.
