Description

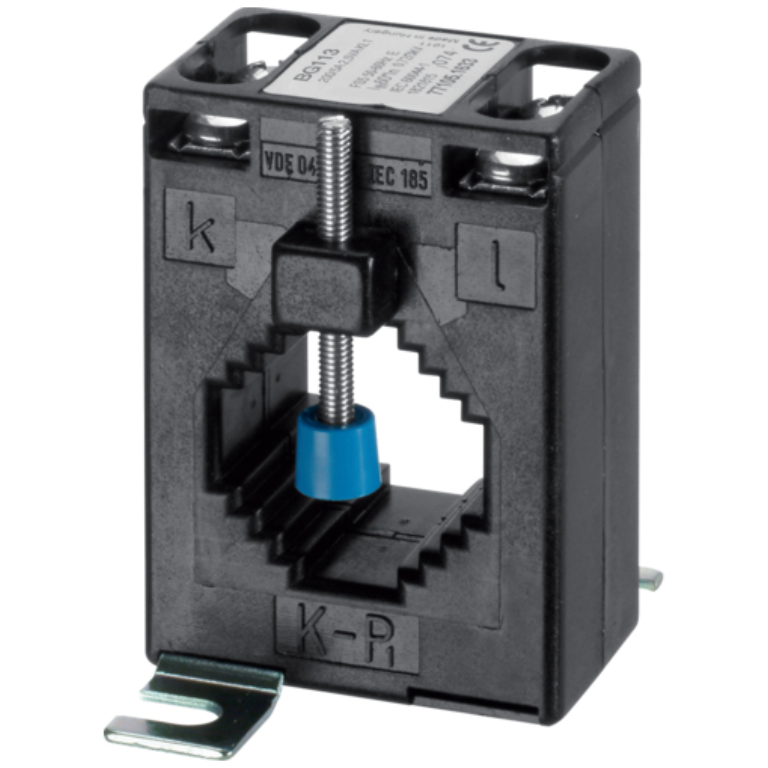

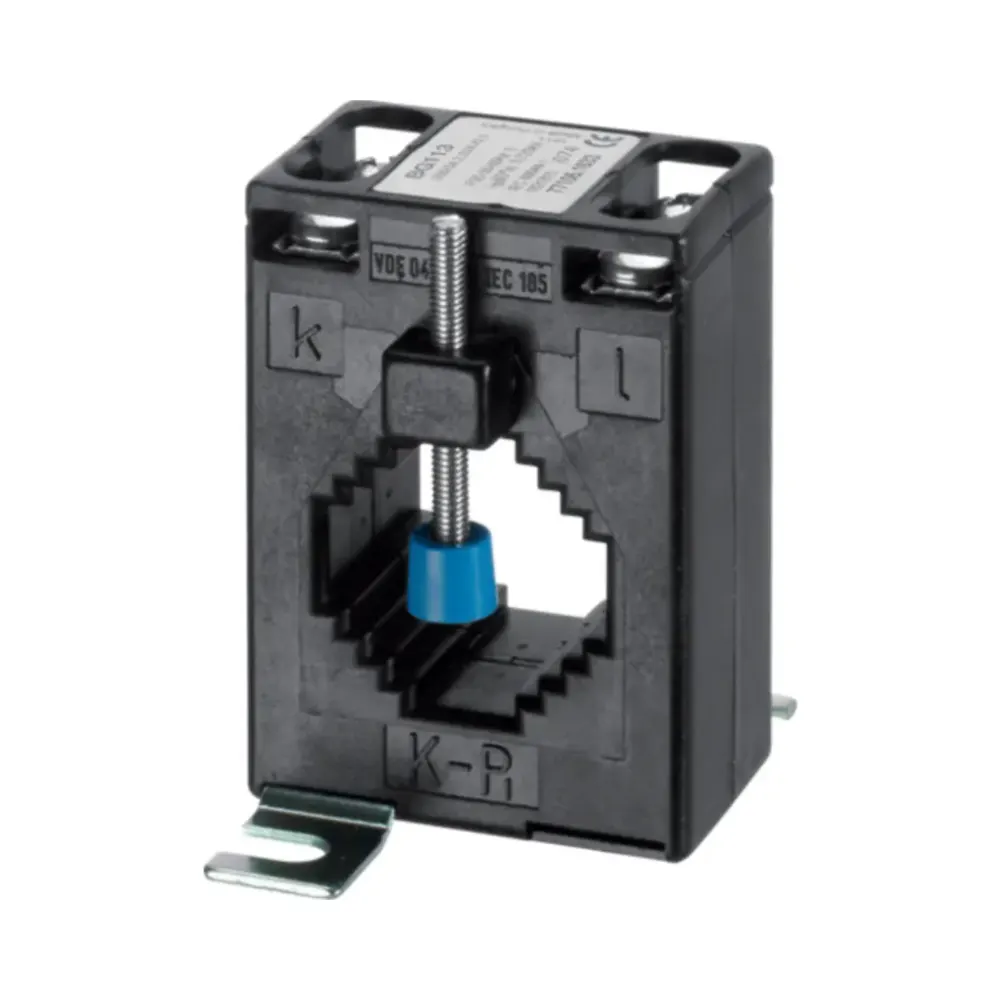

Bar/Cable-Through Current Transformer BG 113 200/5A 2.5VA Class 1
Hager SRA02005
The Hager SRA02005 is a robust bar/cable-through current transformer designed for precise current measurement in energy monitoring systems. With a 200/5A ratio and 2.5VA Class 1 rating, it provides reliable performance for industrial, commercial, and utility applications. Its compact design, screw-type connections, and compliance with international standards make it a trusted choice for demanding environments.
Key Features
- 200/5A Current Ratio: Ensures accurate current measurement with Class 1 precision.
- 2.5VA Power Rating: Designed for precise energy monitoring in professional applications.
- Bar/Cable-Through Design: Simplifies installation and integration with existing setups.
- Wide Frequency Range: Operates efficiently at 50/60Hz.
- Compact Size: Space-saving design with a height of 70mm and width of 49.5mm.
- Secure Connections: Screw terminals support flexible and rigid cables for secure wiring.
- Durable Build: Operates in extreme temperatures from -40°C to 40°C, ensuring reliability.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 2.2W
Physical Characteristics:
- Depth: 30mm
- Height: 70mm
- Width: 49.5mm
- Height of Opening: 20mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRA02005 is ideal for:
- Industrial: Monitor power usage in high-demand systems such as machinery and production lines.
- Commercial: Track energy consumption in office buildings, retail environments, and data centers.
- Utilities: Provide precise current measurements for public infrastructure energy systems.
Why Choose the Hager SRA02005?
The Hager SRA02005 delivers high accuracy, durable construction, and a compact design, making it a dependable solution for energy monitoring. Its bar/cable-through design ensures easy installation, while compliance with Class 1 standards guarantees precise and reliable performance.
