Description

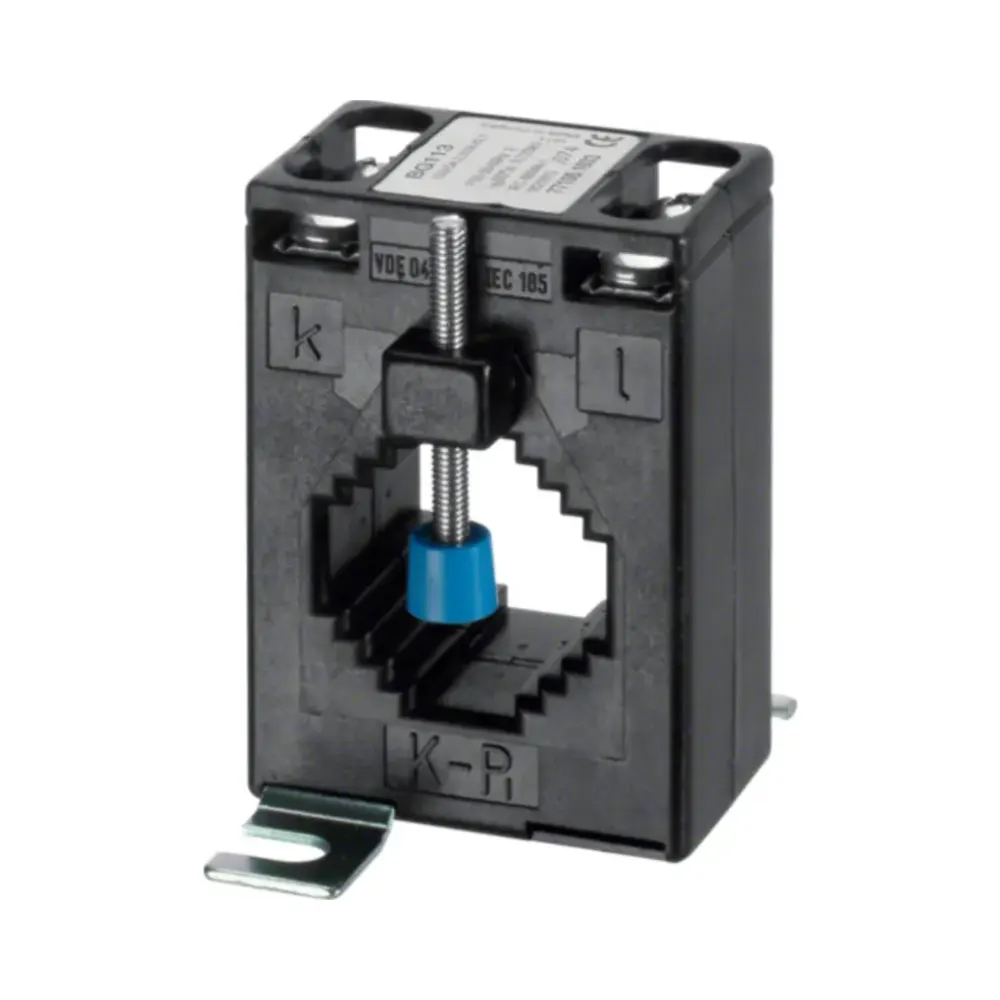

Bar/Cable-Through Current Transformer BG 113 150/5A 2.5VA Class 1
Hager SRA01505
The Hager SRA01505 is a bar/cable-through current transformer designed for accurate current measurement in energy monitoring applications. With a 150/5A ratio and 2.5VA Class 1 rating, it ensures reliable performance for industrial, commercial, and utility systems. Its compact design, screw-type connections, and compliance with international standards make it an excellent choice for precision energy monitoring.
Key Features of Hager SRA01505 Bar/Cable-Through Current Transformer
- 150/5A Current Ratio: Provides precise current measurement with Class 1 accuracy.
- 2.5VA Power Rating: Ideal for energy monitoring and measurement systems requiring high precision.
- Bar/Cable-Through Design: Simplifies integration with existing electrical setups.
- Wide Frequency Range: Operates effectively at 50/60Hz for versatile applications.
- Compact Dimensions: Space-saving design with a height of 70mm and width of 49.5mm.
- Secure Connections: Screw-type terminals support flexible and rigid cables for reliable wiring.
- Robust Construction: Operates in temperatures from -40°C to 40°C for reliable performance in varied environments.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 1W
Physical Characteristics:
- Depth: 30mm
- Height: 70mm
- Width: 49.5mm
- Height of Opening: 20mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRA01505 is ideal for:
- Industrial: Monitor energy usage in high-demand machinery and production setups.
- Commercial: Track power consumption in office buildings, retail outlets, and data centers.
- Utilities: Ensure accurate current measurement in public infrastructure energy systems.
Why Choose the Hager SRA01505?
The Hager SRA01505 offers high precision, compact design, and durable construction for reliable energy monitoring. Its bar/cable-through design ensures quick and easy installation, while its compliance with Class 1 accuracy guarantees dependable performance in demanding environments.
