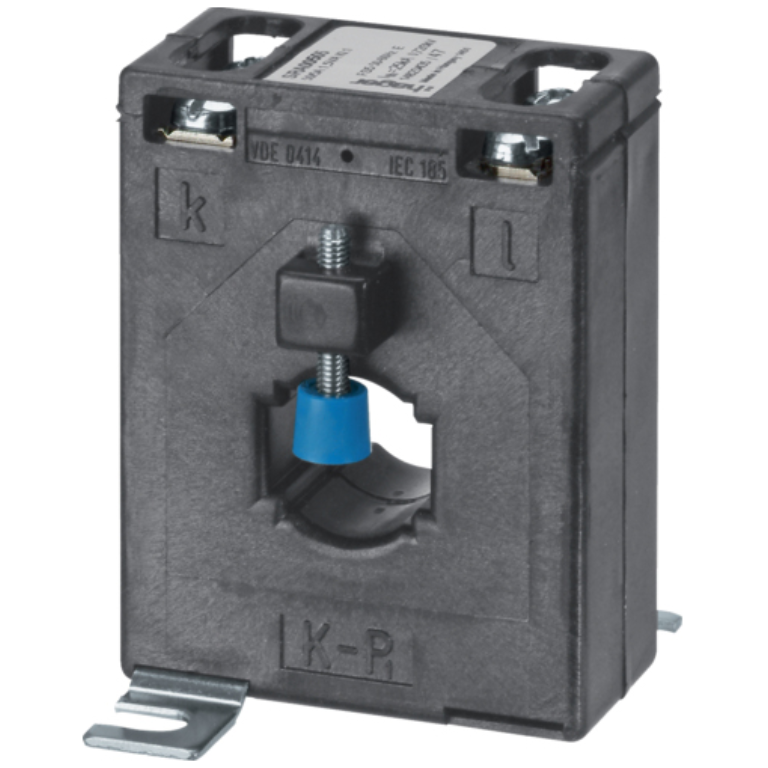

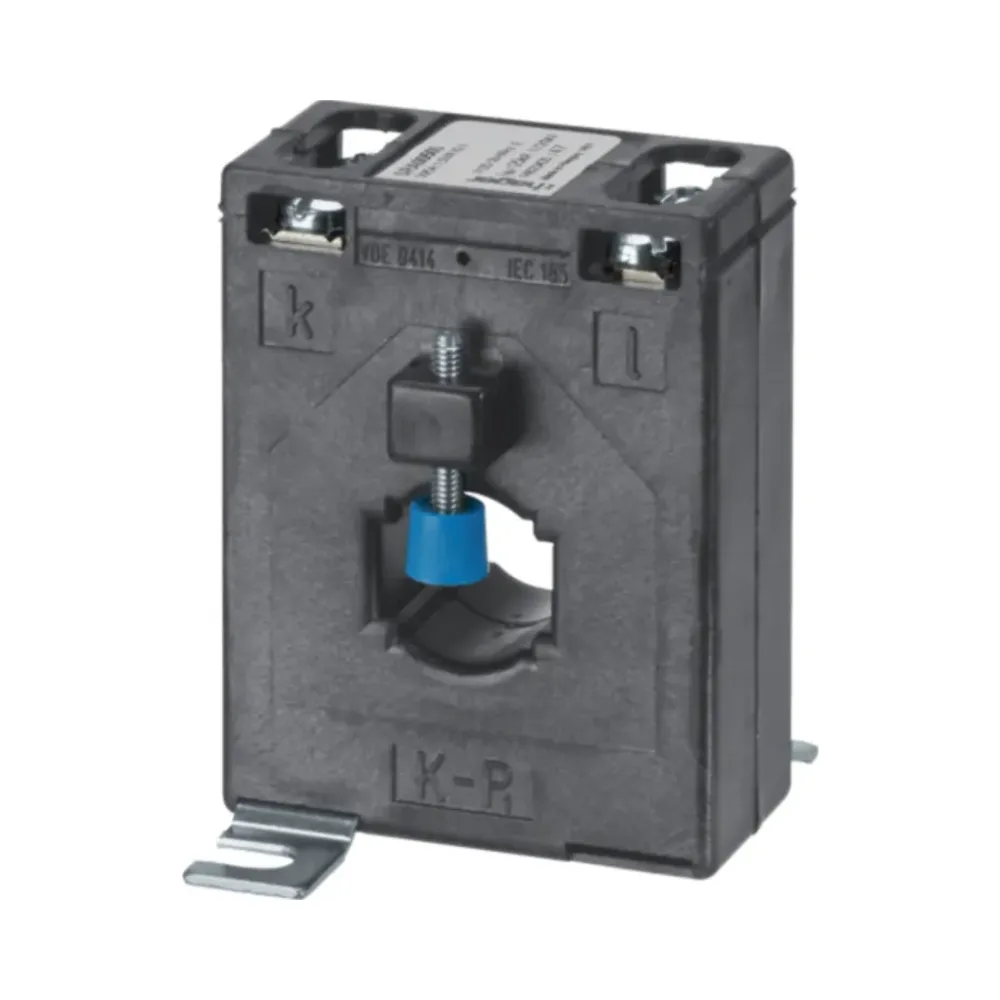

Bar/Cable-Through Current Transformer BG 213 50/5A 1.5VA Class 1
Hager SRA00505
The Hager SRA00505 is a compact and precise bar/cable-through current transformer designed for energy monitoring in small-scale applications. With a 50/5A ratio and 1.5VA Class 1 accuracy, this device is an ideal choice for residential, commercial, and light industrial environments. Its durable construction, compact dimensions, and screw-type connections ensure reliable performance and easy installation.
Key Features of Hager SRA00505 Bar/Cable-Through Current Transformer
- 50/5A Current Ratio: Delivers accurate current measurement with Class 1 precision.
- 1.5VA Power Rating: Designed for low-load energy monitoring applications.
- Bar/Cable-Through Design: Simplifies installation and integration with existing electrical systems.
- Wide Frequency Range: Operates efficiently at 50/60Hz for versatile applications.
- Compact Dimensions: Measures 78mm in height and 60mm in width, saving space during installation.
- Secure Connections: Screw terminals accommodate flexible and rigid cables for reliable wiring.
- Rugged Build: Operates effectively in extreme temperatures from -40°C to 40°C.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 0.5W
Physical Characteristics:
- Depth: 30mm
- Height: 78mm
- Width: 60mm
- Height of Opening: 20mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRA00505 is ideal for:
- Residential: Monitor energy usage in small-scale systems.
- Commercial: Track power consumption in retail outlets, small offices, and data centers.
- Light Industrial: Measure energy usage in low-demand machinery and equipment.
Why Choose the Hager SRA00505?
The Hager SRA00505 offers precise measurement and durable construction, making it a reliable choice for energy monitoring. Its compact design and bar/cable-through system simplify installation, while compliance with Class 1 standards ensures accuracy and reliability in low-load applications.
