Description

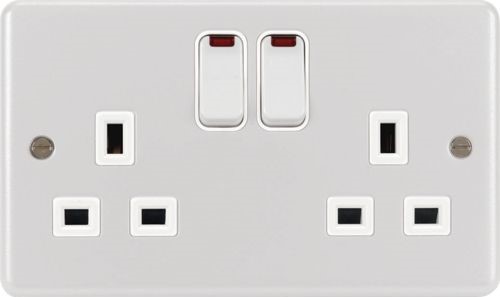

13A 2 Gang Double Pole Switched Socket with LED Indicator – White
Hager Sollysta WPSS82NW
The Hager Sollysta WPSS82NW is a high-quality 13A 2 gang double pole switched socket, designed with an LED indicator for easy operation. This socket features a unique patented three-part safety shutter, ensuring enhanced protection and compliance with BS 1363-2 standards.
Key Features
- Patented Safety Shutter: Offers superior safety with a unique three-part design.
- Double Pole Switching: Ensures both the live and neutral connections are switched, providing extra safety.
- Easy Installation: Terminal screws are grouped in-line and face upward, making installation straightforward. Clear terminal markings help ensure correct wiring.
- Terminal Capacity: Supports up to 5 x 2.5mm² conductors per terminal.
- Durable Construction: Made with a steel full cover plate, treated with epoxy for enhanced durability.
Specifications
- Nominal Voltage: 250 V
- Rated Current: 13 A
- Dimensions: 53.2 mm (Depth) x 86 mm (Height) x 146 mm (Width)
- Connection Type: Screw terminals with double earth connection
- Material and Finish: White epoxy-coated steel
- Protection: IP20 rated with enhanced contact protection
- Included Components: Comes with 2 fixing screws (M3.5×20 mm and M3.5×30 mm each)
