Description
Voltage to Meter Fuse Pack with M8 Ring Terminals for Use with 250A JN Panel Boards

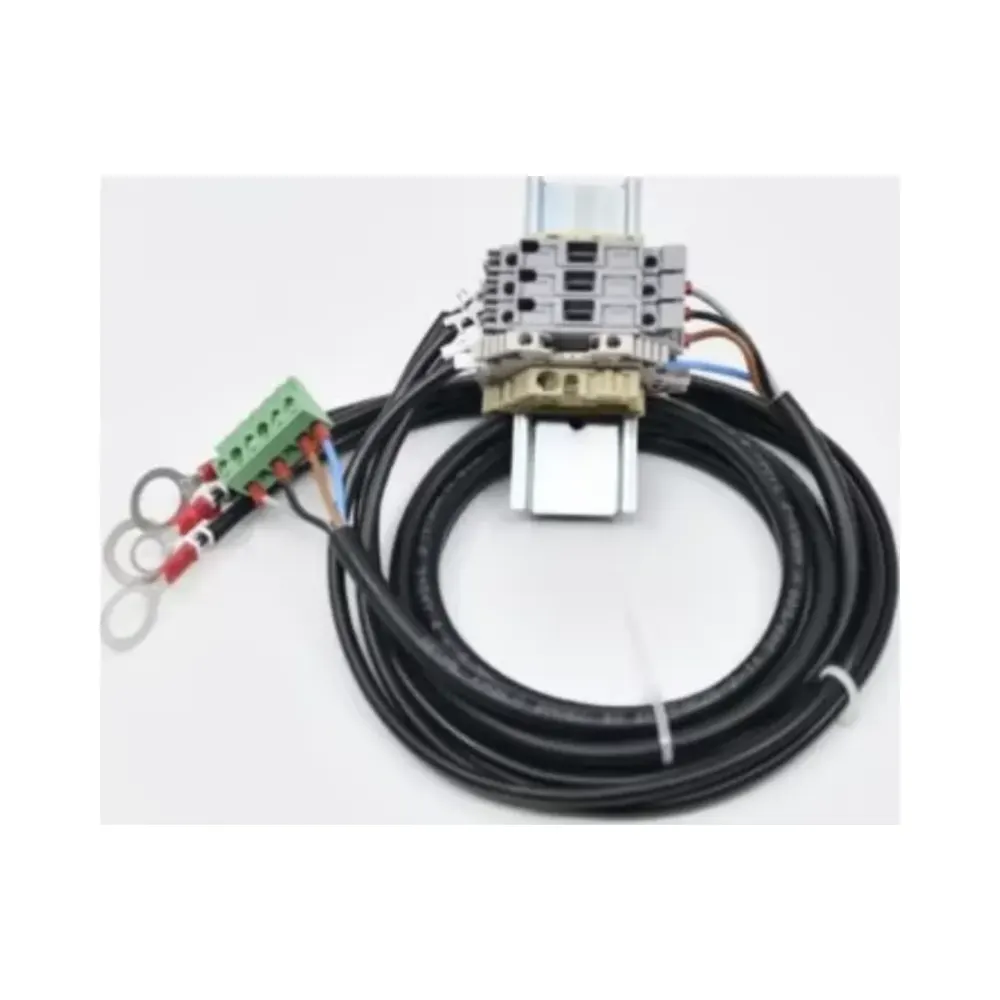

Hager JN130VMF
The Hager JN130VMF voltage to meter fuse pack is a reliable and efficient solution for connecting panel-mounted or DIN rail pluggable meters to the busbar system of 250A JN panel boards. This fuse pack supports up to 36 meters and features M8 ring terminals for secure and professional-grade installations.
Key Features of Hager JN130VMF Voltage to Meter Fuse Pack
- Voltage to Meter Connectivity: Designed to connect meters directly to the busbar system in 250A JN panel boards.
- 1500mm Cable Set: Pre-fitted with M8 ring terminals for easy and secure connection to main phases L1, L2, L3, and Neutral.
- 4 Fuse Carriers: Includes 4 fuses rated at 3A, 250V, providing protection for up to 36 meters.
- DIN Rail Mounting: Fuse carriers are mounted on a short DIN rail section for flexible positioning within the panel board.
- Daisy-Chaining Capability: Allows easy connection of additional meters using meter-to-meter supply cables.
- Compact and Versatile Design: Fits seamlessly within the panel board enclosure.
Specifications
Cable Length:
- 1500mm
Fuse Rating:
- 3A, 250V
Compatibility:
- Supports up to 36 meters
- Designed for Hager 250A JN panel boards
Mounting:
- DIN rail-compatible fuse carriers
Applications
The Hager JN130VMF is ideal for:
- Commercial: Enables efficient and organised metering in office buildings and retail spaces.
- Industrial: Provides robust connectivity for energy monitoring in medium-sized systems.
- Utilities: Supports integration of meters in public infrastructure for precise energy management.
Why Choose the Hager JN130VMF?
The Hager JN130VMF combines precision, durability, and scalability to simplify voltage-to-meter connections in 250A JN panel boards. Its pre-terminated cable set and daisy-chaining capability make it a flexible and efficient choice for professional installations.
