Hager JKM01 Multifunction Measurement Device DIN Rail 1×3-Phase RS485

Description

Multifunction Measurement Device DIN Rail 1×3-Phase RS485

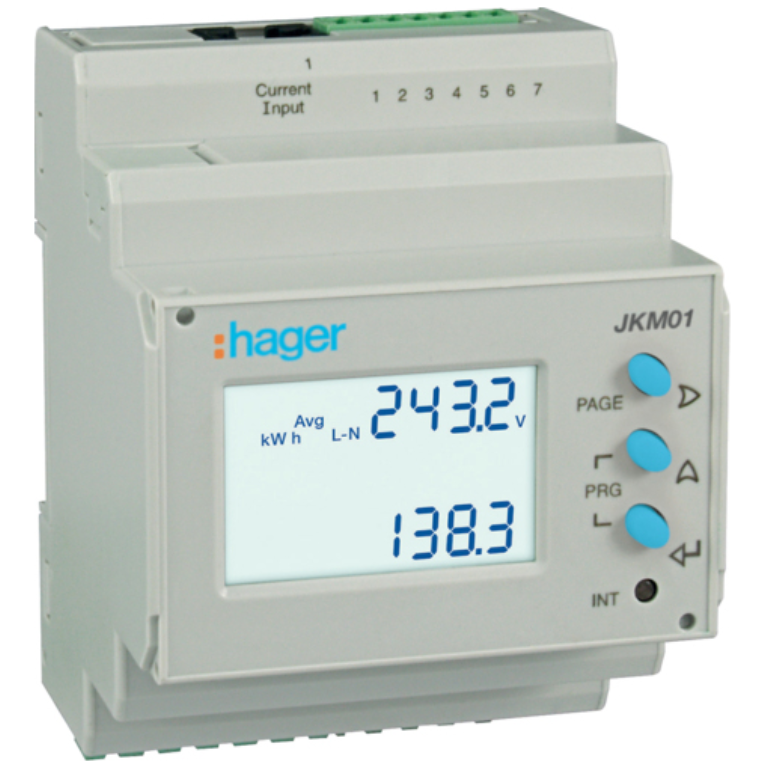

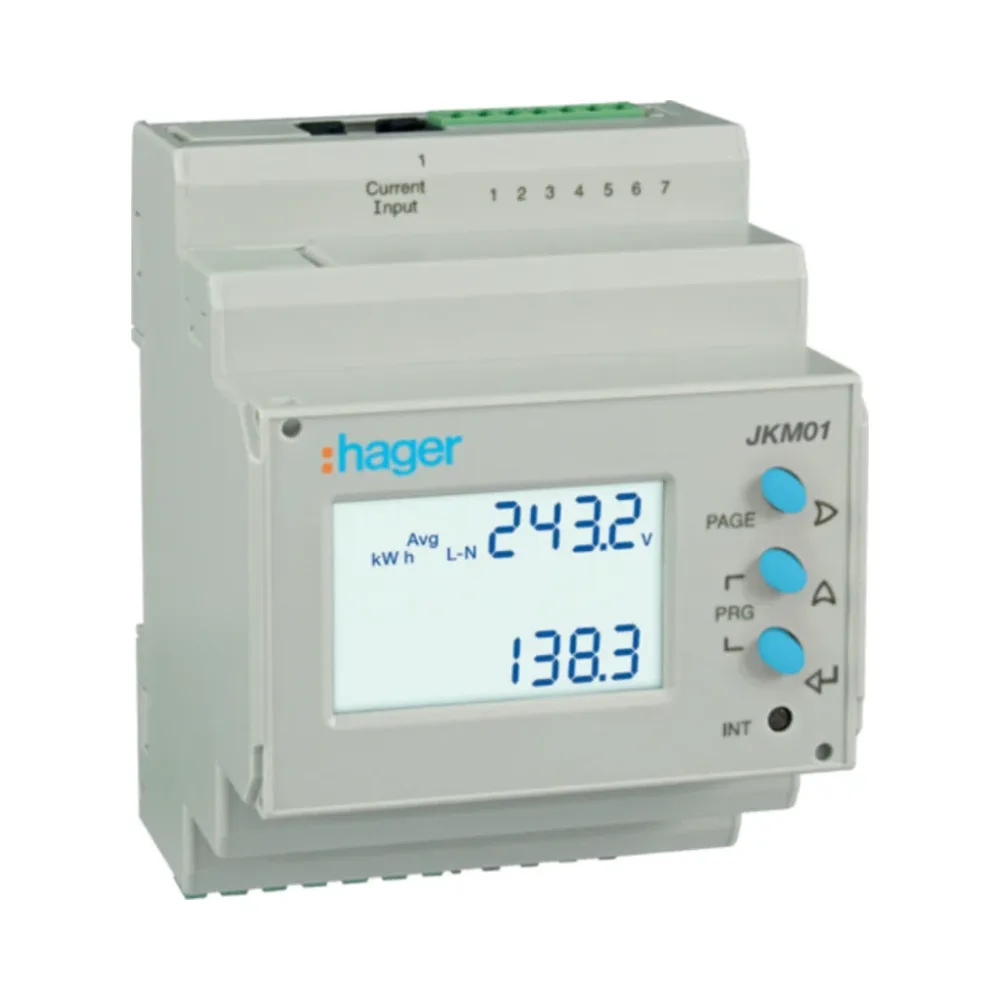

Hager JKM01

The Hager JKM01 Multifunction Measurement Device is a DIN rail-mounted energy monitoring solution for single-phase and three-phase systems. Featuring RS485 communication, this versatile device supports indirect measurement via current transformers (CT) and voltage transformers (VT). Designed for precision and reliability, it is ideal for industrial and commercial energy management systems.

Key Features of Hager JKM01 Multifunction Measurement Device

• Multifunction Measurement: Supports single-phase (1P+N) and three-phase (3P+N) configurations for comprehensive energy monitoring.
• Wide Voltage Input Range: Rated for 60-300V AC (L-N) and 104-520V AC (L-L).
• RS485 Communication: Facilitates real-time monitoring and seamless integration into advanced energy management systems.
• Current Transformer (CT) Compatibility: Handles CT primary inputs from 5A to 10,000A with a 330mV secondary input.
• Voltage Transformer (VT) Compatibility: Supports VT primary inputs from 100V to 10kV and secondary inputs between 100-500V AC (L-L).
• Pulse Output: Configurable output from 5-27V DC with a maximum current of 100mA for external system integration.
• Self-Supplied Auxiliary Power: Draws power directly from L1 phase, simplifying installation.
• Compact DIN Rail Design: Easy to install in standard panels and enclosures.
• Energy Efficiency: Low voltage rated burden of <8VA on L1 and <0.2VA on L2 and L3.

Technical Specifications

Electrical Input:

• Wiring Input: 3 Phase 4 Wire / 1 Phase 2 Wire
• Rated Input Voltage: 60-300V AC (L-N), 104-520V AC (L-L)
• Frequency Range: 45-65Hz

Current Transformer (CT):

• Primary: 5A to 10,000A
• Secondary: 330mV

Voltage Transformer (VT):

• Primary: 100V to 10kV
• Secondary: 100-500V AC (L-L)

Pulse Output:

• Voltage: 5-27V DC
• Maximum Current: 100mA

Environmental Conditions:

• Operating Temperature: -10°C to +55°C
• Storage Temperature: -20°C to +70°C
• Humidity: 0-85% (Non-condensing)

Physical Characteristics:

• Installation Category: III
• Weight: 191g

Applications

The Hager JKM01 is ideal for:

1. Industrial: Monitor and analyze energy usage in high-demand environments such as factories and warehouses.
2. Commercial: Track power consumption in offices, retail outlets, and data centers.
3. Utilities: Integrate into public infrastructure for advanced energy monitoring.

Why Choose the Hager JKM01?

The Hager JKM01 delivers advanced energy monitoring capabilities with its compatibility for CT and VT inputs and RS485 communication. Its compact DIN rail design ensures easy installation, while its robust build and wide voltage range make it suitable for demanding environments. Perfect for modern energy management systems, it provides accuracy, reliability, and flexibility.
