Description

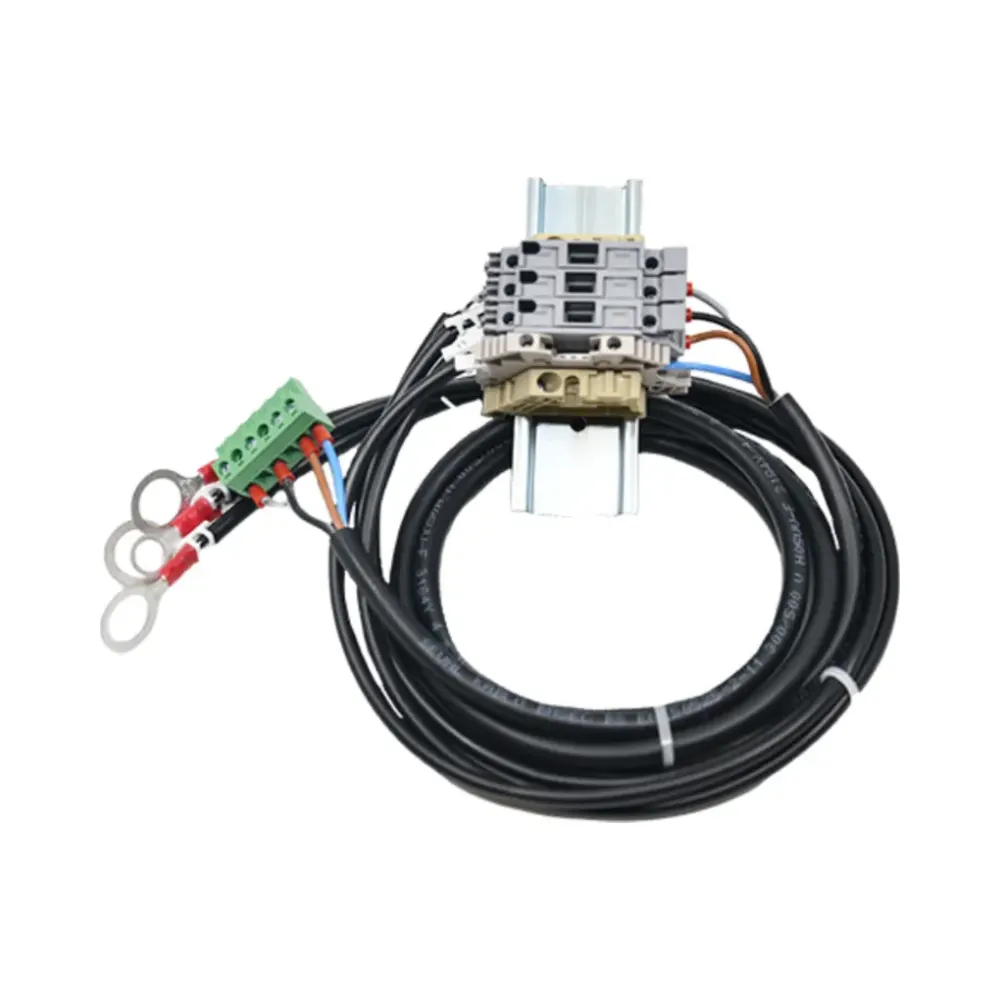

Voltage to Meter Fuse Pack with M12 Ring Terminals for Use with 400A to 800A Panel Boards
Hager JF130VMF
The Hager JF130MF voltage to meter fuse pack is a professional-grade solution for securely connecting panel-mounted or DIN rail pluggable meters to the busbar system of panel boards. Designed for use with 400A to 800A panel boards, this versatile pack supports up to 36 meters, ensuring efficient and organised energy monitoring in large-scale setups.
Key Features of Hager JF130VMF Voltage to Meter Fuse Pack
- Voltage to Meter Connectivity: Provides a complete solution for connecting meters to the busbar system.
- 1500mm Cable Set: Pre-fitted with M12 ring terminals for easy connection to main phases L1, L2, L3, and Neutral.
- 4 Fuse Carriers: Includes 4 fuses rated at 3A, 250V, ensuring protection for up to 36 meters.
- DIN Rail Mounting: Fuse carriers are mounted on a short DIN rail section for flexible positioning in the panel board.
- Daisy-Chaining Capability: Allows seamless daisy-chaining of meters using pluggable meter-to-meter supply cables.
- Convenient Installation: Compact design ensures ease of integration into JN or JF panel board systems.
Specifications
Cable Length:
- 1500mm
Fuse Rating:
- 3A, 250V
Compatibility:
- Supports up to 36 meters
- For use with Hager 400A to 800A panel boards (JN or JF series)
Mounting:
- DIN rail-compatible fuse carriers
Applications
The Hager JF130VMF is ideal for:
- Commercial: Ensures efficient and organised metering in office and retail environments.
- Industrial: Provides robust and scalable connectivity for energy monitoring in large-scale systems.
- Utilities: Supports precise meter integration for public infrastructure energy management.
Why Choose the Hager JF130VMF?
The Hager JF130VMF simplifies voltage-to-meter connections, offering durability, flexibility, and scalability for professional energy monitoring systems. Its pre-terminated cable set and daisy-chaining capability make it an efficient and cost-effective solution for large-scale installations.
