Description
3 Phase kWh Meter Direct 125A 6M MODBUS MID

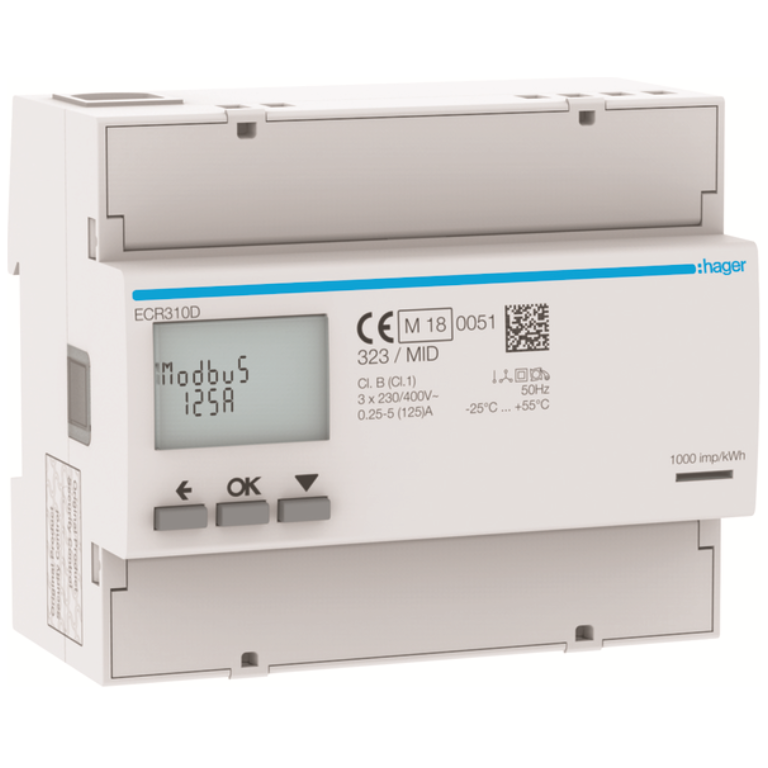

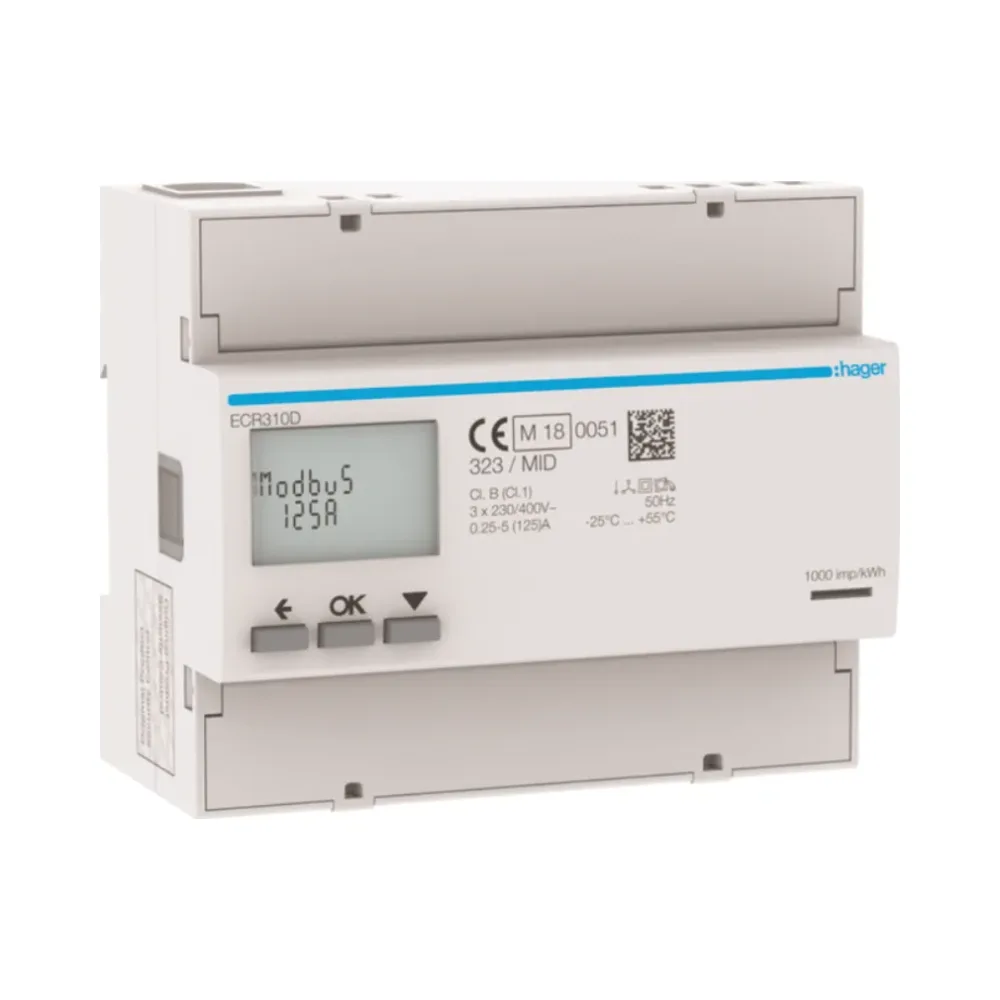

Hager ECR310D
The Hager ECR310D is a versatile 3-phase kWh meter designed for direct connection to systems with a maximum current of 125A. Featuring MODBUS communication capabilities, it provides seamless integration into advanced energy management systems. Its compact design, retro-illuminated display, and compliance with MID standards make it an excellent choice for industrial, commercial, and utility energy monitoring.
Key Features of Hager ECR310D 3 Phase kWh Meter
- 125A Direct Connection: Supports up to 125A without the need for external current transformers.
- MODBUS Communication: Ensures seamless integration with energy management systems.
- Retro-Illuminated Display: Provides clear visibility of measurements in all lighting conditions.
- 4 Wire Counter: Designed for three-phase systems with neutral connections.
- Precision and Compliance: Certified to MID standards for accurate billing and compliance with European regulations.
- DIN Rail Mounting: Fits standard DIN rails for easy installation.
- Robust Design: Operates reliably in a wide range of environmental conditions.
Technical Specifications
Electrical Characteristics:
- Rated Operational Voltage (Ue): 92-480V AC
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
- Frequency: 50Hz
- Power Consumption: 2VA
- Total Power Loss: 0.6W
Dimensions and Installation:
- Depth: 60mm
- Height: 92mm
- Width: 107mm
- Mounting Type: DIN Rail
- Tightening Torque: 5Nm
Measurement and Display:
- Type of Measuring Instrument: Electronic
- Type of Display: Retro-Illuminated LCD
Compliance and Standards:
- European Directive WEEE: Concerned
- MID Certified: Yes
Environmental Conditions:
- Operating Temperature: -25°C to 55°C
- Protection Index (IP): IP20
Applications
The Hager ECR310D is ideal for:
- Industrial: Energy monitoring in factories and production facilities.
- Commercial: Accurate billing in offices, retail spaces, and data centers.
- Utilities: Monitoring power usage in public infrastructure and utility installations.
Why Choose the Hager ECR310D?
The Hager ECR310D combines precision, reliability, and advanced MODBUS communication capabilities, making it a trusted solution for modern energy management. Its compact DIN rail design and compliance with MID standards ensure ease of installation and accurate billing for various energy systems.
