Description

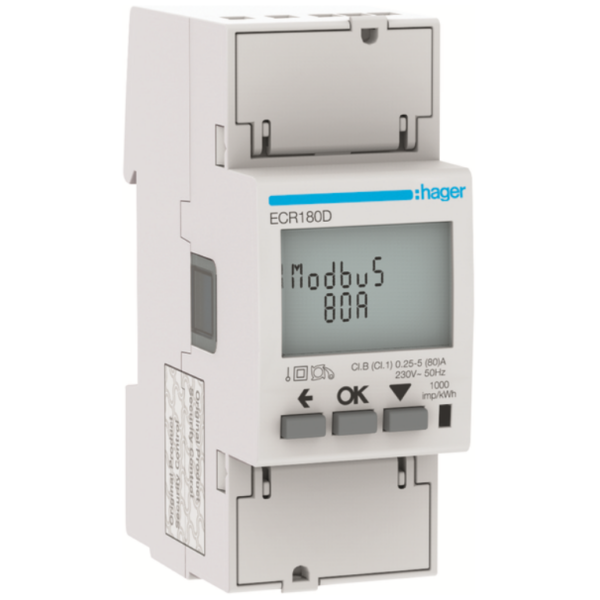

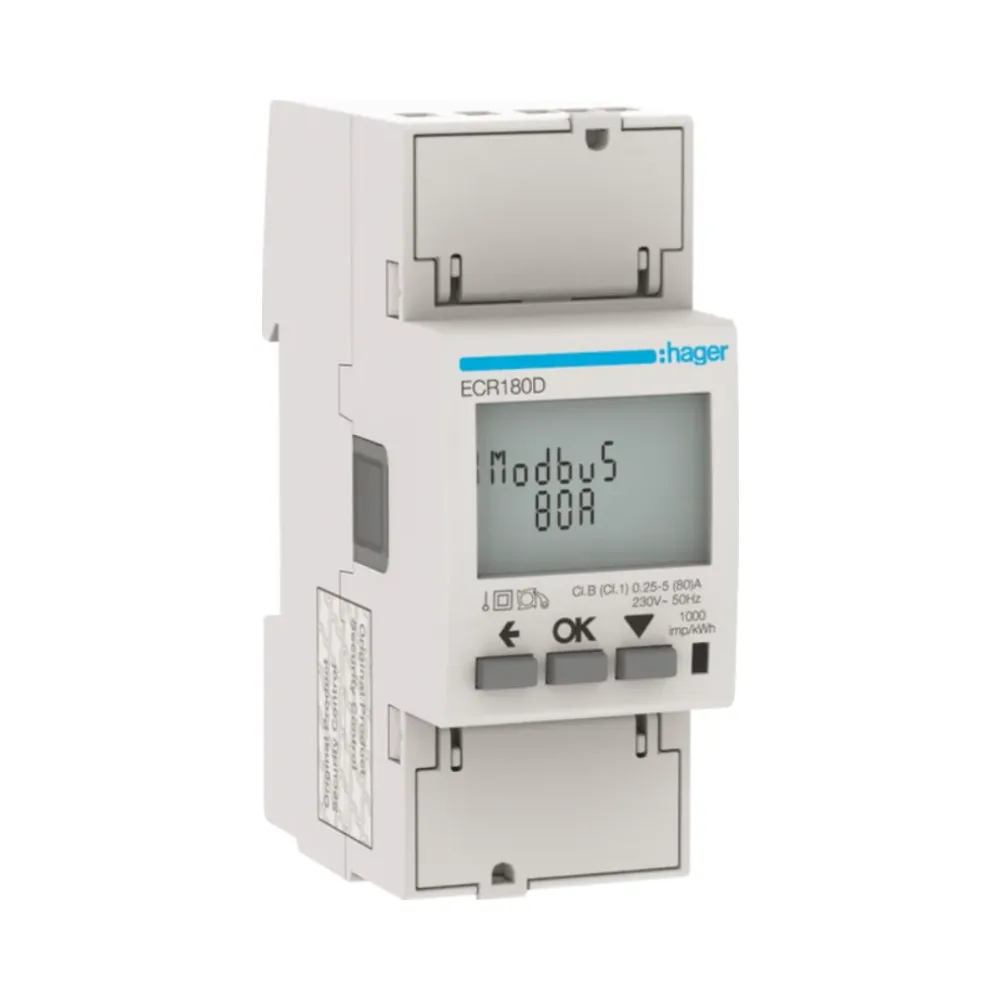

1 Phase kWh Meter Direct 80A 2M MODBUS MID
Hager ECR180D
The Hager ECR180D is a high-performance single-phase kWh meter designed for direct 80A measurement with MODBUS communication. This 2M MID-certified meter ensures precise energy tracking, making it a reliable choice for residential, commercial, and industrial applications. With a compact design, advanced features, and retro-illuminated display, the ECR180D integrates seamlessly into modern energy monitoring systems.
Key Features of Hager ECR180D 1 Phase kWh Meter
- MODBUS Communication: Enables seamless integration into MODBUS-based energy monitoring systems for real-time tracking and control.
- Direct 80A Measurement: Handles higher loads, making it suitable for heavy-duty applications.
- Compact 2M Design: Space-saving installation with a width of 36mm for streamlined panel layouts.
- Retro-Illuminated Display: Provides clear visibility of energy usage data in various lighting conditions.
- Single-Phase Counter: Specifically designed for 1P+N systems with accurate energy tracking.
- MID Certified: Meets international standards for accuracy and reliability, ensuring billing compliance.
- DIN Rail Mounting: Quick and secure installation on DIN rail systems.
- Energy Efficient: Consumes just 2VA power with a total power loss of 1W under nominal current.
- Durable Construction: Operates reliably in a wide temperature range from -25°C to 55°C.
Technical Specifications
Architecture:
- Bus System: MODBUS
- Number of Poles: 2P (1P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-276V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 36mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 1W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: Retro-Illuminated Display
- Counter Type: Single-Phase
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Installation:
- Tightening Torque: 2 Nm
Applications
The Hager ECR180D is ideal for:
- Residential: Monitor energy consumption in homes with high-demand appliances.
- Commercial: Track energy usage in offices, retail outlets, and facilities with higher loads.
- Industrial: Measure power consumption in warehouses, factories, and heavy-duty environments.
Why Choose the Hager ECR180D?
The Hager ECR180D excels in handling high loads with its 80A capacity and MODBUS communication for real-time energy monitoring. Its compact 2M design ensures space efficiency, while the retro-illuminated display enhances readability in all conditions. The MID certification guarantees measurement accuracy, making it a dependable choice for energy management systems.
