1 Phase kWh Meter Direct 40A 1M Modbus MID

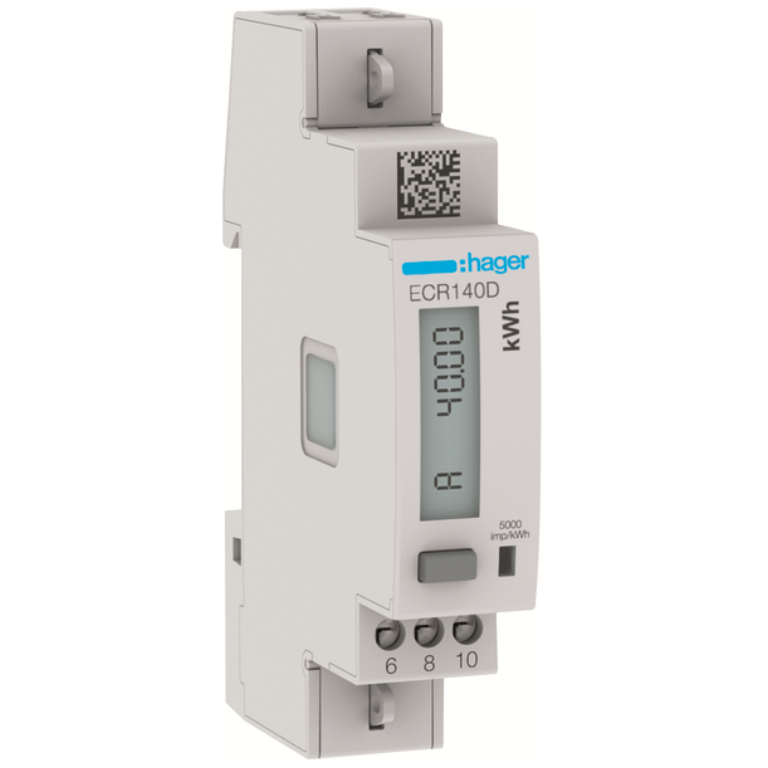

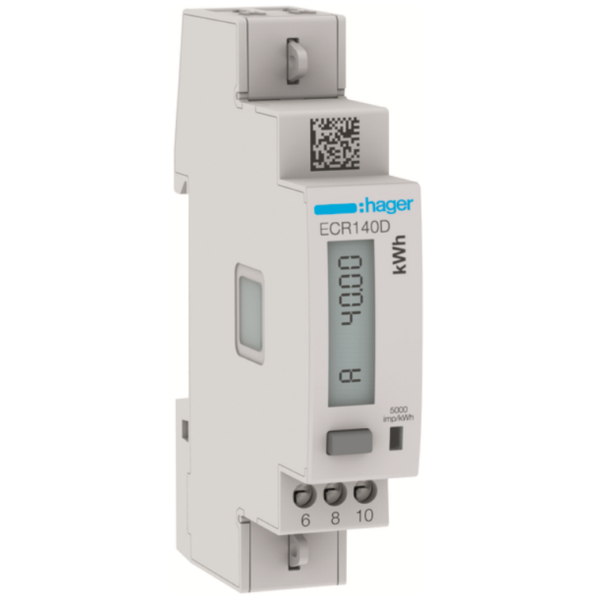

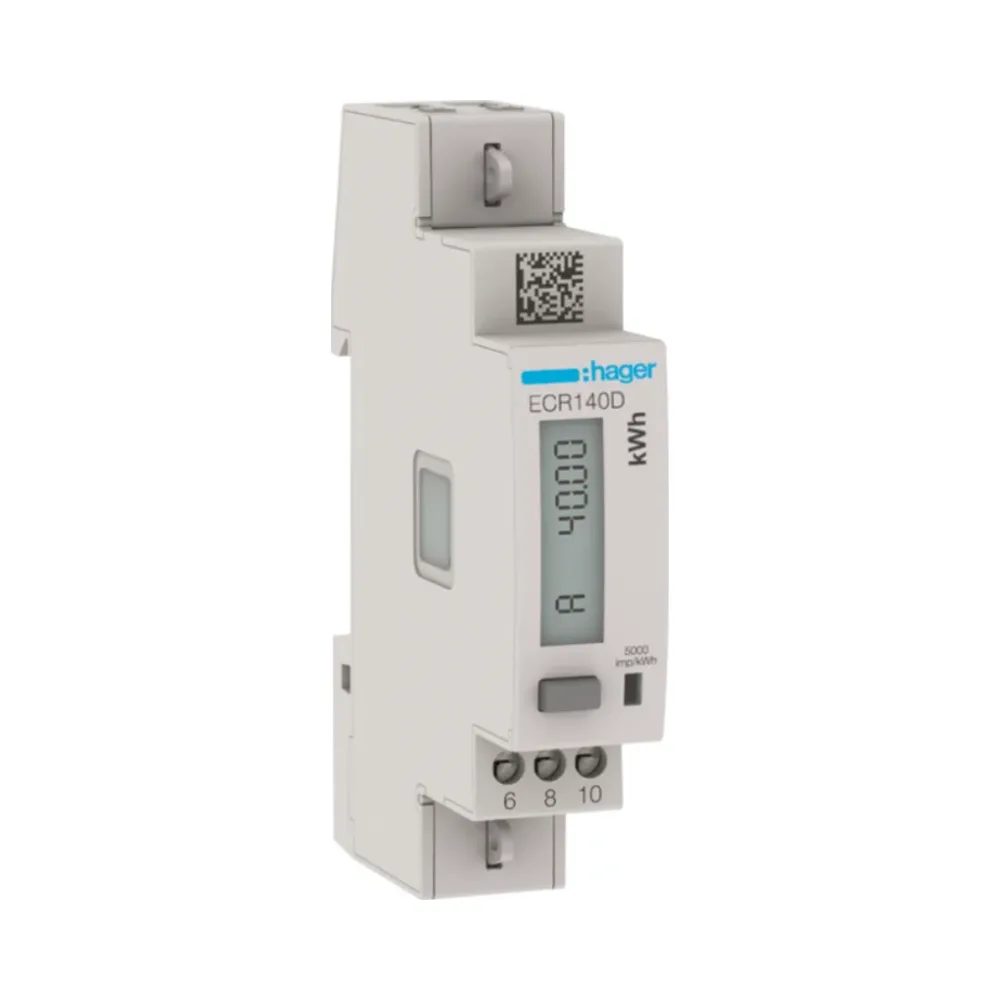

Hager ECR140D
The Hager ECR140D is a compact and efficient single-phase kWh meter designed for accurate energy measurement in residential, commercial, and industrial applications. Built with MODBUS communication capability, this MID-certified meter ensures seamless integration into energy monitoring systems. Its space-saving design and advanced features make it an ideal choice for DIN rail-mounted installations.
Key Features of Hager ECR140D 1 Phase kWh Meter
- MODBUS Communication: Seamless integration with MODBUS systems for precise energy monitoring.
- Compact Design: 1M width (18mm) for space-saving installations.
- Single-Phase Measurement: Designed for 1P+N systems with up to 40A direct connection.
- LCD Display: Clear and easy-to-read energy consumption data.
- MID Certified: Ensures compliance with measurement accuracy standards.
- DIN Rail Mounting: Quick and secure installation on DIN rails.
- Wide Voltage Range: Operates between 92-276V AC with a maximum voltage of 300V.
- Energy Efficiency: Consumes only 2VA power with a total power loss of 1W under nominal current.
- Robust Design: Rated for an operating temperature range of -25°C to 55°C, suitable for diverse environments.
Technical Specifications
Architecture:
- Bus System: MODBUS
- Number of Poles: 2P (1P+N)
Electrical Features:
- Rated Operational Voltage (Ue): 92-276V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 18mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 1W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: LCD
- Counter Type: Single-Phase
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Applications
The Hager ECR140D is ideal for:
- Residential: Monitor energy usage in homes and apartments.
- Commercial: Track power consumption in offices and retail spaces.
- Industrial: Measure energy in warehouses, factories, and facilities.
Why Choose the Hager ECR140D?
The Hager ECR140D kWh Meter offers unmatched precision, reliability, and ease of installation. Its MODBUS communication capability makes it a perfect fit for modern energy monitoring systems, while its compact design ensures it integrates seamlessly into space-constrained panels.
