Description
1 Phase kWh Meter Direct 40A 1M

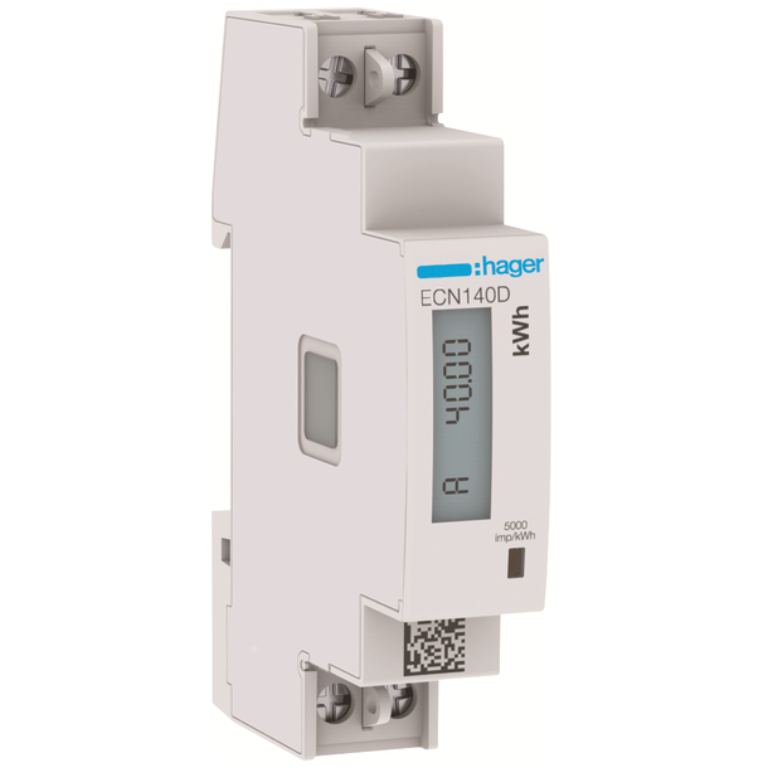

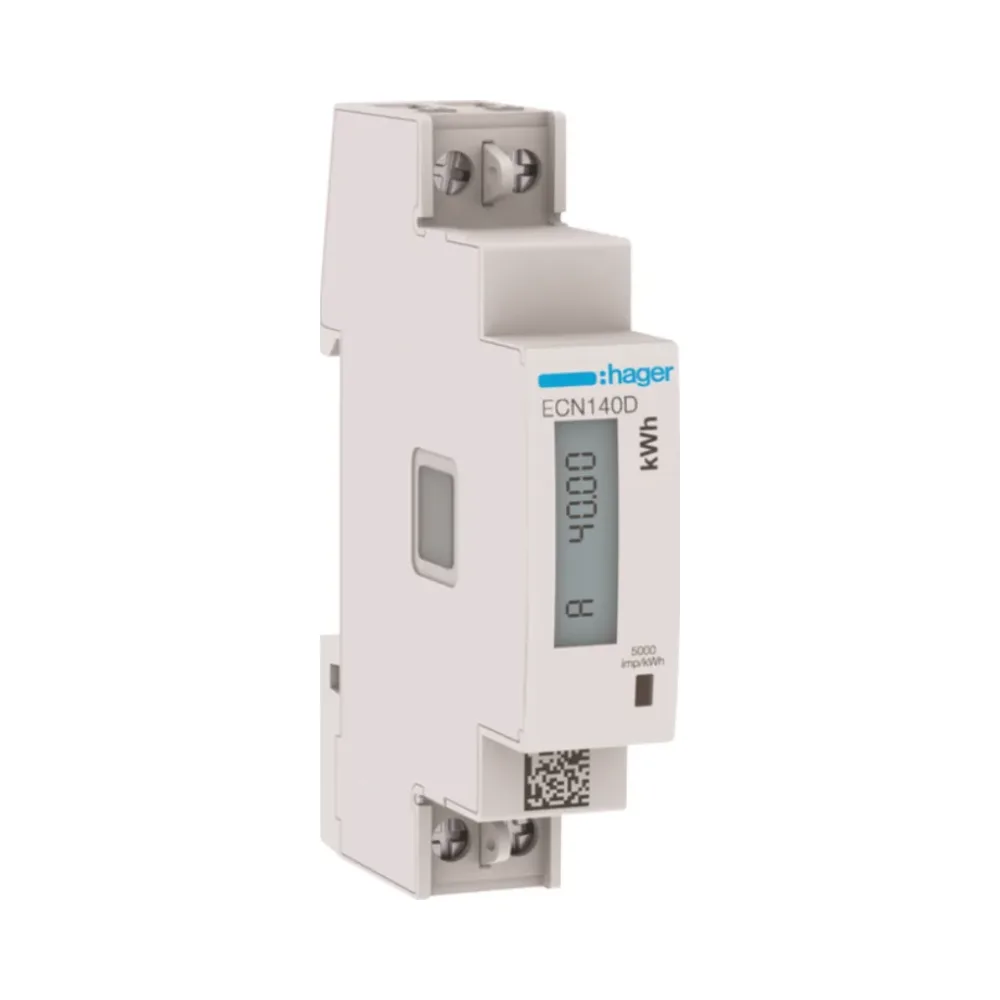

Hager ECN140D
The Hager ECN140D is a compact and reliable single-phase kWh meter designed for direct energy measurement up to 40A. This 1M device is ideal for residential and light commercial energy monitoring applications. Its LCD display provides clear energy usage data, while the DIN rail mounting ensures quick and easy installation.
Key Features of Hager ECN140D 1 Phase kWh Meter
- Direct 40A Measurement: Designed for single-phase systems with a maximum current capacity of 40A.
- Compact 1M Design: Space-saving width of 18mm for efficient panel integration.
- LCD Display: Provides clear and precise energy usage data.
- Single-Phase Counter: Ideal for 1P+N configurations in residential and commercial setups.
- DIN Rail Mounting: Simplifies installation and ensures secure placement.
- Energy Efficient: Consumes only 2VA power with a total power loss of 1W under nominal conditions.
- Durable Construction: Operates reliably within a temperature range of -25°C to 55°C.
- MID Certified: Compliant with international standards for accurate energy monitoring and billing.
Technical Specifications
Architecture:
- Number of Poles: 2P (1P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 184-276V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 58mm
- Height: 92mm
- Width: 18mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 1W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: LCD
- Counter Type: Single-Phase
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Applications
The Hager ECN140D is ideal for:
- Residential: Monitor household energy consumption with precision.
- Light Commercial: Track energy usage in small offices, retail spaces, and similar setups.
Why Choose the Hager ECN140D?
The Hager ECN140D offers a compact, reliable, and energy-efficient solution for single-phase energy monitoring. Its user-friendly LCD display and DIN rail compatibility make it a convenient choice for residential and commercial installations. The device’s MID certification ensures accuracy and compliance with international billing standards.
