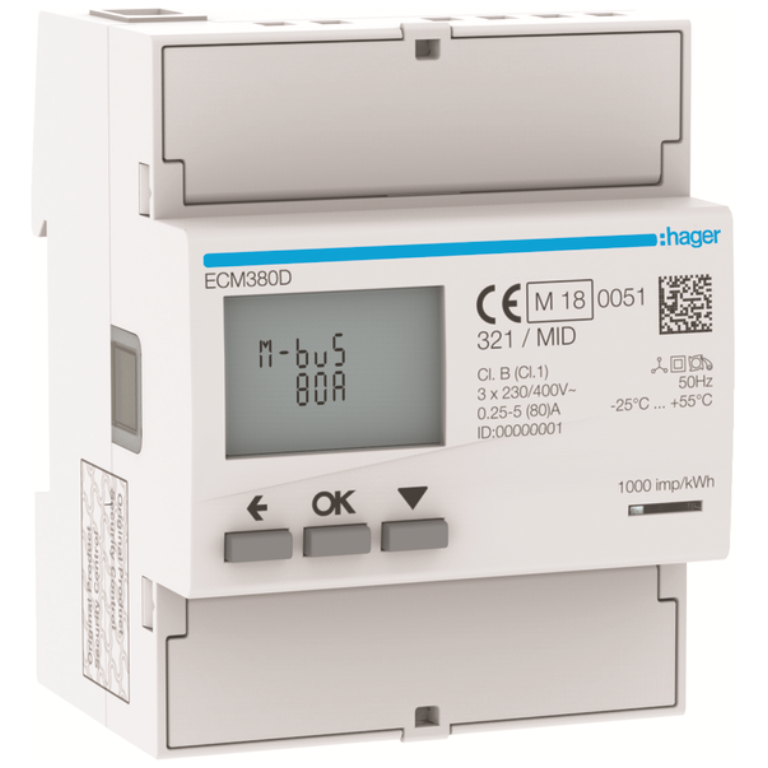

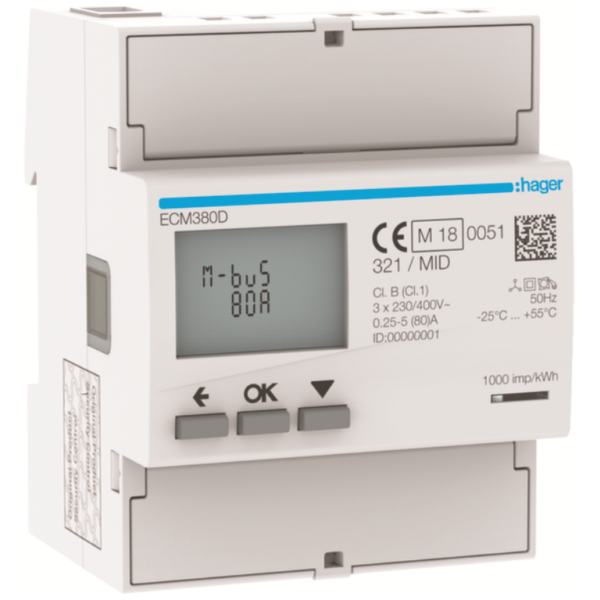

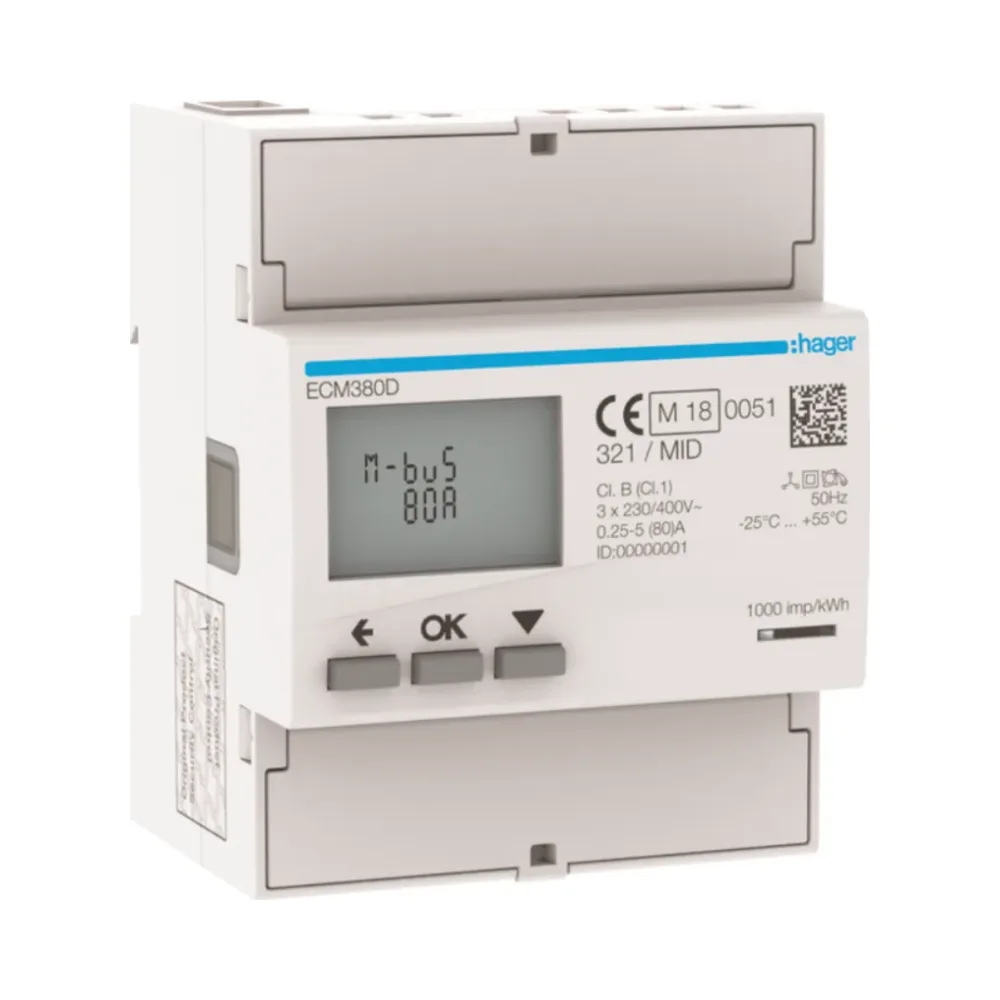

3 Phase kWh Meter Direct 80A 4M MBUS MID
Hager ECM380D
The Hager ECM380D is a versatile three-phase kWh meter designed for direct 80A measurement with MBUS communication. This 4M MID-certified meter combines precise energy monitoring with robust features, making it ideal for industrial, commercial, and utility applications. With its retro-illuminated display, compact design, and durable construction, it ensures efficient energy tracking and seamless integration into energy management systems.
Key Features of Hager ECM380D 3 Phase kWh Meter
- MBUS Communication: Enables real-time energy tracking and easy integration with energy management systems.
- Direct 80A Measurement: Supports moderate to high energy loads, ideal for diverse applications.
- Compact 4M Design: Space-efficient with a width of 72mm for streamlined panel installations.
- Retro-Illuminated Display: Ensures clear visibility of energy consumption data in all lighting conditions.
- Three-Phase Counter: Built for 3P+N systems, ensuring reliable and accurate energy tracking.
- MID Certified: Compliant with international standards for billing and energy management accuracy.
- DIN Rail Mounting: Quick and secure installation on DIN rail systems.
- Energy Efficiency: Consumes just 2VA power with a total power loss of 0.6W under nominal current.
- Durable Performance: Operates reliably in temperatures ranging from -25°C to 55°C.
Technical Specifications
Architecture:
- Number of Poles: 4P (3P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-480V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 72mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 0.6W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: Retro-Illuminated Display
- Counter Type: 4 Wires Counter
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Installation:
- Tightening Torque: 2 Nm
Applications
The Hager ECM380D is ideal for:
- Industrial: Monitor energy consumption in factories, warehouses, and production facilities.
- Commercial: Track power usage in offices, retail outlets, and hospitality environments.
- Utilities: Suitable for monitoring energy in public infrastructure and utility applications.
Why Choose the Hager ECM380D?
The Hager ECM380D offers a perfect balance of precision, reliability, and compatibility. With MBUS communication, it seamlessly integrates into energy management systems for real-time monitoring. Its compact 4M design and MID certification ensure space efficiency and accuracy, making it a trusted solution for diverse energy monitoring needs.
