Description
3 Phase kWh Meter Direct 125A 6M MBUS MID

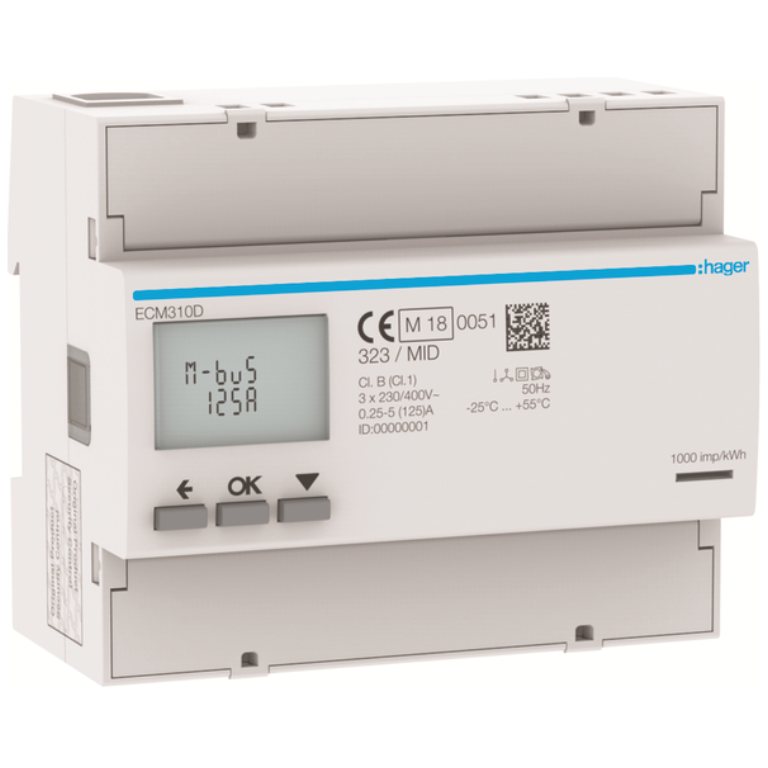

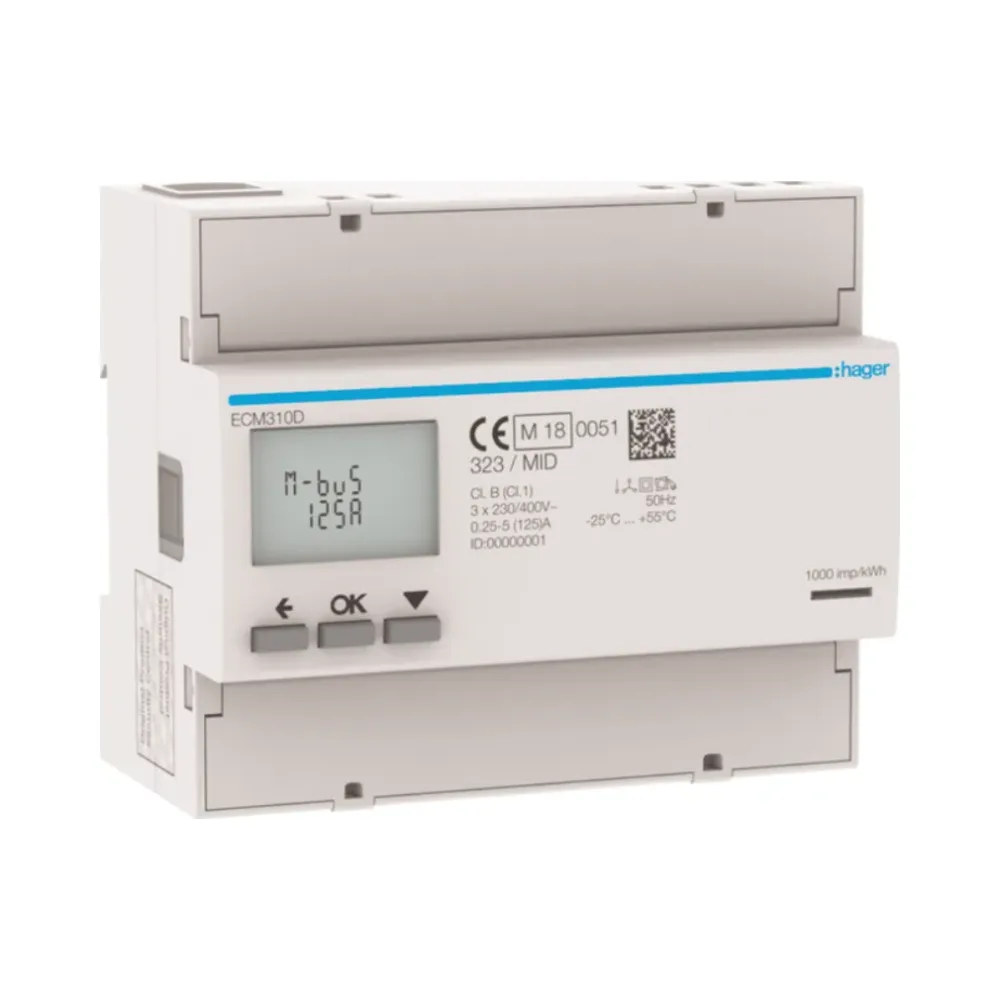

Hager ECM310D
The Hager ECM310D is a high-capacity three-phase kWh meter designed for direct measurement up to 125A with MBUS communication. This 6M MID-certified meter is ideal for industrial, commercial, and large-scale energy monitoring applications. Featuring a retro-illuminated display, durable construction, and seamless integration with energy management systems, it ensures precise and efficient energy tracking.
Key Features of Hager ECM310D 3 Phase kWh Meter
- MBUS Communication: Enables seamless integration into energy management systems for real-time data monitoring.
- Direct 125A Measurement: Handles heavy energy loads, making it suitable for demanding applications.
- Compact 6M Design: Space-efficient with a width of 107mm, perfect for panel installations.
- Retro-Illuminated Display: Ensures clear visibility of energy data in any lighting condition.
- Three-Phase Counter: Designed for 3P+N systems, offering accurate and reliable energy tracking.
- MID Certified: Compliant with international standards for accurate billing and energy management.
- DIN Rail Mounting: Allows for quick and secure installation on DIN rail systems.
- Energy Efficiency: Consumes only 2VA power with a total power loss of 0.6W under nominal current.
- Wide Operating Temperature Range: Functions reliably in environments from -25°C to 55°C.
Technical Specifications
Architecture:
- Number of Poles: 4P (3P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-480V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 107mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 0.6W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: Retro-Illuminated Display
- Counter Type: 4 Wires Counter
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Installation:
- Tightening Torque: 5 Nm
Applications
The Hager ECM310D is ideal for:
- Industrial: Monitor power consumption in factories, warehouses, and manufacturing plants.
- Commercial: Track energy usage in large office buildings, retail spaces, and hospitality venues.
- Utilities: Suitable for energy monitoring in public infrastructure and utility facilities.
Why Choose the Hager ECM310D?
The Hager ECM310D stands out with its 125A capacity, MBUS communication, and three-phase energy monitoring capability. Its compact 6M design ensures efficient use of space, while the MID certification guarantees precision for billing and energy management. Built to handle demanding applications, this meter is a reliable choice for accurate and efficient energy tracking.
