1 Phase kWh Meter Direct 40A 1M MBUS MID

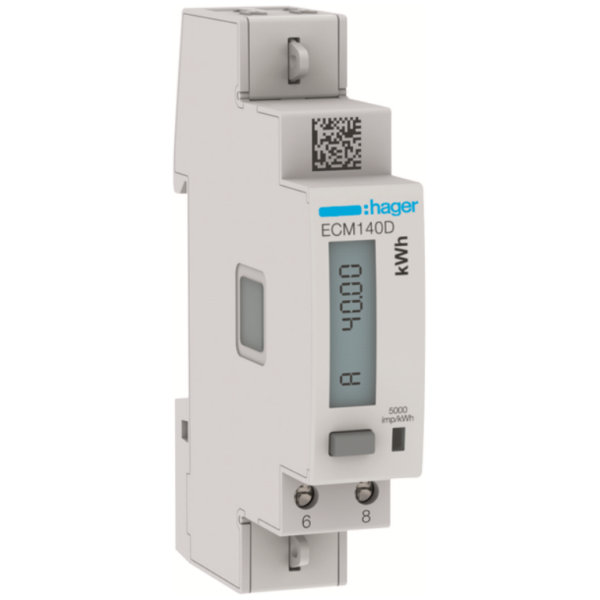

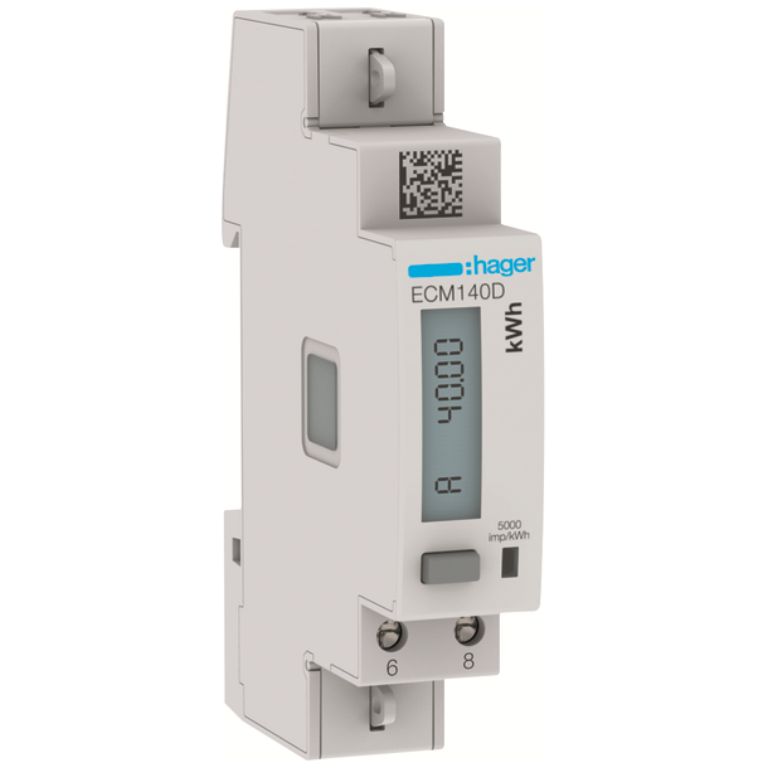

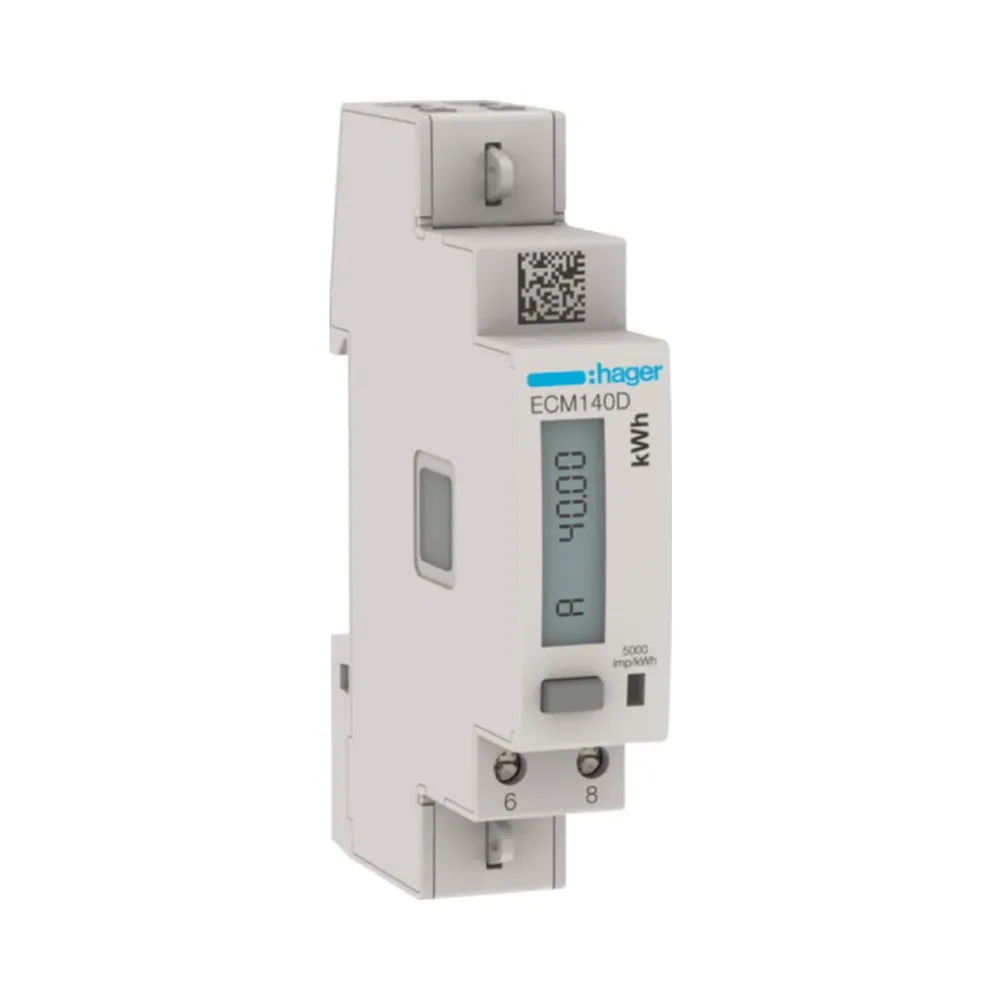

Hager ECM140D
The Hager ECM140D is a high-performance single-phase kWh meter designed for direct energy measurement up to 40A with MBUS communication. This 1M MID-certified meter is compact and efficient, making it an excellent choice for residential and light commercial energy monitoring applications. Its integration with MBUS systems ensures seamless communication for advanced energy management.
Key Features of Hager ECM140D 1 Phase kWh Meter
- MBUS Communication: Allows seamless integration with energy management systems for real-time monitoring and data tracking.
- Direct 40A Measurement: Designed for single-phase systems with a maximum current capacity of 40A.
- Compact 1M Design: Space-saving width of 18mm for efficient panel installations.
- LCD Display: Provides clear and precise real-time energy usage data.
- Single-Phase Counter: Optimized for 1P+N configurations in residential and commercial setups.
- DIN Rail Mounting: Simplifies installation and ensures a secure, professional fit.
- Energy Efficient: Consumes only 2VA power with a total power loss of 1W under nominal conditions.
- Durable Construction: Operates reliably across a temperature range of -25°C to 55°C.
Technical Specifications
Architecture:
- Number of Poles: 2P (1P+N)
- Fixing Mode: DIN rail type O (symmetrical)
Electrical Features:
- Rated Operational Voltage (Ue): 92-276V AC
- Frequency: 50Hz
- Max Operating Voltage: 300V
- Rated Impulse Withstand Voltage: 6kV
Physical Dimensions:
- Depth: 60mm
- Height: 92mm
- Width: 18mm
Power Consumption:
- Power Consumed: 2VA
- Total Power Loss: 1W
Measurement:
- Type: Electronic Measuring Instrument
Display and Counter:
- Display: LCD
- Counter Type: Single-Phase
Standards and Protection:
- Protection Index: IP20
- European Directive WEEE: Concerned
Operating Conditions:
- Operating Temperature: -25°C to 55°C
Applications
The Hager ECM140D is ideal for:
- Residential: Accurately monitor energy consumption in households.
- Light Commercial: Track energy usage in small offices, retail spaces, and other commercial environments.
Why Choose the Hager ECM140D?
The Hager ECM140D combines precision, compact design, and advanced MBUS communication, making it a reliable choice for modern energy management. Its 1M size ensures efficient panel integration, while the MID certification guarantees measurement accuracy and billing compliance.
