Multifunction Measurement Device 96×96 RS485

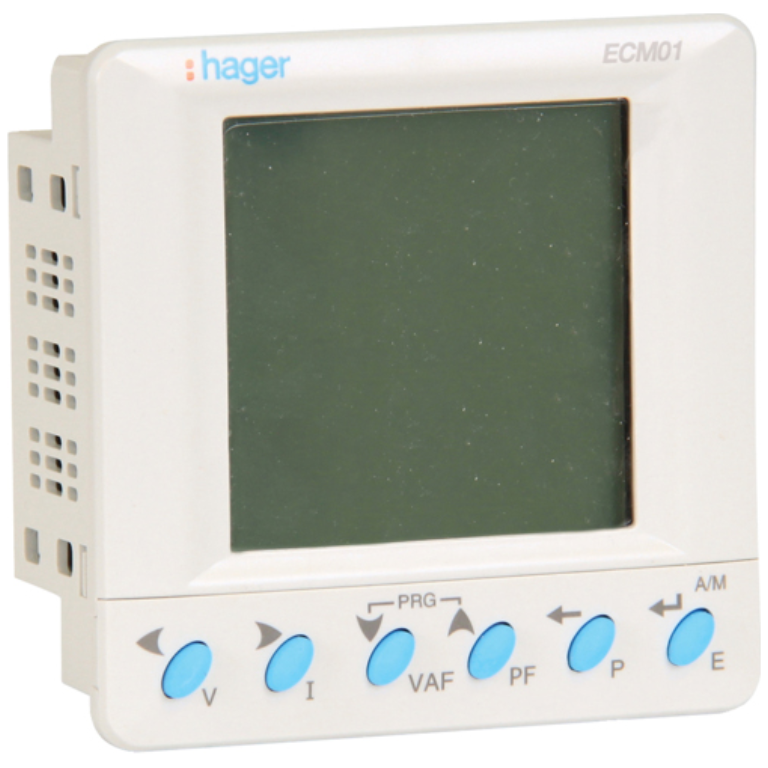

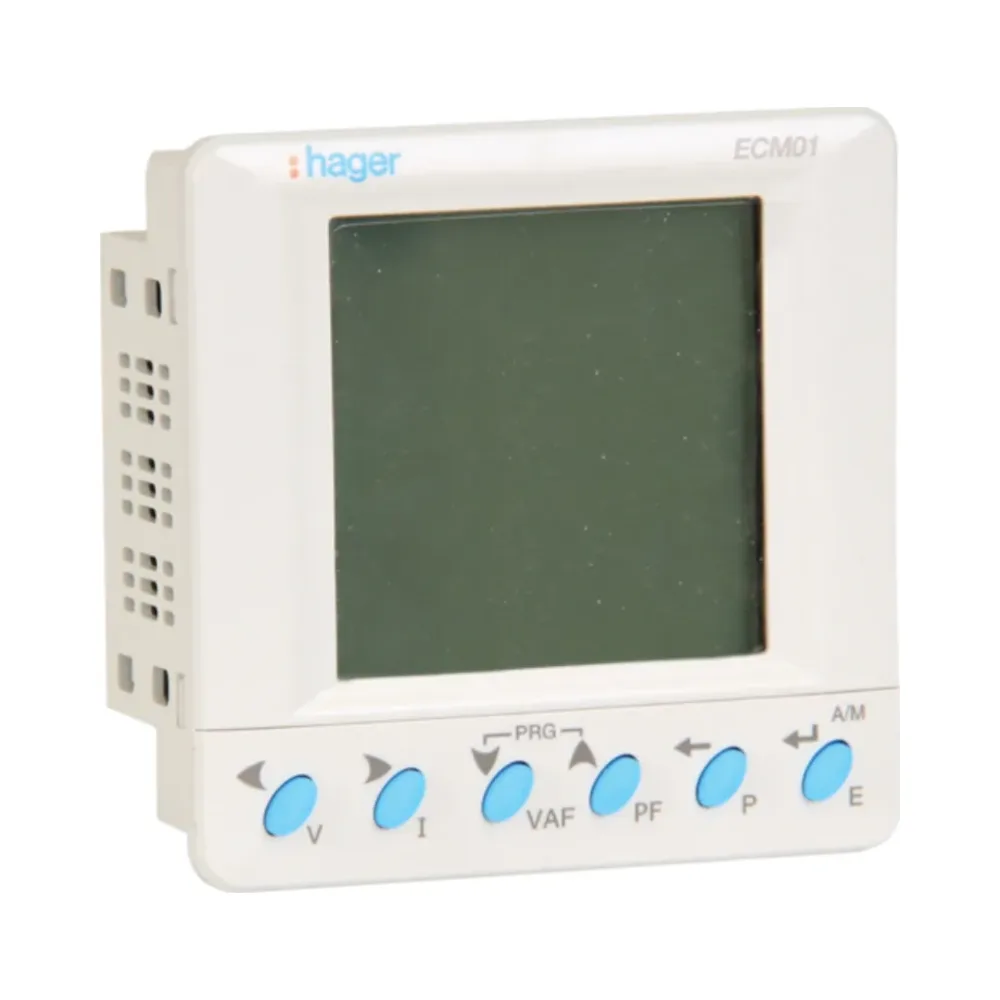

Hager ECM01
The Hager ECM01 Multifunction Measurement Device is a compact and versatile solution for monitoring and analyzing electrical parameters in single-phase or three-phase systems. Designed with RS485 communication and a 96x96mm form factor, it provides accurate measurement and seamless integration into energy management systems, making it suitable for industrial and commercial applications.
Key Features of Hager ECM01 Multifunction Measurement Device
- Multifunction Measurement: Supports both single-phase (1P+N) and three-phase (3P+N) systems for comprehensive energy monitoring.
- Wide Voltage Input Range: Rated for 100-240V AC (L-N) and 173-415V AC (L-L).
- RS485 Communication: Enables integration with advanced energy management systems for real-time monitoring.
- Current Transformer (CT) Compatibility: Works with CT primary inputs from 5A to 10,000A and CT secondary at 330mV.
- Voltage Transformer (VT) Compatibility: VT primary range of 100V to 500kV and secondary range of 173-415V AC (L-L).
- Pulse Output: Configurable output from 5-27V DC with a maximum current of 100mA for integration with external systems.
- Self-Supplied Auxiliary Power: Draws power directly from L1 phase, reducing installation complexity.
- Compact Design: Fits into a 96x96mm cutout for easy installation in standard panels.
- Energy Efficiency: Low voltage rated burden of <6VA on L1 and <0.2VA on L2 and L3.
Technical Specifications
Electrical Input:
- Wiring Input: 3 Phase 4 Wire / 1 Phase 2 Wire
- Rated Input Voltage: 100-240V AC (L-N), 173-415V AC (L-L)
- Frequency Range: 45-65Hz
Current Transformer (CT):
- Primary: 5A to 10,000A
- Secondary: 330mV (Nominal) / 396mV (Maximum x1.2)
Voltage Transformer (VT):
- Primary: 100V to 500kV
- Secondary: 173-415V AC (L-L)
Pulse Output:
- Voltage: 5-27V DC
- Maximum Current: 100mA
- Pulse Width: 0.1-2.0 sec
Environmental Conditions:
- Operating Temperature: -10°C to +55°C
- Storage Temperature: -20°C to +70°C
- Humidity: 0-85% (Non-condensing)
Physical Characteristics:
- Installation Category: III
- Weight: 230g
Applications
The Hager ECM01 is ideal for:
- Industrial: Monitor and analyze energy consumption in manufacturing plants and factories.
- Commercial: Track energy usage in large offices, retail spaces, and data centers.
- Utilities: Integrate into public infrastructure for advanced energy monitoring.
Why Choose the Hager ECM01?
The Hager ECM01 Multifunction Measurement Device delivers comprehensive and precise monitoring of electrical parameters. With its compatibility for CT and VT inputs, RS485 communication, and compact design, it is an excellent choice for advanced energy management systems. Its robust build ensures durability and reliability in demanding environments.
