3 Phase Current Transformer with RJ45 Output – 60A/330mV 35mm
Hager EC2560CT

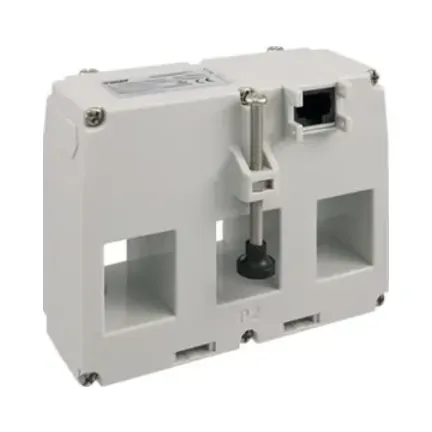

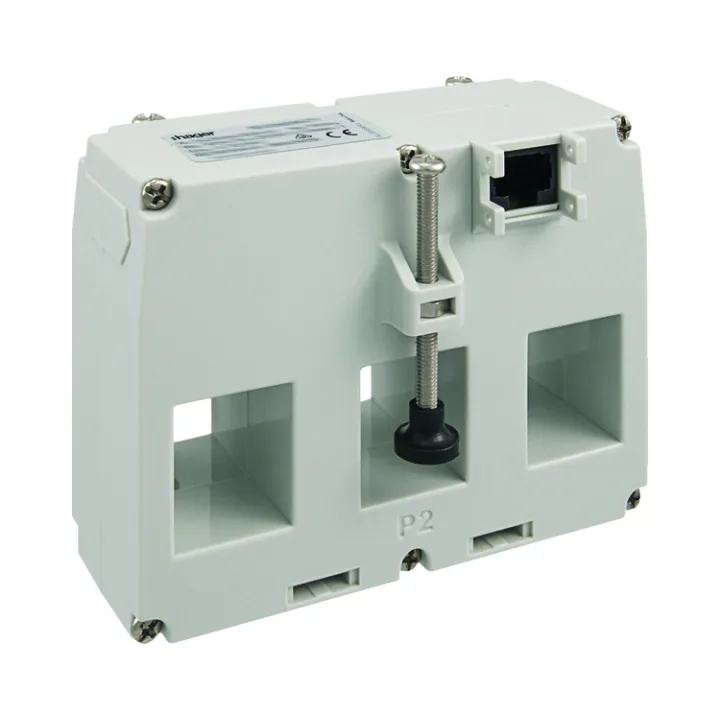

The Hager EC2560CT is a versatile 3-phase current transformer designed for systems with a primary current of up to 60A. With a 330mV output and RJ45 connectivity, it offers seamless integration with advanced energy management systems. Its larger 35mm aperture provides flexibility for diverse installation requirements, making it a reliable choice for commercial and industrial applications.
Key Features of Hager EC2560CT 3 Phase Current Transformer
- 60A Primary Rating: Suitable for monitoring 3-phase systems with up to 60A load capacity.
- 330mV Output Signal: RJ45 connectivity ensures compatibility with modern energy monitoring systems.
- Class 1 Accuracy: Certified to IEC/EN60044-8 and IEC/EN61869-2 standards for precision.
- Wide Frequency Range: Operates effectively between 47Hz and 63Hz.
- Thermal and Dynamic Current Ratings:
- Continuous Overcurrent: 1.2x rated current
- Short-Time Thermal Current (Ith): <60x rated current for 1 second
- Dynamic Current (Idyn): 2.5x Ith
- High Insulation Level: Rated at 3kV r.m.s., 50Hz for 1 minute for safe operation.
- 35mm Aperture: Accommodates larger cables and simplifies installation.
- Durable Construction: Made from self-extinguishing polycarbonate with IP40-rated housing and IP20 terminals.
- Environmental Resilience: Operates reliably between -25°C and 40°C and stores safely from -40°C to 85°C.
Technical Specifications
Electrical Characteristics:
- Primary Current: 60A
- Output: 330mV
- Accuracy Class: Class 1
- Frequency Range: 47-63Hz
- Highest Voltage (Um): 0.72kV r.m.s.
- Continuous Overcurrent: 1.2x rated current
- Short-Time Thermal Current (Ith): <60x rated current for 1 second
- Dynamic Current (Idyn): 2.5x Ith
Insulation and Safety:
- Rated Secondary Burden: >5kΩ
- Insulation Level: 3kV r.m.s., 50Hz, 1 minute
Environmental Conditions:
- Operating Temperature: -25°C to 40°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: ≤85% (Non-condensing)
- Altitude: ≤2000m
Physical Characteristics:
- Housing Material: Self-extinguishing polycarbonate
- Housing IP Rating: IP40
- Terminal IP Rating: IP20
Compliance:
- Certifications: CE, RoHS
Applications
The Hager EC2560CT is ideal for:
- Industrial: Monitor energy usage in compact systems and small machinery setups.
- Commercial: Track energy consumption in offices, retail spaces, and data centers.
- Utilities: Provide accurate current measurements for public infrastructure energy monitoring.
Why Choose the Hager EC2560CT?
The Hager EC2560CT offers reliable performance, precision, and flexible installation with its 35mm aperture. Its RJ45 connectivity allows seamless integration with energy management systems, while compliance with international standards ensures safety and durability for diverse energy monitoring applications.
