3 Phase Current Transformer with RJ45 Output – 60A/330mV 25mm

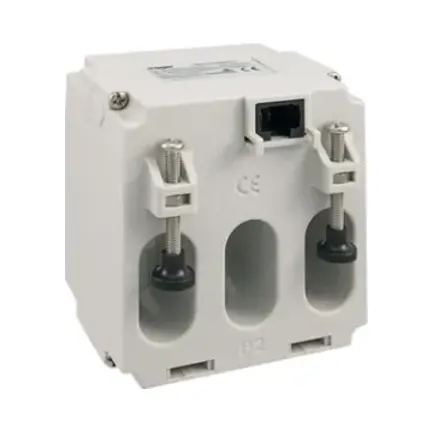

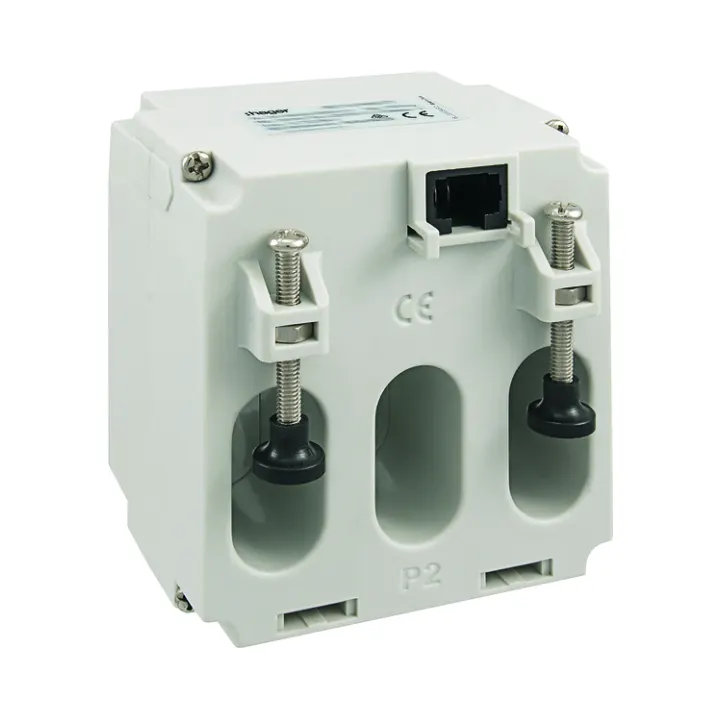

Hager EC1260CT
The Hager EC1260CT is a compact and reliable 3-phase current transformer designed for systems with a primary current of up to 60A. Its 330mV output via RJ45 ensures seamless compatibility with modern energy management systems. With a 25mm aperture and compliance with IEC/EN standards, this transformer is ideal for precision monitoring in commercial and industrial applications.
Key Features
- 60A Primary Rating: Designed for monitoring 3-phase systems with up to 60A load capacity.
- 330mV Output Signal: RJ45 connectivity allows easy integration with advanced energy monitoring systems.
- Class 1 Accuracy: Certified to IEC/EN60044-8 and IEC/EN61869-2 standards for reliable measurement.
- Wide Frequency Range: Operates effectively between 47Hz and 63Hz.
- Thermal and Dynamic Current Ratings:
- Continuous Overcurrent: 1.2x rated current
- Short-Time Thermal Current (Ith): <60x rated current for 1 second
- Dynamic Current (Idyn): 2.5x Ith
- High Insulation Level: Rated at 3kV r.m.s., 50Hz for 1 minute to ensure safety in operation.
- Compact Aperture: 25mm diameter for easy installation in tight spaces.
- Durable Construction: Housed in self-extinguishing polycarbonate with IP40-rated housing and IP20 terminals.
- Environmental Resilience: Operates reliably between -25°C and 40°C, with safe storage from -40°C to 85°C.
Technical Specifications
Electrical Characteristics:
- Primary Current: 60A
- Output: 330mV
- Accuracy Class: Class 1
- Frequency Range: 47-63Hz
- Highest Voltage (Um): 0.72kV r.m.s.
- Continuous Overcurrent: 1.2x rated current
- Short-Time Thermal Current (Ith): <60x rated current for 1 second
- Dynamic Current (Idyn): 2.5x Ith
Insulation and Safety:
- Rated Secondary Burden: >5kΩ
- Insulation Level: 3kV r.m.s., 50Hz, 1 minute
Environmental Conditions:
- Operating Temperature: -25°C to 40°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: ≤85% (Non-condensing)
- Altitude: ≤2000m
Physical Characteristics:
- Housing Material: Self-extinguishing polycarbonate
- Housing IP Rating: IP40
- Terminal IP Rating: IP20
Compliance:
- Certifications: CE, RoHS
Applications
The Hager EC1260CT is ideal for:
- Industrial: Monitor energy usage in small machinery and equipment.
- Commercial: Track energy consumption in retail spaces, small offices, and data centers.
- Utilities: Provide precise current measurements for smaller-scale public infrastructure energy monitoring setups.
Why Choose the Hager EC1260CT?
The Hager EC1260CT offers precision and compact design, making it a dependable choice for smaller energy systems. Its RJ45 connectivity ensures seamless integration with modern energy management solutions, while compliance with international standards guarantees reliability and safety.
