Advanced Arc Fault Detection with Type A RCBO Protection – Compact 1 Module Design

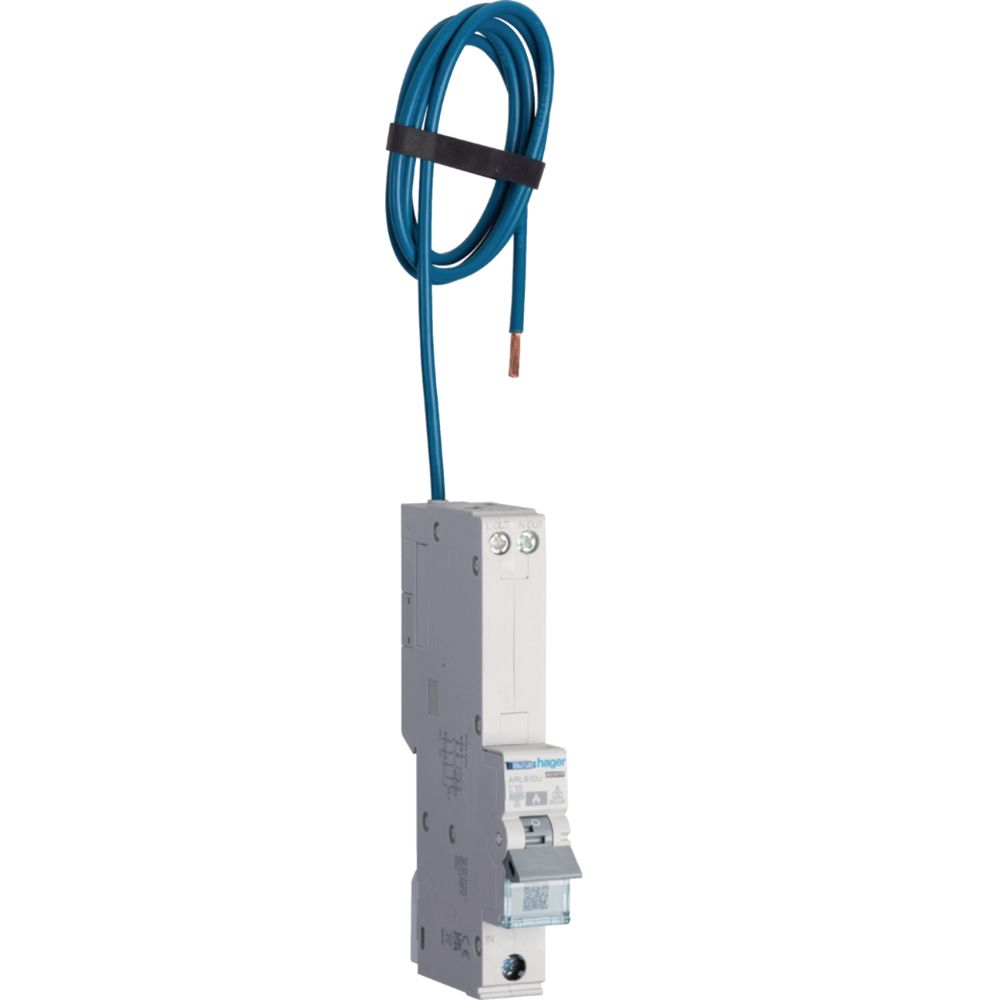

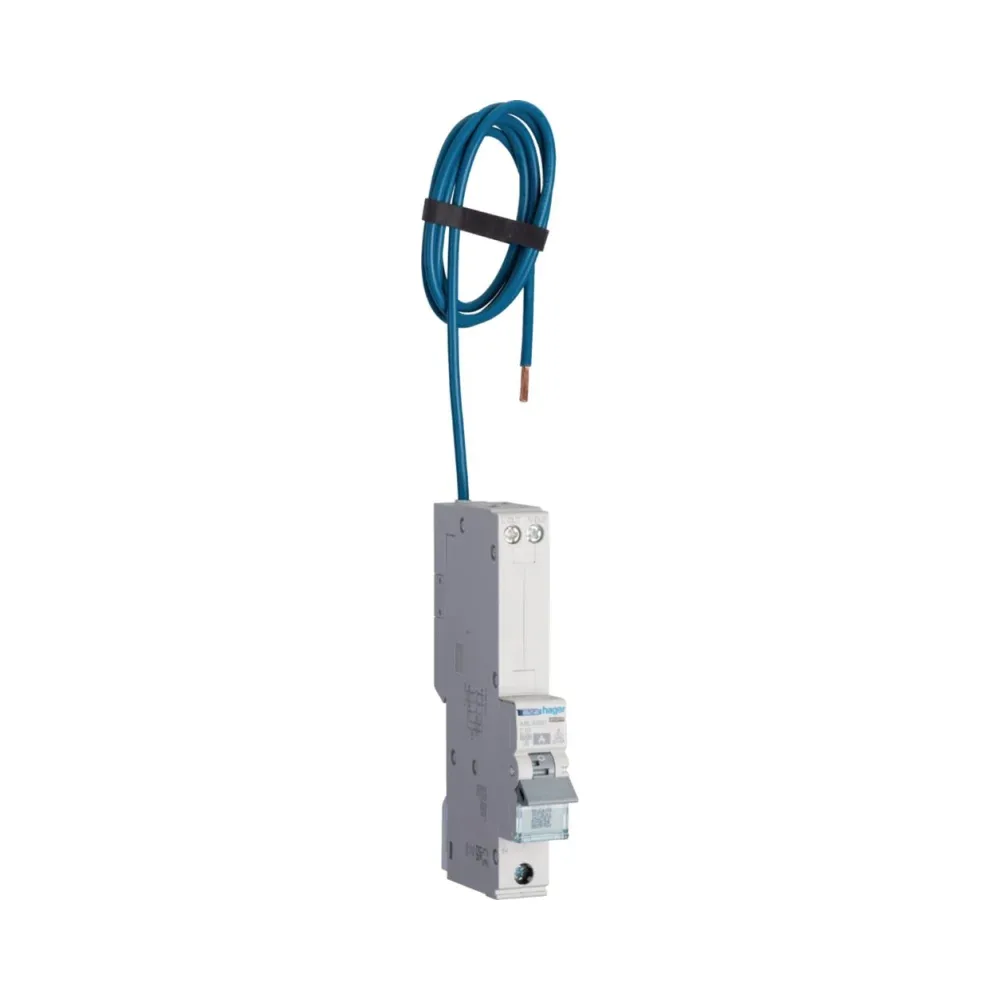

Hager ARL960U AFDD
The Hager ARL960U AFDD with 10A RCBO is a compact, intelligent protective device that combines arc fault detection with Type A residual current protection and Curve C tripping. Designed for final circuits with modest loads and moderate inrush currents, it offers full protection against short circuits, overloads, residual currents, and arc faults—all in a single module.
Its 1-metre neutral fly lead ensures compatibility with Hager TPN Distribution Boards, simplifying installation even where space is limited. Ideal for both commercial and residential applications, this device also includes onboard diagnostics and Bluetooth support via the Hager ProTools system and Hager Pilot app.
Key Features – Hager ARL960U AFDD with 10A RCBO
- 10A, 6kA 1P+N RCBO with arc fault detection
- Tripping curve C, RCD type A (AC and pulsating DC sensitivity)
- 30mA residual current protection
- 1 module width (17.5mm) for space-saving installations
- 1 metre neutral fly lead for easy installation in Hager Invicta TPN boards
- Compatible with Hager consumer units and Invicta range
- ProTools onboard diagnostics with 8 LED status indicators
- Bluetooth-enabled updates and fault checking via Hager Pilot app
- Suitable for retrofit and new installations
- Fully compliant with Amendment 2 of the 18th Edition Wiring Regulations
- Certified to EN 61009-1 and EN 62606
Technical Overview – Hager ARL960U AFDD with 10A RCBO
Electrical performance
- Rated current: 10A (up to 11.3A at -25°C)
- Breaking capacity: 6kA (IEC 61009-1 and IEC 60898-1)
- Residual operating current (Idn): 30mA
- Operational voltage: 230V AC
- Frequency: 50Hz
Mechanical and installation
- Module width: 17.5mm
- Height: 125mm
- Depth: 70mm
- Terminal torque: top 2.4Nm, bottom 3.5Nm
- Top connection: screw terminal
- Bottom connection: bi-connect
- Pole configuration: 1P+N (double pole switching)
Environmental ratings
- Operating temperature: -25°C to +70°C
- Storage temperature: -25°C to +80°C
- Energy limitation class: I²t Class 3
- Ingress protection: IP20
Endurance
- Mechanical operations: 8,000 cycles
- Electrical operations: 2,000 cycles
What’s Included
- 1 x Hager ARL960U AFDD 10A Type A RCBO
- 1 x 1m neutral fly lead
- Integrated onboard diagnostics and Bluetooth functionality
Why Choose This Product?
The ARL960U AFDD offers all-in-one protection for 10A final circuits, making it an ideal choice for lighting or control circuits where arc faults must be mitigated. The 1-metre fly lead provides flexibility during wiring and installation, particularly in Hager Invicta TPN boards. With onboard diagnostics and Bluetooth-enabled fault identification, this unit ensures safety, efficiency, and future-ready functionality for modern electrical systems.
Guarantee and Compliance
Supplied with a 1-year manufacturer’s warranty from Hager. This device is tested to EN 61009-1 and EN 62606 and complies with Amendment 2 of the 18th Edition Wiring Regulations.
Summary
Hager ARL960U AFDD is a 10A Type A RCBO with Curve C tripping and arc fault detection. Featuring a 1m fly lead and smart diagnostics, it fits neatly into Hager Invicta TPN boards and provides advanced circuit protection in a compact footprint.
