Description
Hafele Loox5 Infrared Modular Motion Sensor Switch for Aluminium Profiles – 24V 120W
- For monochromatic 8 mm Loox5 LED strip lights in aluminium profiles
- Suitable for Loox5 profiles:
- 1103
- 1105
- 2101
- 2102
- 2103
- 2104

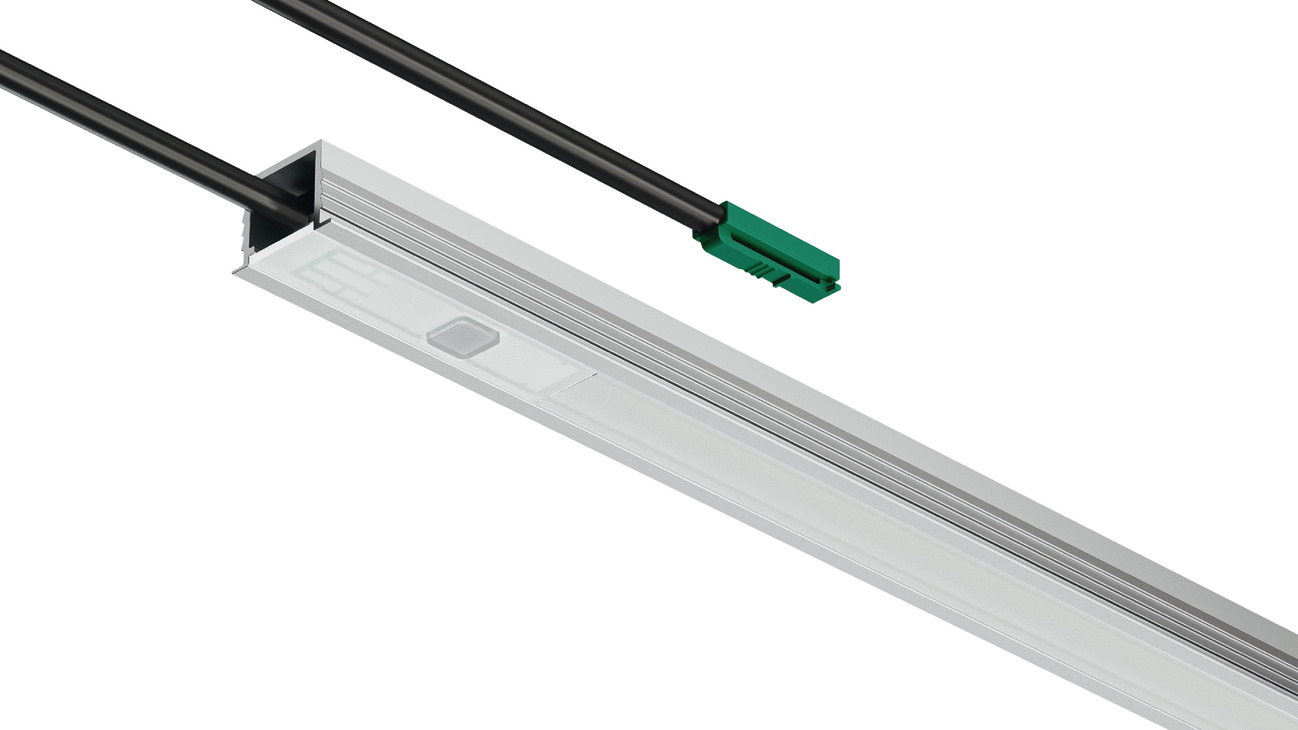

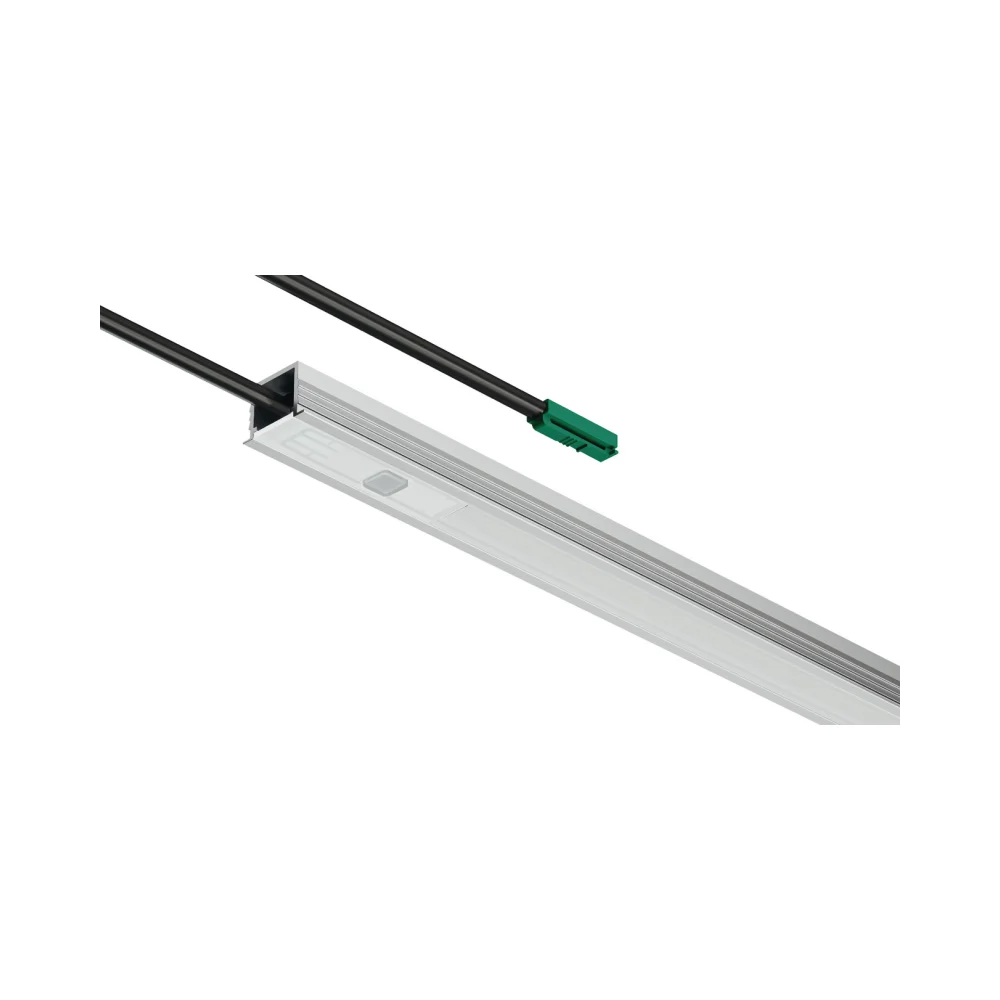

- Installation: For sliding into aluminium profile

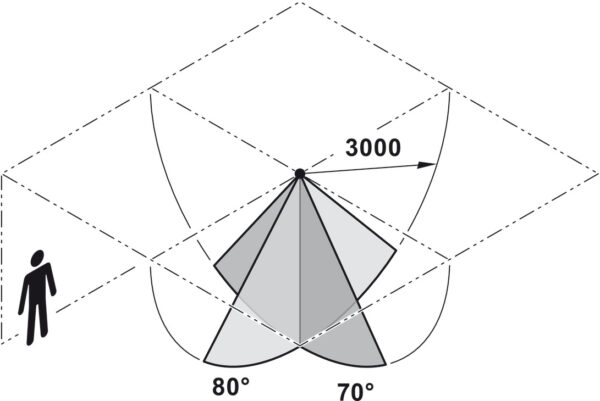

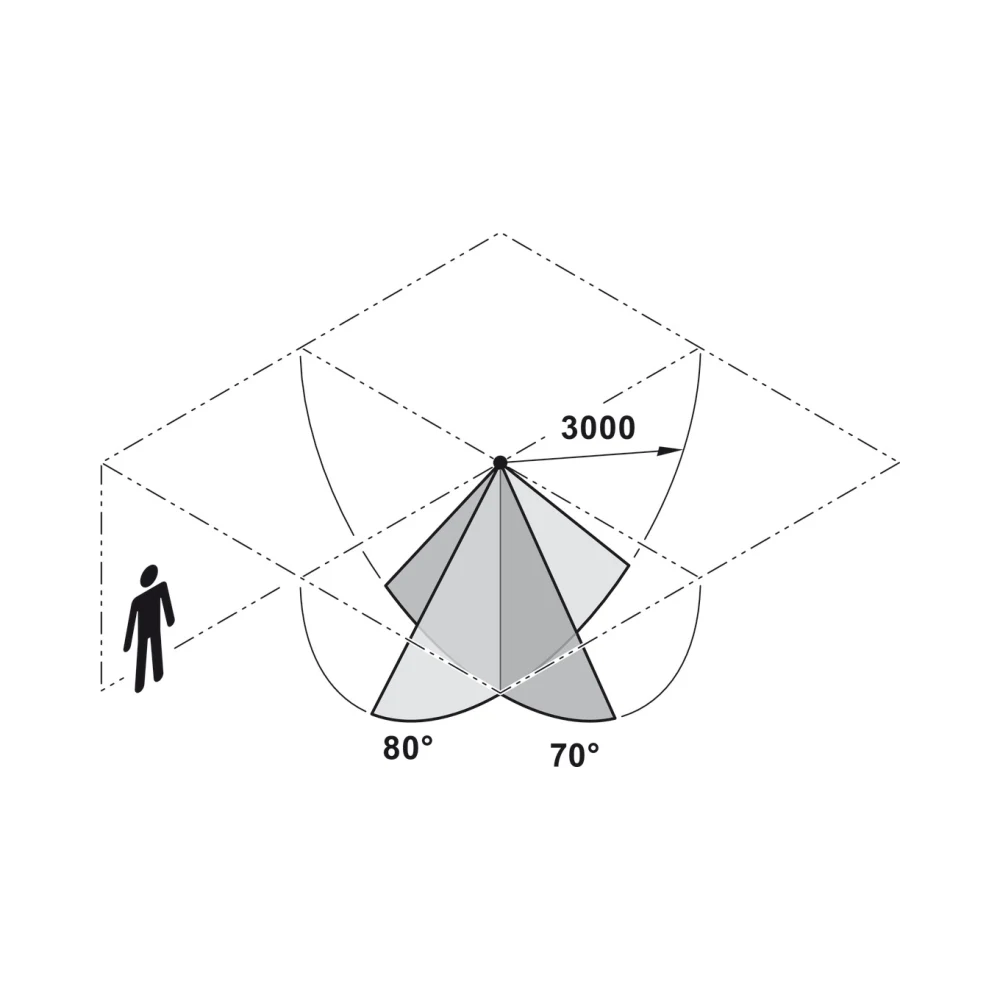

- Sensor range: 3000 mm
- Sensor angle: 80°
- Sensor angle vertical: 70°
- Delay: 60 seconds
- Switched outputs: 1x Clip, Loox5 LED strip 8 mm monochrome
- Supplied with:

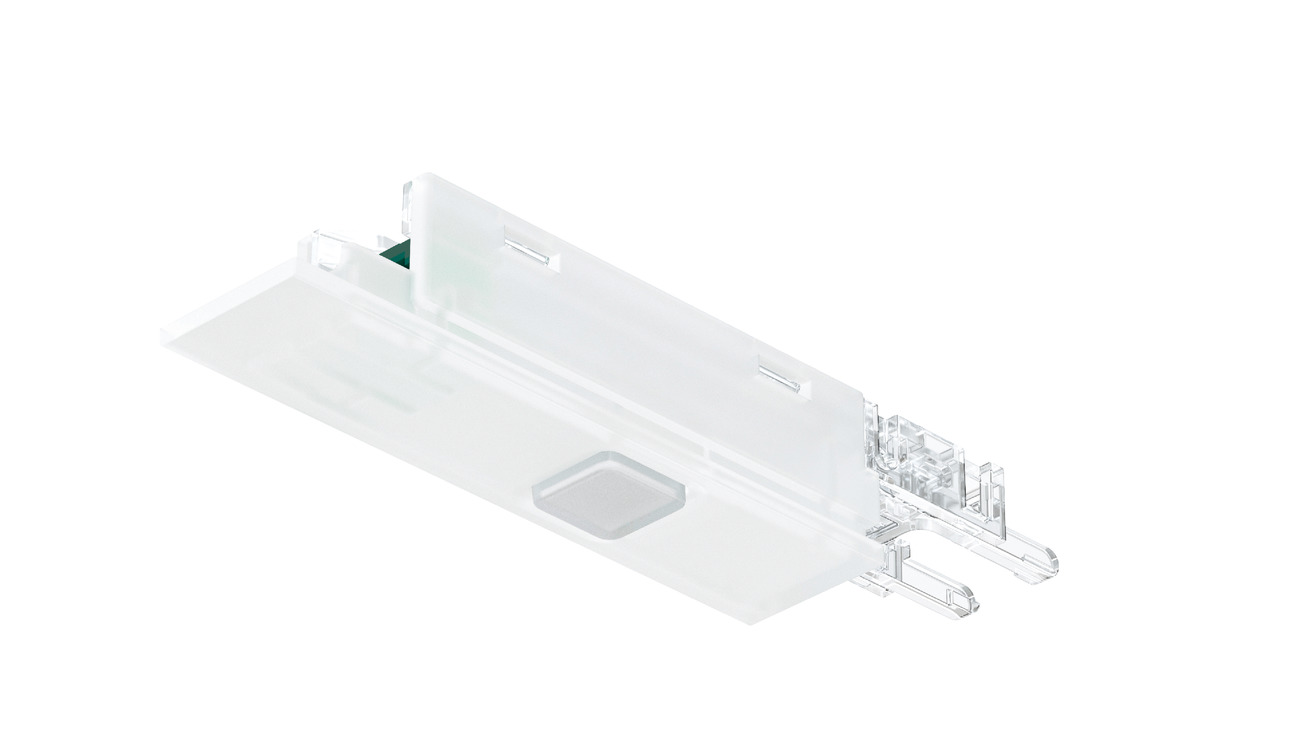

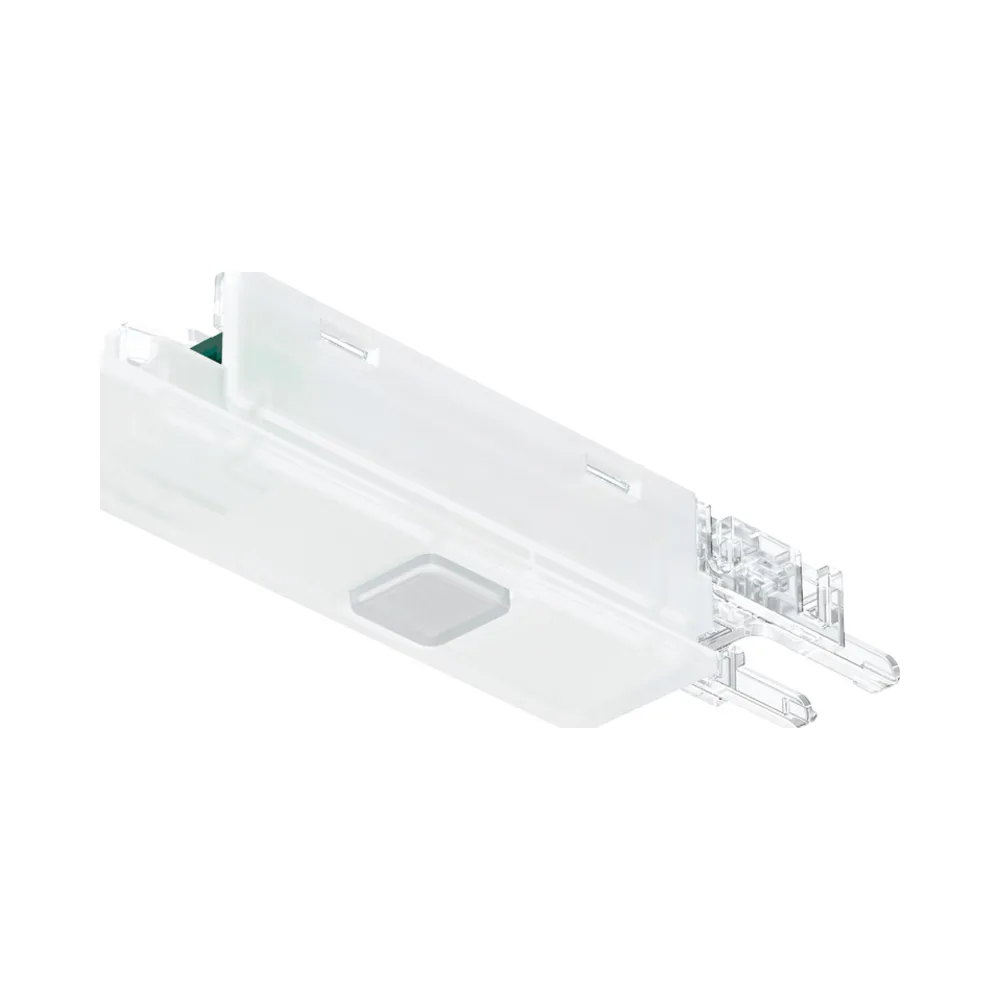

- 1x motion detector – Loox5 modular with catch 2 pole 24 V
- Opal coloured plastic
| Version | Automatic on/off switching |
|---|---|
| Wattage | 90 W |
| Input ports | 1 x plug Loox5 2-pin 24 V |
| Connected output ports | 1 x Clip Loox5 LED strip light 8 mm monochrome |
| Low voltage plug | Loox5 2-pin 24 V |
| Switching function | Automatic on/off |
| Memory function | No |

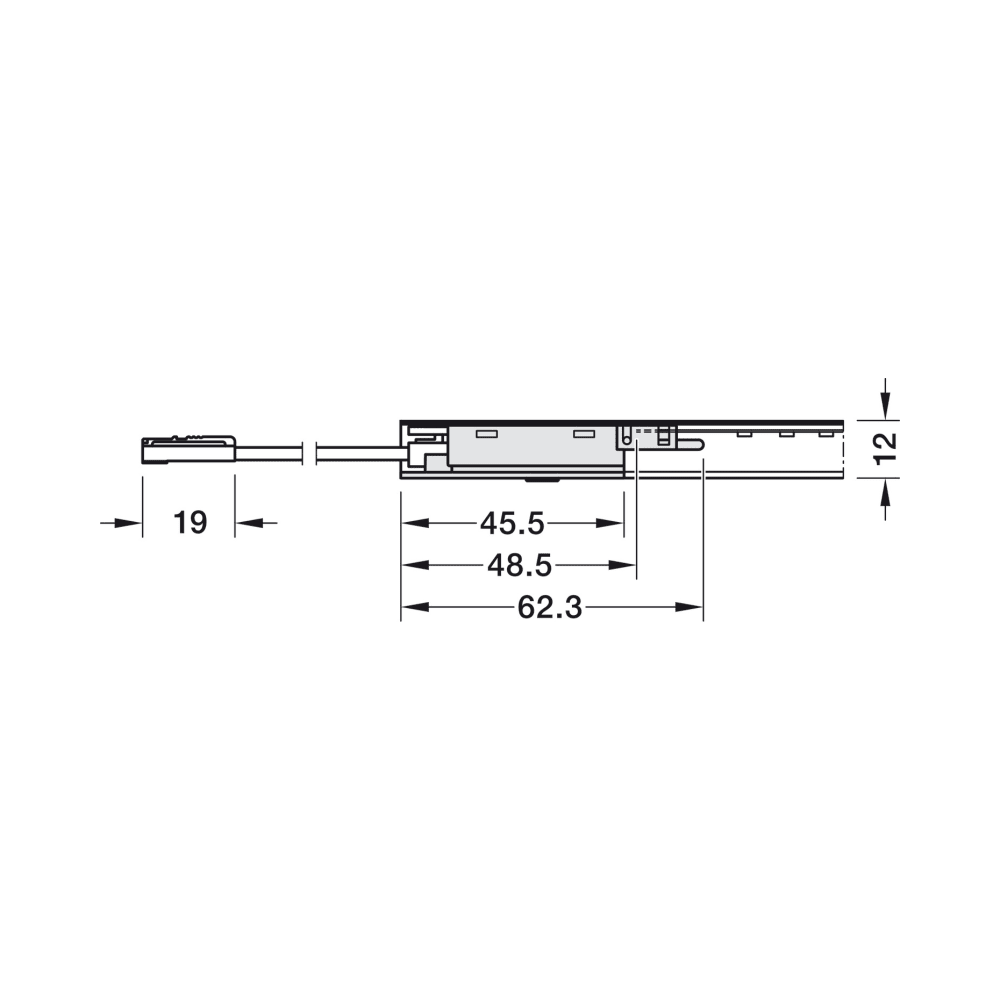

| Length | 36 mm |
| Delay time | 30 s |
| Sensor range | 0 – 2,500 mm |
| Area of application | For monochromatic 8 mm Loox5 LED strip lights in aluminium profiles with 16 mm interval width |
| Suitable for | Profile 1190 Profile 1191 Profile 1192 Profile 1194 Profile 2190 Profile 2191 |
| Sensor angle | 90° |
| Vertical sensor bracket | 110° |
| Cable length | 2000 mm |
| Plug drill hole Ø | 8 mm |
| Installation | For push fitting |
| Material | Plastic |
| Colour/finish | Silver |
