Description

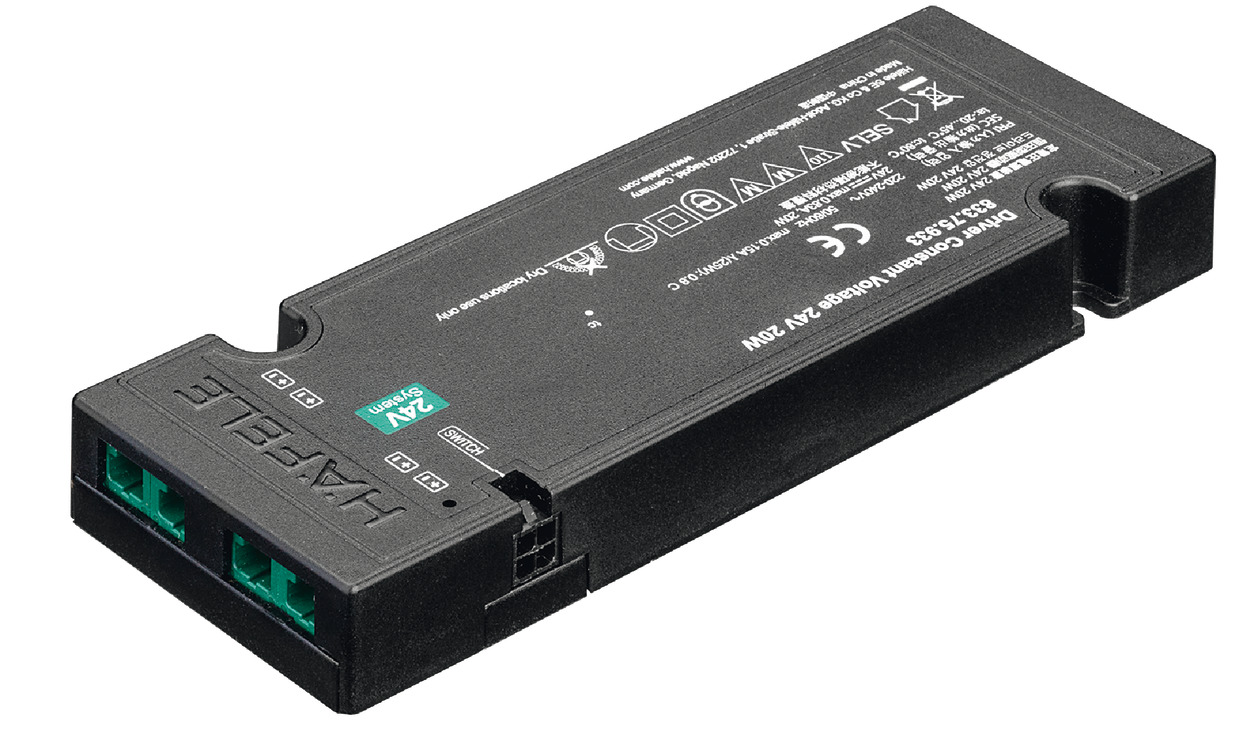

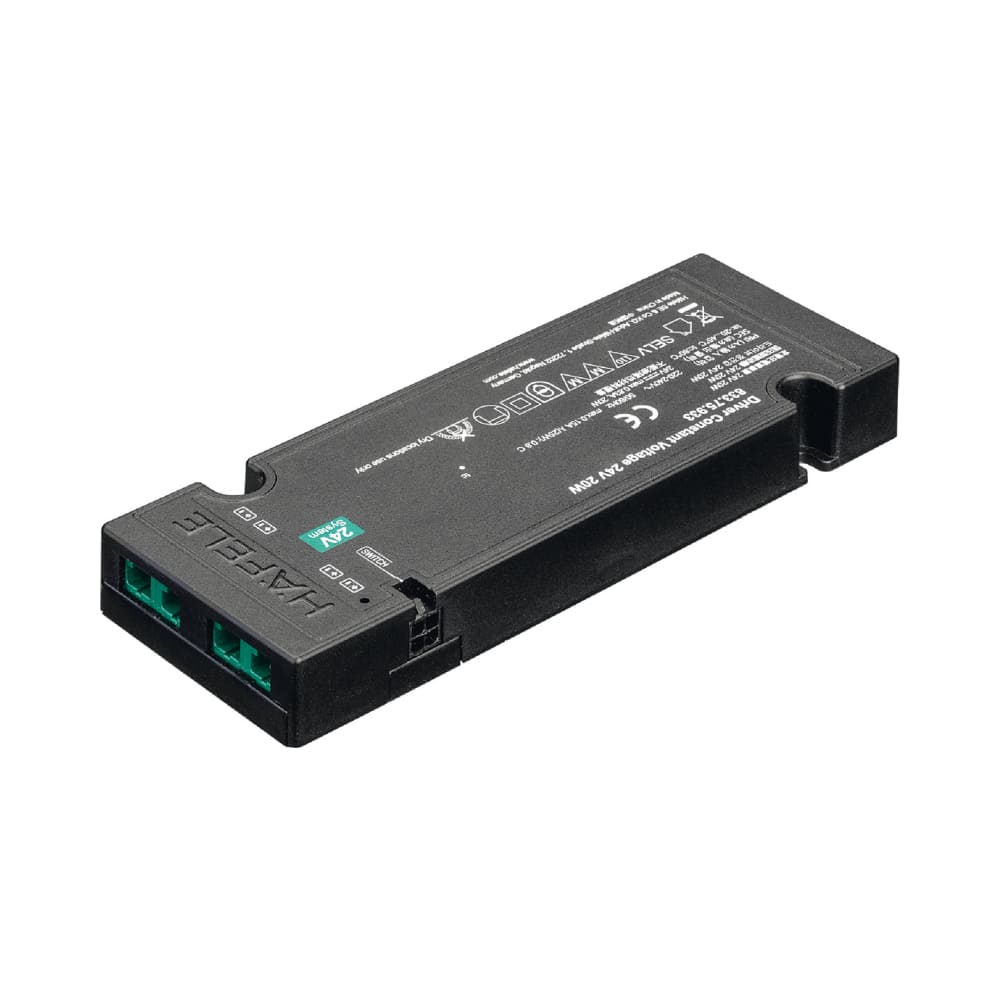

Hafele Loox5 Eco LED Driver without Mains Lead – 24V 20W with Switching Function
- For use with Loox5 or Loox5 compatible 24V lights
- With switching function
- Extremely flat – 16 mm
- 24 V driver with Loox5 generation plug system
- Max. recommended lead length from driver to switch: 6000 mm (leads not included)
| Mains voltage | 220 – 240 V |
|---|---|
| Mains frequency | 50 – 60 Hz |
| With switching function | Yes |
| Ambient temperature | -25–45 °C |
| Number of switch connections | 1 |
| Output voltage | 24 V DC |
| Area of application | For LED lights (not suitable for other devices) |
| Version | With overload protection |
| Material | Plastic |
| Colour/finish | Black |
| Connected output ports | 4 x sockets, Loox5 2-pin 24 V |
| Control input ports | 1 x socket, Loox switch |
| Installation | For glue fixing Screw fixing |
| Installation reference | Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening. |
| Output current | 0.83 A |
