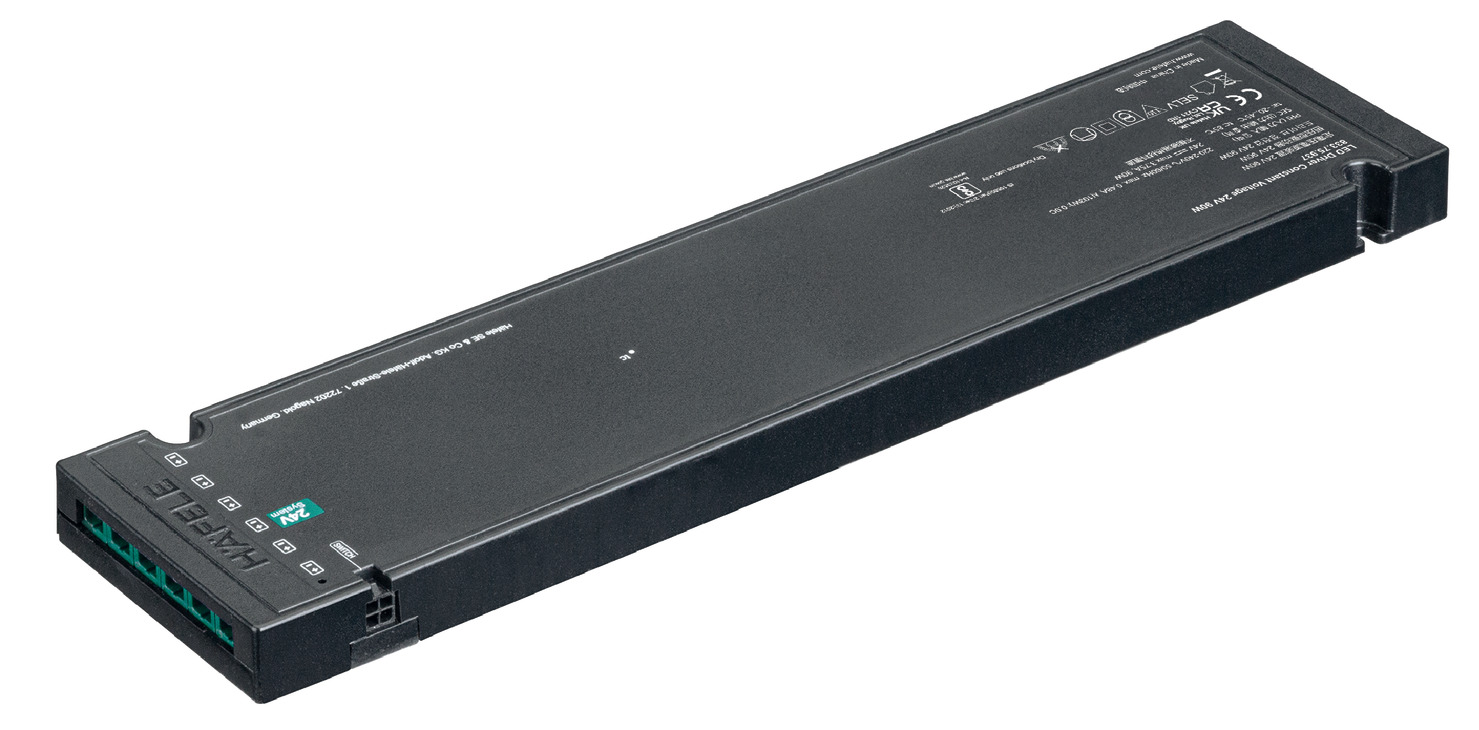

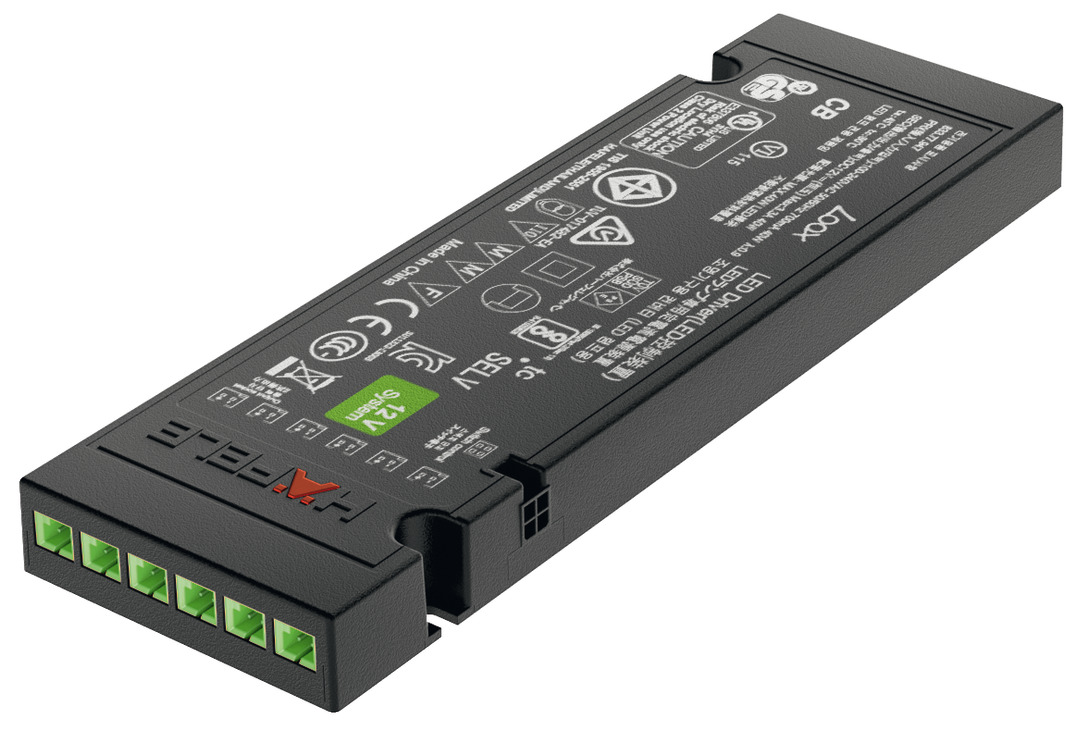

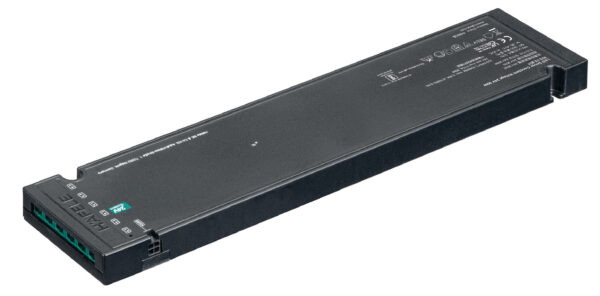

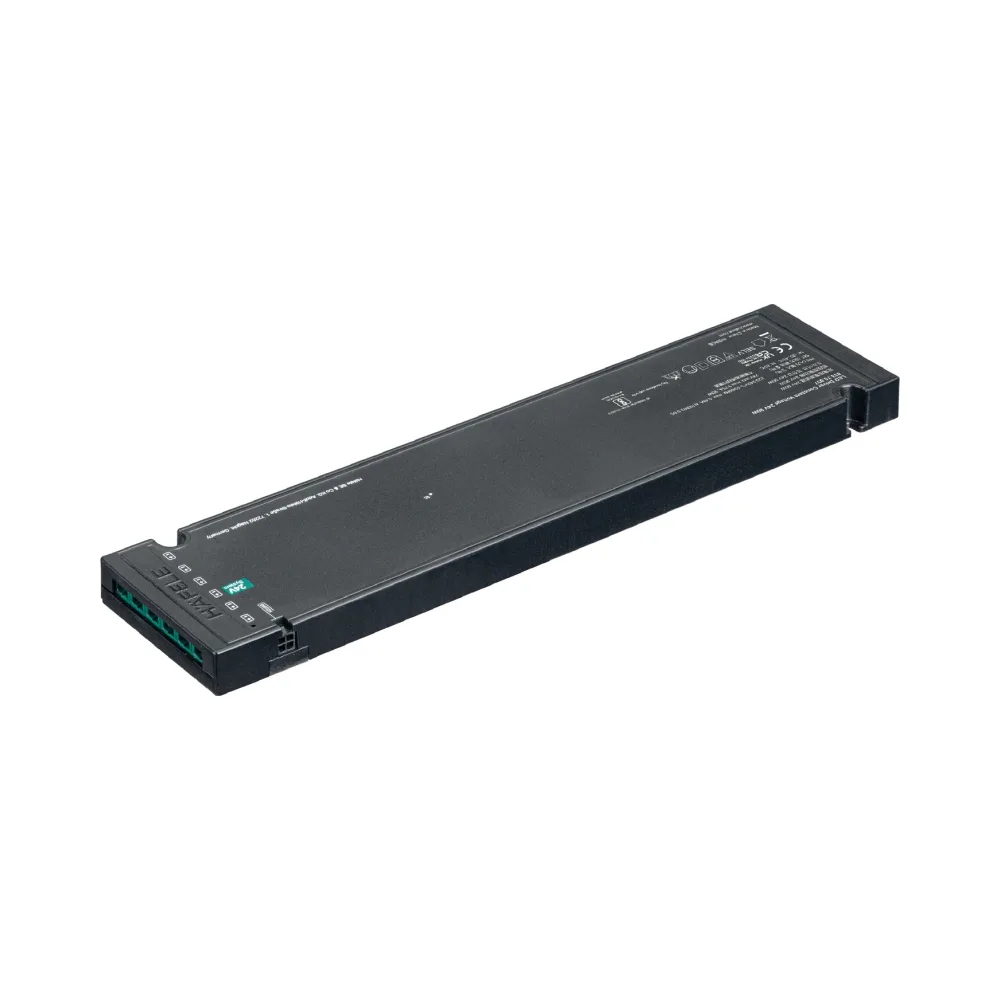

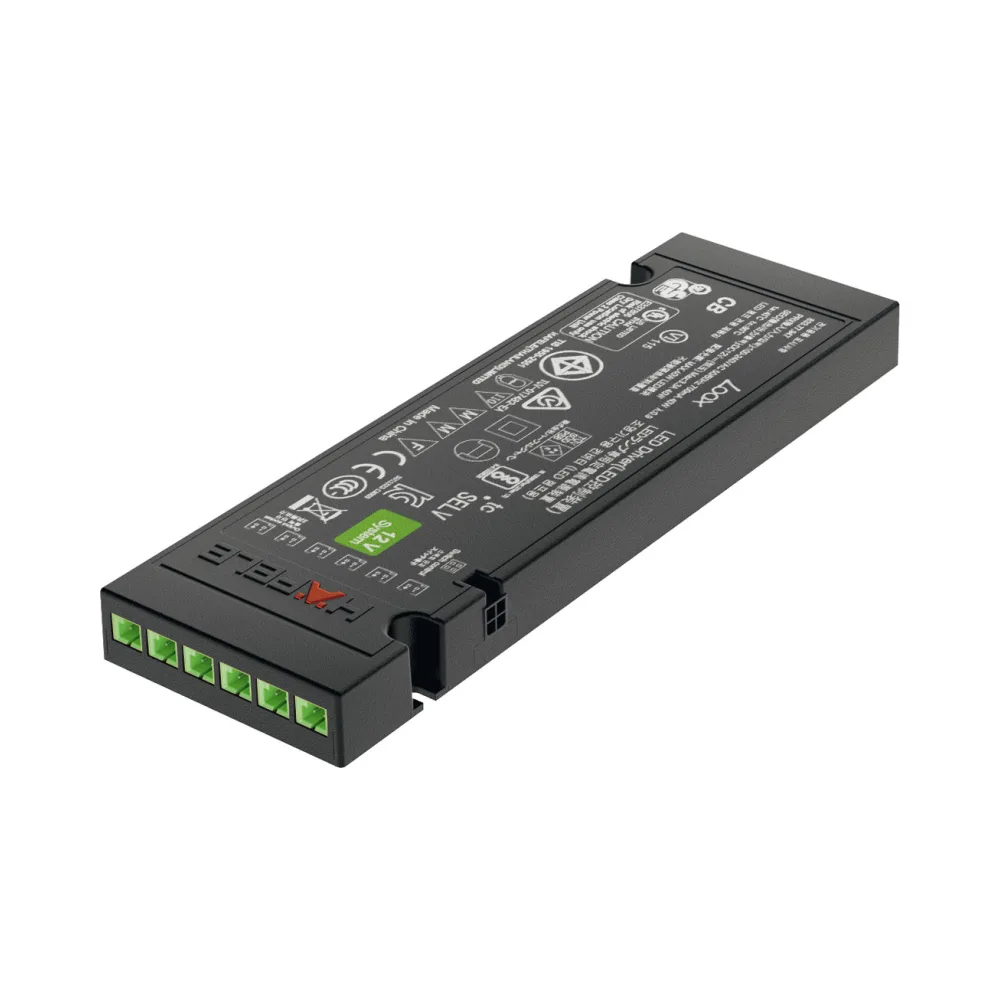

Hafele Loox5 Eco 24V 90W LED Driver without Mains Lead
Power your Loox5 or Loox5 compatible 24V lights efficiently with the Hafele Loox5 Eco 24V 90W LED Driver. Designed for flexibility and performance, this driver supports a wattage range of 0-90W and features an extremely flat design, measuring just 16 mm in height.

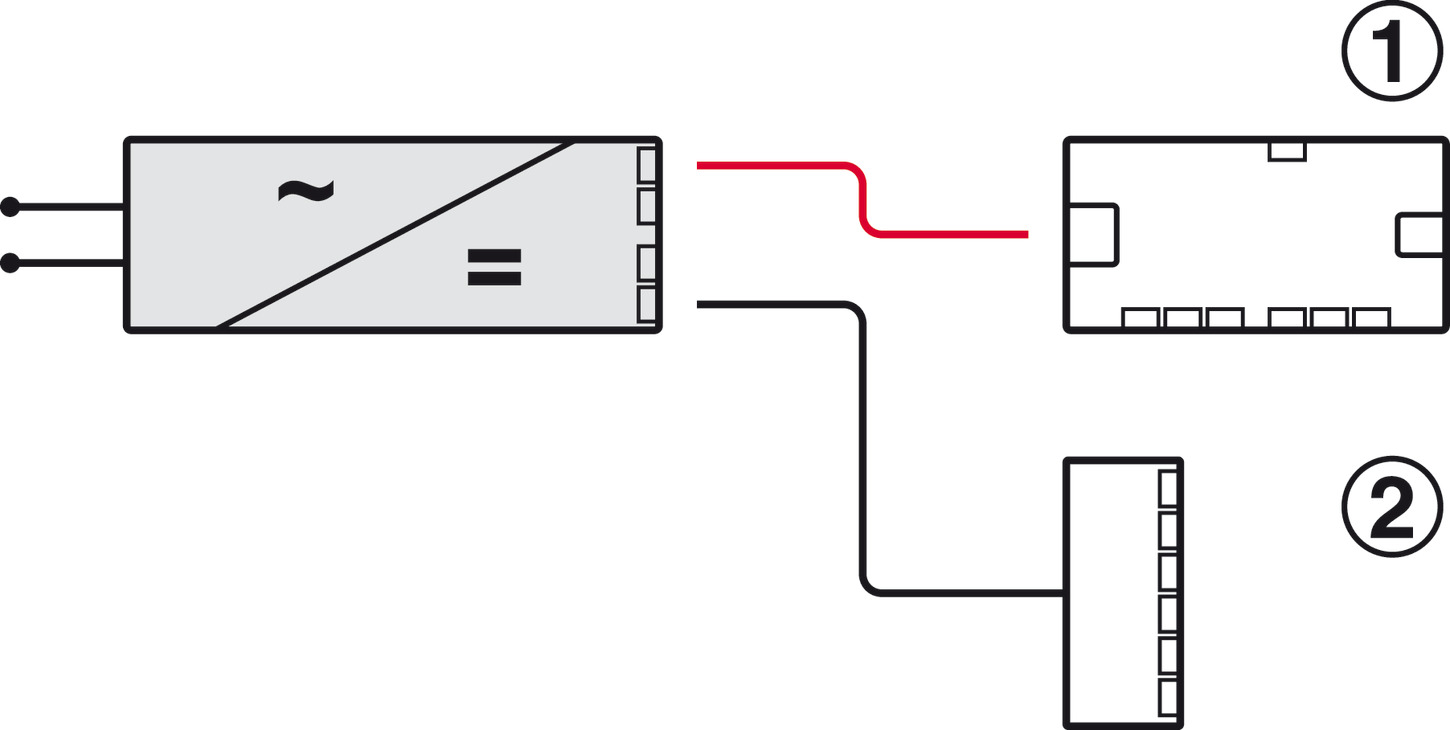

- With switching function for 1 switch
- Wattage 0 – 90W
- Extremely flat, 16 mm
- 24V driver with Loox5 generation plug system
- Max. recommended lead length from driver to switch: 6000 mm (leads not included)
| Mains voltage | 220 – 240V |
|---|---|
| Mains frequency | 50 – 60 Hz |
| With switching function | Yes |
| Ambient temperature | -25–45 °C |
| Number of switch connections | 1 |
| Output voltage | 24 V DC |
| Area of application | For LED lights (not suitable for other devices) |
| Version | With overload protection |
| Material | Plastic |
| Colour/finish | Black |
| Dimensions | Length: 292 mm Width: 70 mm Height: 16 mm |
| Connected output ports | 6 x sockets, Loox5 2-pin 24 V |
| Control input ports | 1 x socket, Loox switch |
| Installation | for glue fixing, Screw fixing |
| Installation reference | Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening. |
This driver is perfect for powering your LED lights while maintaining a sleek and unobtrusive profile.
