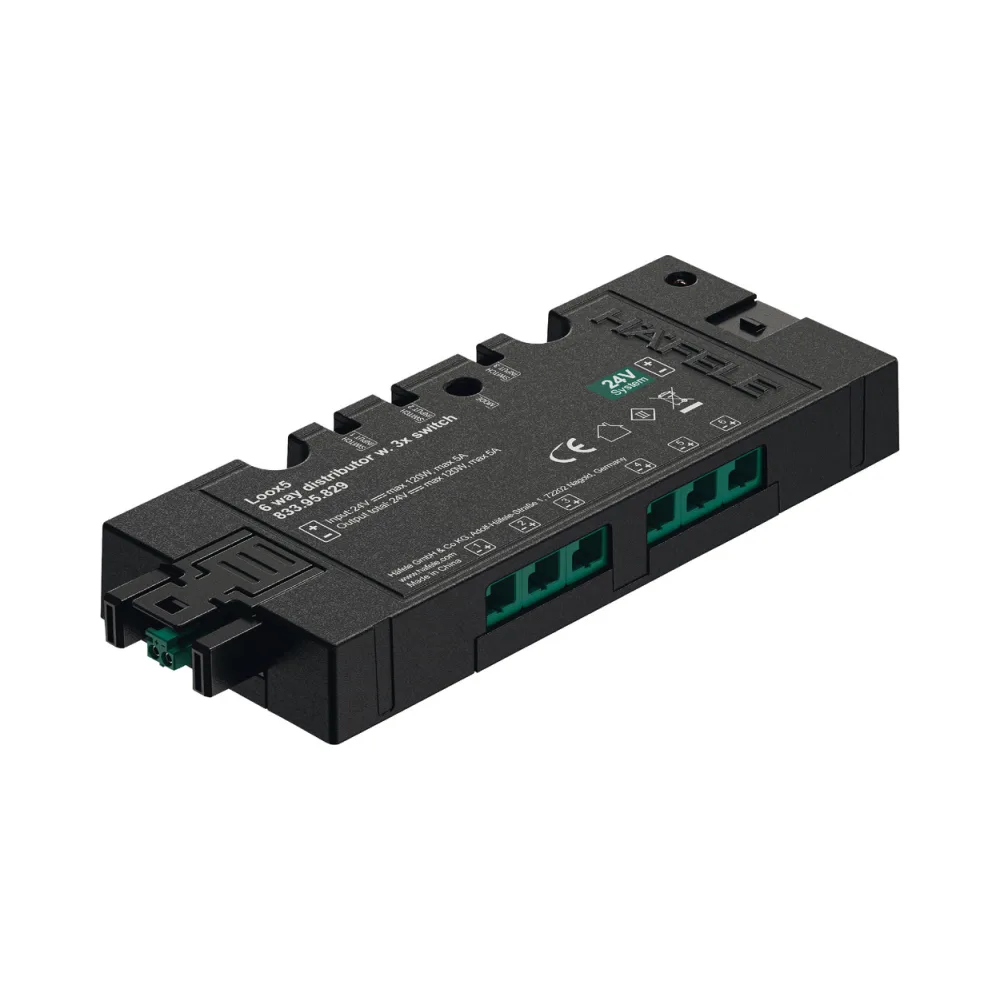

Description
- Multi-switching function for up to 3 switches
- Box to box plug-in connection
- Permanent soft on/off function, independent of the switch that is used
- Dimensions (L x W x H): 120 x 50 x 16 mm
- Number of connections:
- Input – 1x Plug, Loox5 2-pole 12V/24V box to box
- Connections – 1x Socket, loox5 2-pole 12V/24V box to box
- Switched outputs – 6x Socket, Loox 2-pole 12V/24V
- Control inputs – 3x Socket, Loox switch
- Supplied with:
- 1 distributor
- Fixing materials (adhesive tape and screws)
- 3 operating modes
- Group connection (red feedback LED)
- OR circuit (blue feedback LED)
- Digital cross-circuit (green feedback LED)
- Black plastic
The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.
| Low voltage plug | Loox5 2-pin 24 V |
|---|---|
| Low voltage socket | Loox5 2-pin 24 V, Loox5 2-pin 24 V box to box |
| Input ports | 1 x plug, Loox5 2-pin 24 V box to box |
| Connections | 1 x socket, Loox5 2-pin 24 V box to box |
| Connected output ports | 6 x sockets, Loox 2-pin 24 V |
| Control input ports | 3 x sockets, Loox switch |
| Power rating | 120 W |
| Voltage | 24 V |
| Area of application | For switching on/off and dimming (0-100%) |
| Material | Plastic |
| Colour/finish | Black |
| Dim. (L x W x H) | 120 x 50 x 16 mm |
| Switching function | With multi-switching function |
| Cable length | 100 mm |
| Standby power consumption | 0.26 W |
| Installation | Glue fixing Screw fixing |

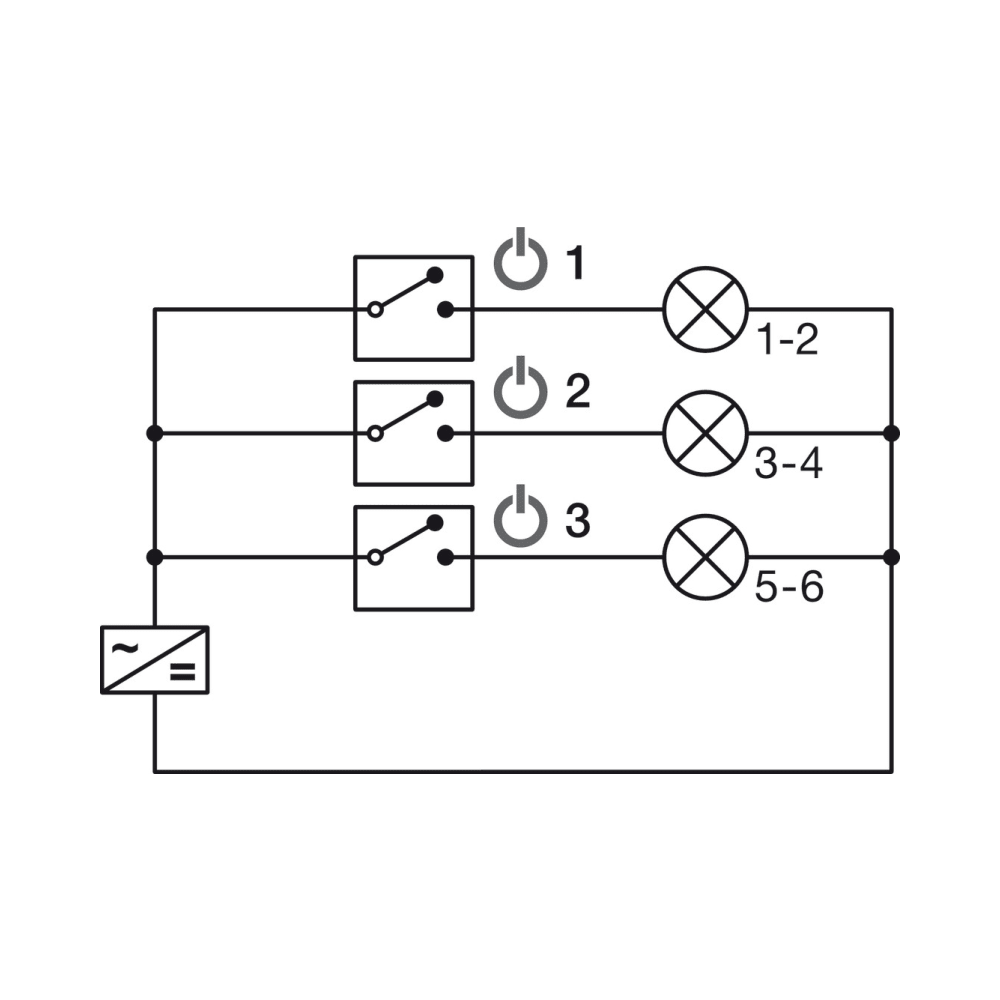

| Operation modes | Group connection (red feedback LED) Switch 1 = outputs 1 and 2 Switch 2 = outputs 3 and 4 Switch 3 = outputs 5 and 6 |
| OR circuit (blue feedback LED) Switching on using switch 1, 2 or 3. To switch off, all switches that are switched on are operated again No dimmer may be used in the OR circuit operation mode! |
|

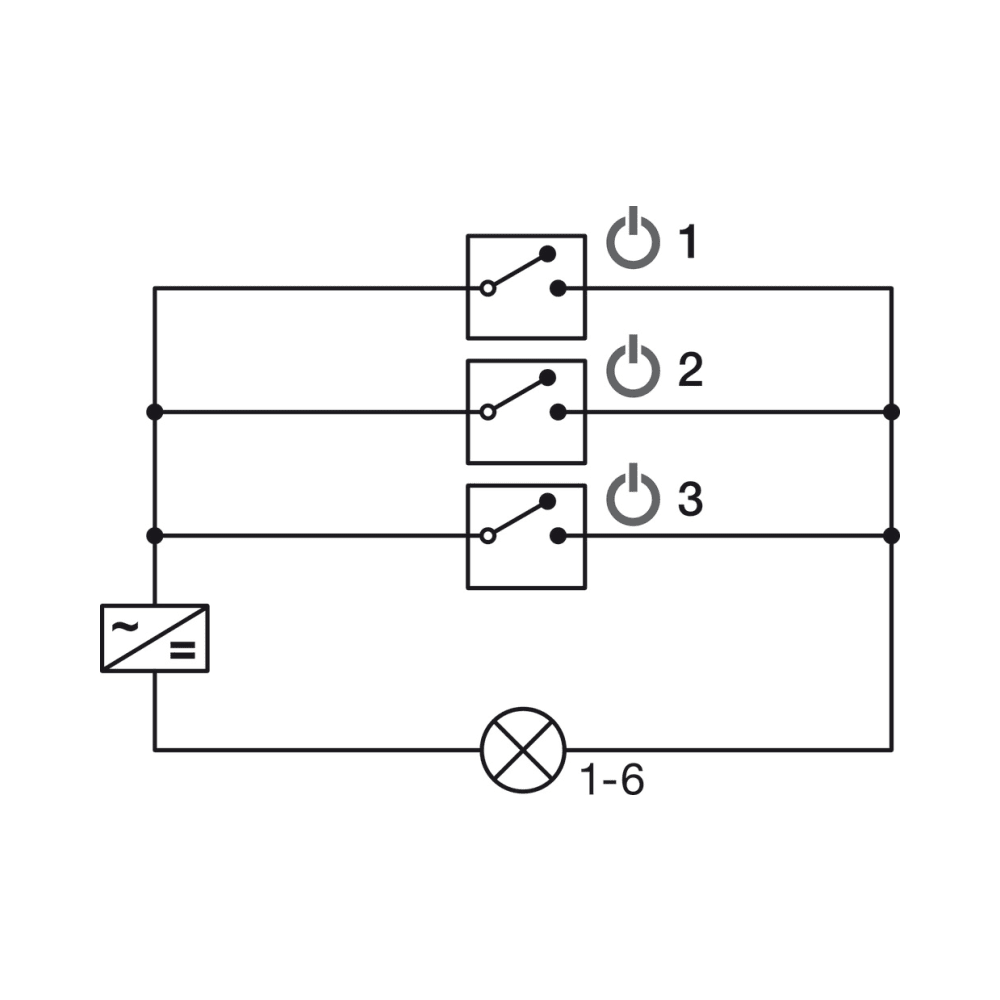

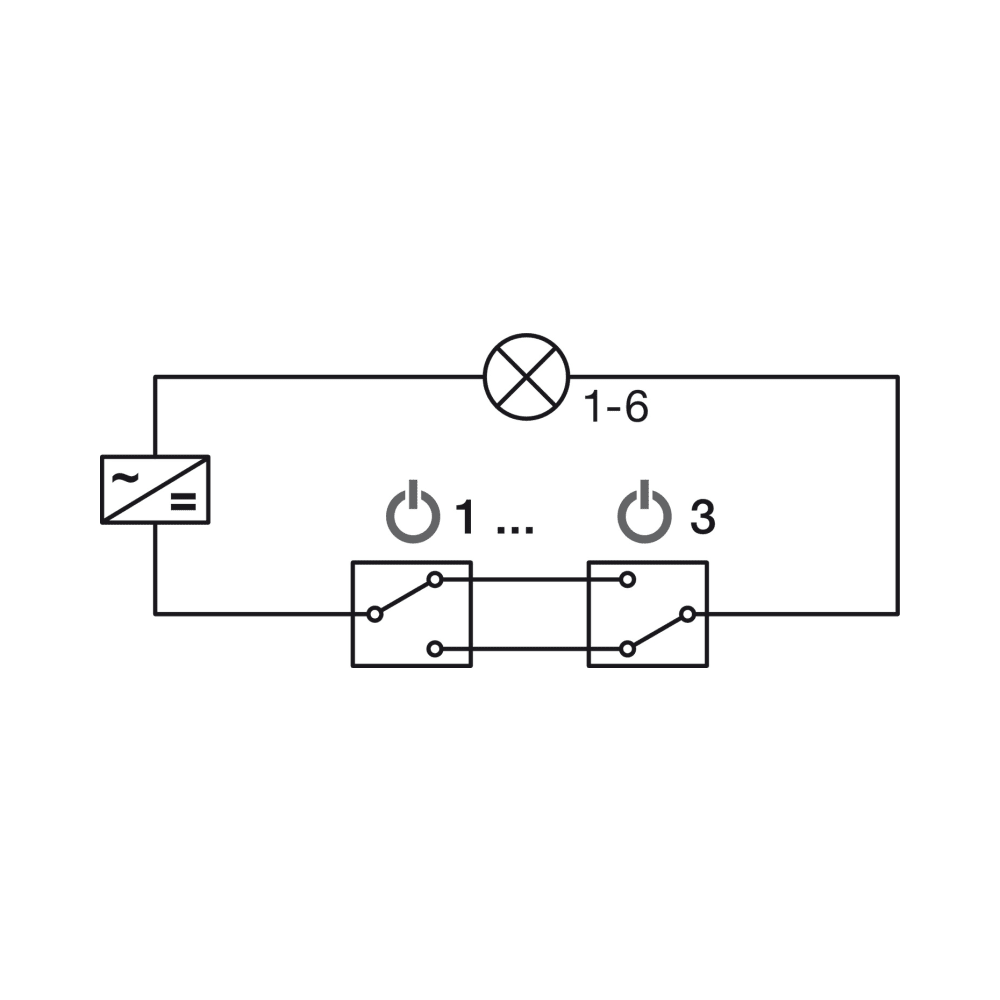

| Digital cross-circuit (green feedback LED) Operate one switch (1, 2 or 3) to switch all outputs on/off |
