Description

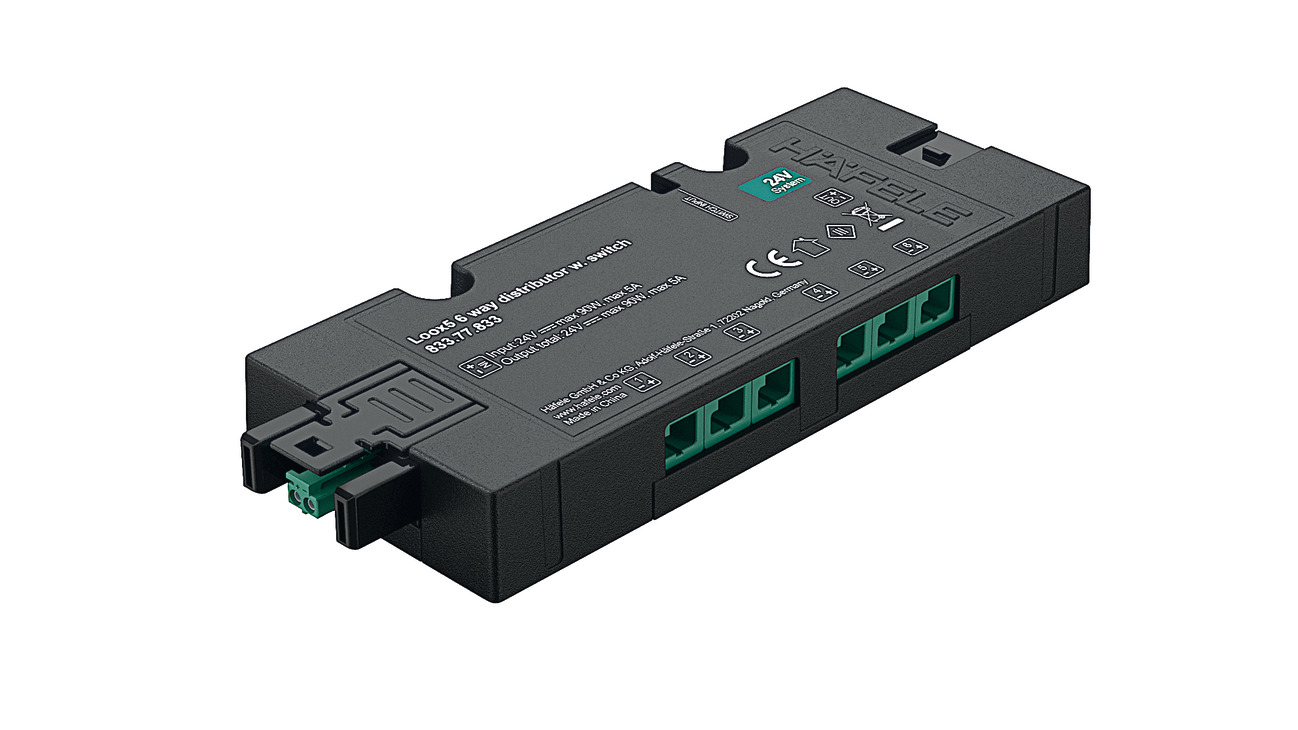

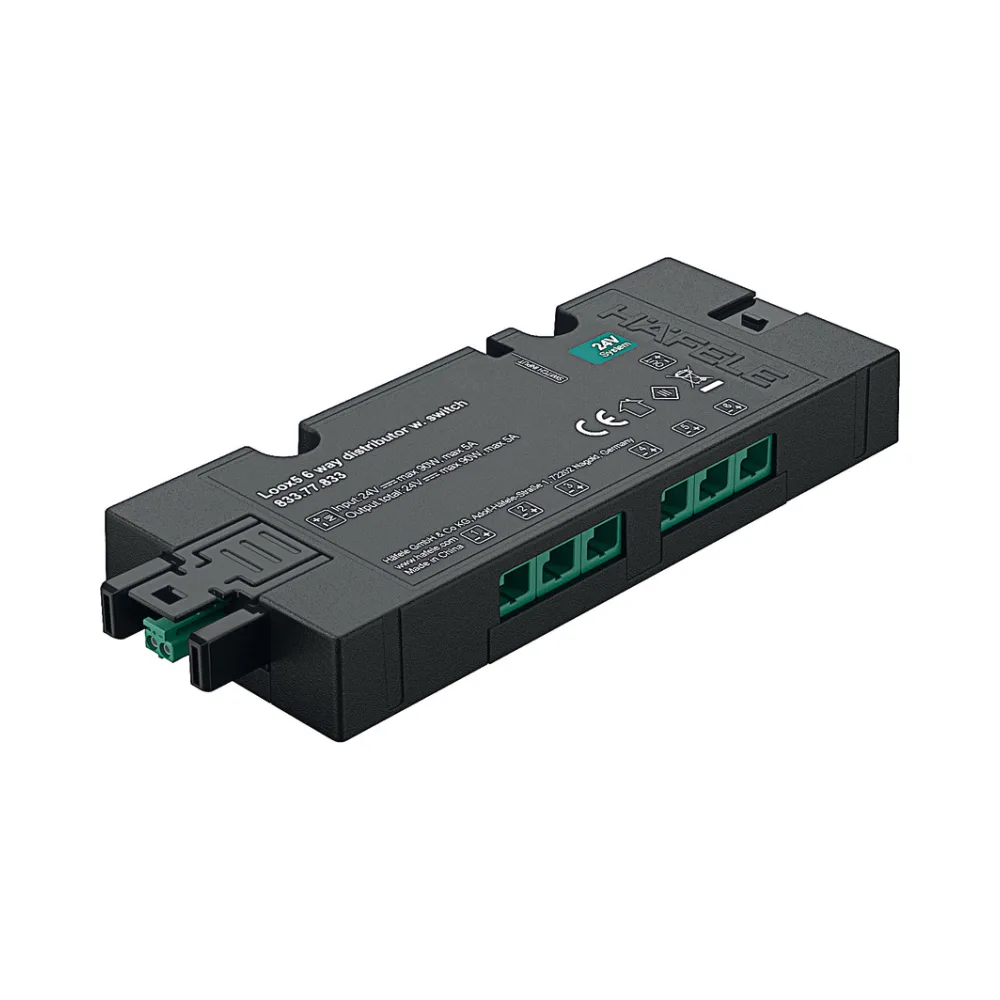

Hafele Loox5 6-Way Box Distributor with Switching Function
- For use with Loox5 24 V lights and drivers
- With switching function; one switch controls all output ports
- Dimensions (L x W x H): 120 x 50 x 16 mm
- Number of connections:
- 1x input port with box to box plug
- 1x output port with box to box socket
- 1x input port switch socket
- 6x output ports device sockets
- Black plastic
- Plug connection box to box

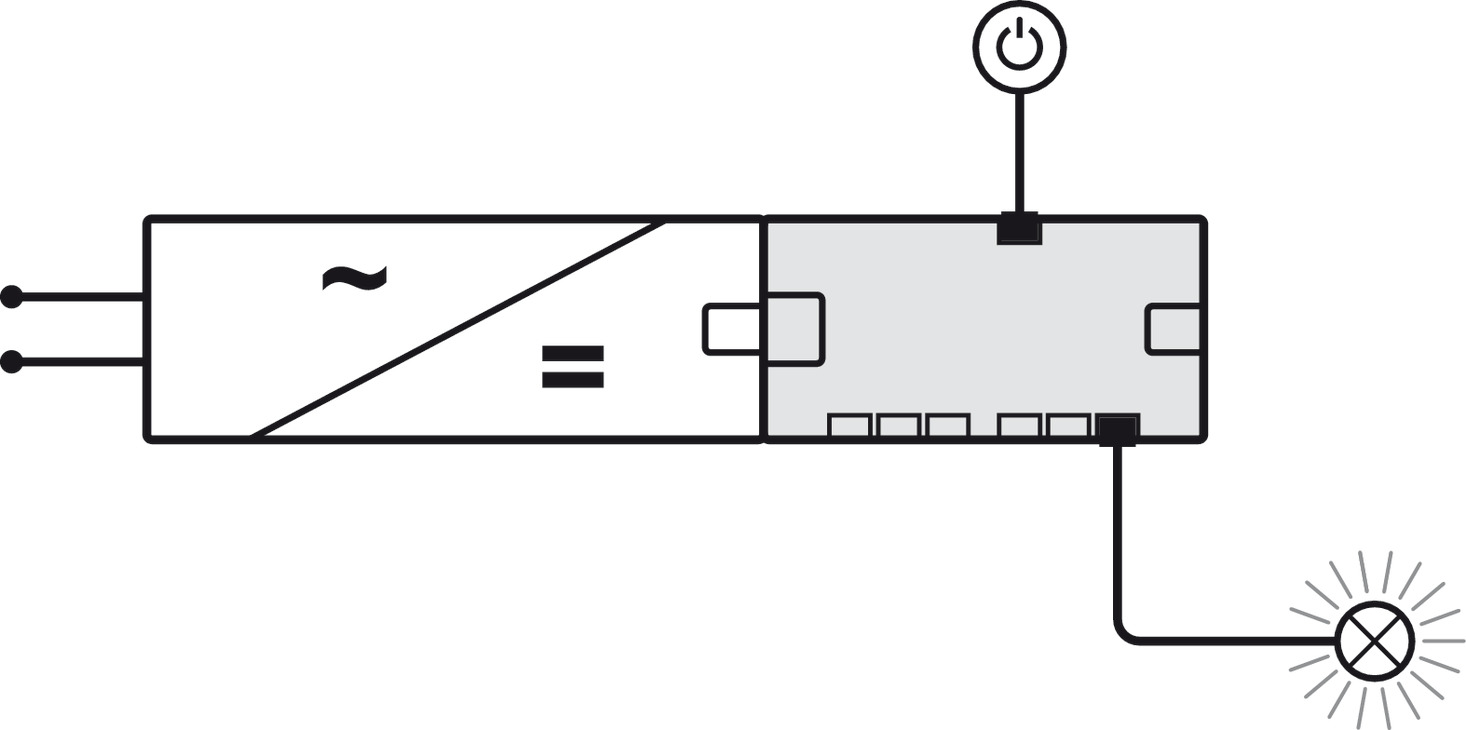

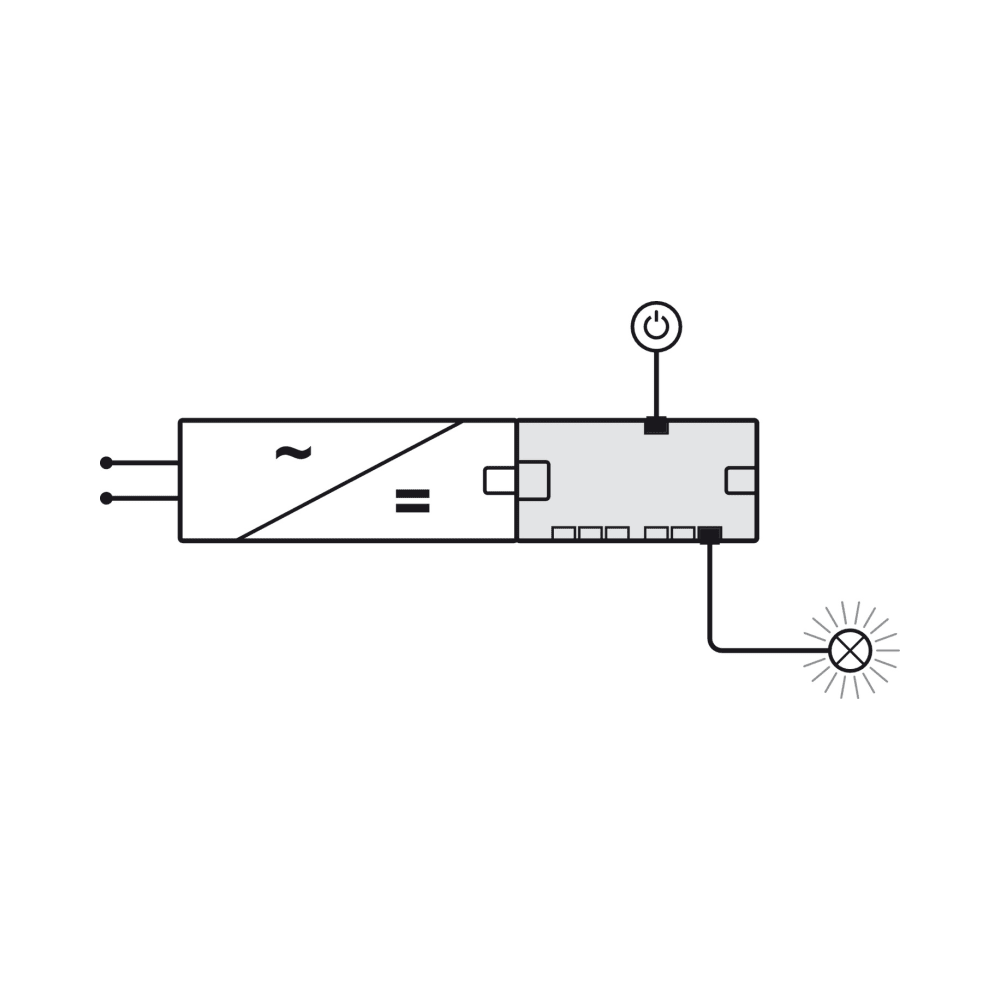

The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.
| Low voltage plug | Loox5 2-pin 24 V box to box |
|---|---|
| Low voltage socket | Loox5 2-pin 24 V box to box |
| Input ports | 1 x plug, Loox5 2-pin 24 V box to box |
| Connections | 1 x socket, Loox5 2-pin 24 V box to box |
| Connected output ports | 6 x sockets, Loox5 2-pin 24 V |
| Control input ports | 1 x socket, Loox switch |
| Power rating | 120 W |
| Voltage | 24 V |
| Suitable for | Professional LED control Monochrome LED lights Monochrome lights |
| Version | Box to box with switching function |
| Material | Plastic |
| Colour/finish | Black |
| Dim. (L x W x H) | 120 x 50 x 16 mm |
| Switching function | With switching function |
| Standby power consumption | 0.5 W |
| Häfele Lifetime Guarantee | 7 years |
