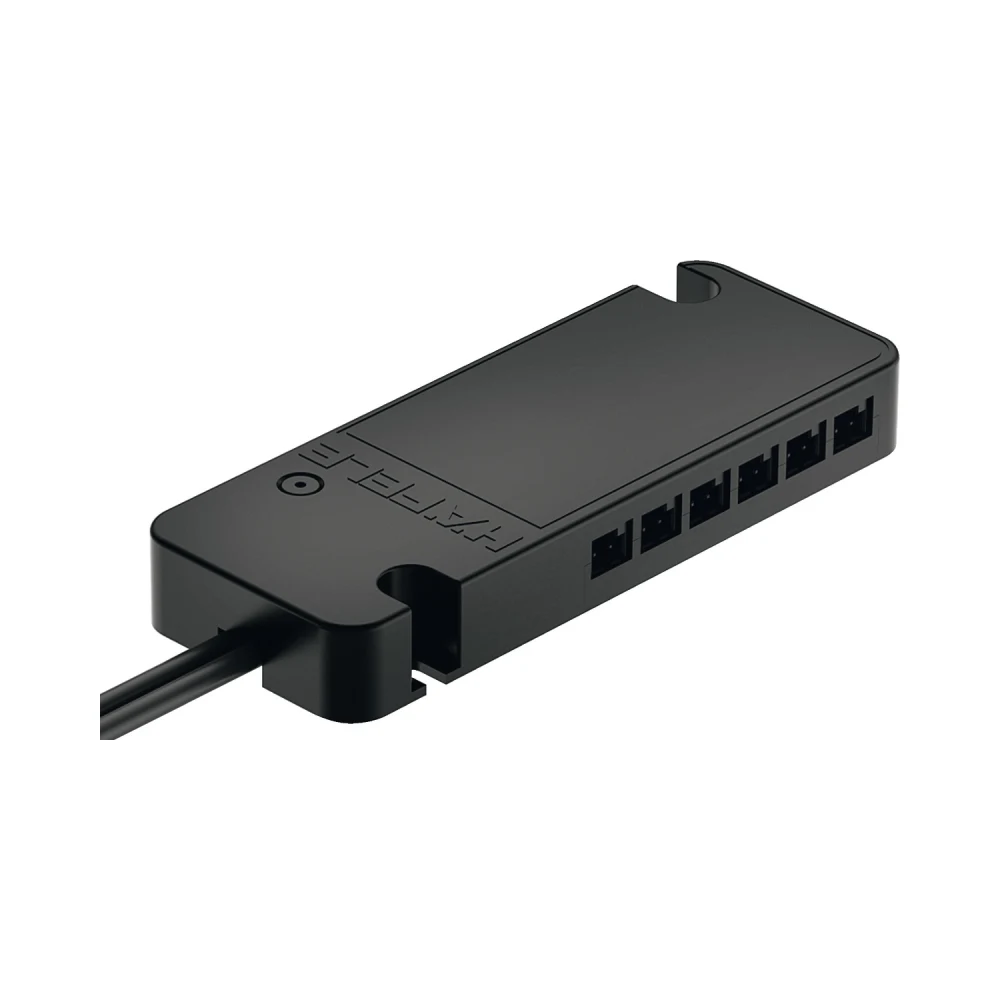

Hafele Loox LED Premium 6-Channel Monochrome Remote Receiver – 12 V 60 W
- For Loox 12 V system
- For control of white LED lights
Not suitable for multi white or RGB LED lights
Max. 10 radio receivers can be combined
3 lighting scenarios can be stored
Several radio receivers can be controlled within a radius of 15 m
Wattage: 60 W (Max. 30 W per socket)
6 slots for consumers
Soft on/off with dimmer function
Connects to Loox driver via 2 leads
Can be used with the remote switch and bezel which is compatible with Loox 12 V and 24 V systems
| Low voltage plug | Loox 2-pin 12 V |
|---|---|
| Low voltage socket | Loox 2-pin 12 V |
| Power rating | 60 W |
| Current carrying capacity | 2.5 A |
| Voltage | 12 V |
| Colour system | Monochrome |
| Area of application | For controlling white LED lights |
| Version | 6 slots for consumers, voltage supply from driver via 2 leads |
| Material | Plastic |
| Colour/finish | Black |
| Dim. (L x W x H) | 105 x 40 x 14 mm |
| Switching function | Soft on/off, Dimming (0-100 %, with memory function) |
| Control channels | 6 |
| Number of controls for each installation max. | 10 |
| Number of remote controls for each control device max. | 10 |
| Distance between controls max. | 15 m |
| Radio frequency | 2.4 GHz |
| Cable length | 1000 mm |
| Installation | Screw fixing |
| Häfele Lifetime Guarantee | 7 years |
