Hafele 850.00.920 | Loox5 Connect Mesh 4-Way Box-to-Box Distributor with Switching Function | For Single Colour | 24V | 72W

SKU: 850.00.920
8 in stock
More available within 1 - 3 working days *
£ 31 .50 EX VAT
£ 37 .80 IN VAT
OR
SECURE PAYMENT
We use secure checkout for safe, encrypted payments.

Description

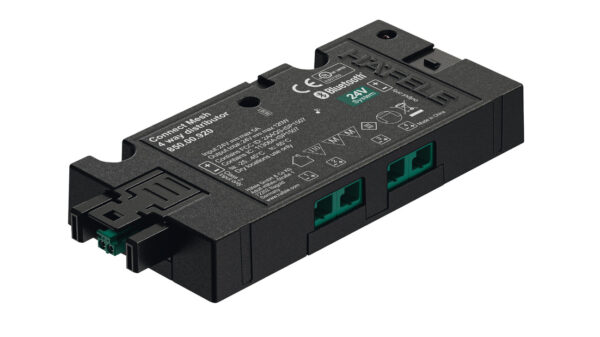

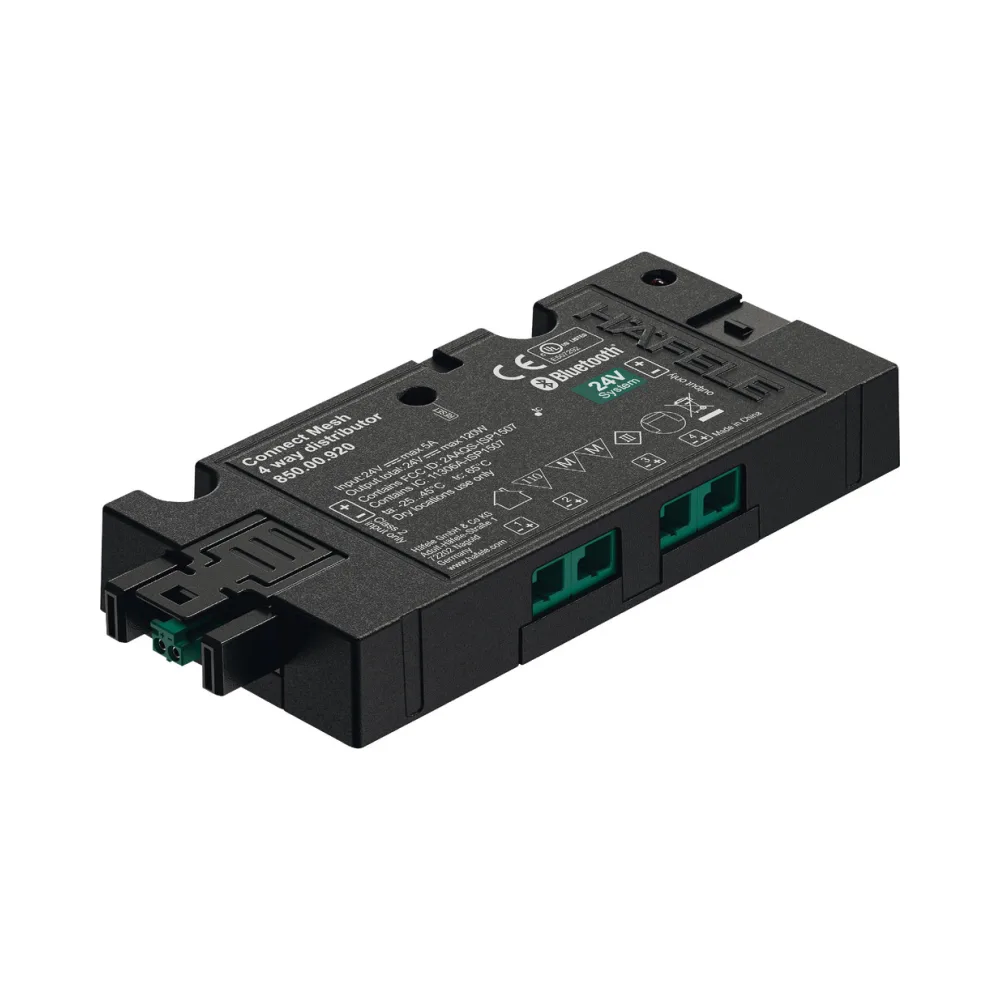

Hafele Connect Mesh Loox5 4-Way Box to Box Monochromatic Distributor 24 with Switching Function – 24V 72W

  • For switching on/off and dimming (0-100%)
  • Dim. (L x W x H): 155 x 50 x 16 mm
  • Number of connections:
    • 1x input port with box to box plug
    • 4x output port with box to box socket
  • Supplied with:
    • 1x 4-way distributor
  • Black plastic
Low voltage plug Loox5 2-pin 24 V
Input ports 1 x plug, Loox5 2-pin 24 V box to box
Connections 4 x sockets, Loox5 2-pin 24 V box to box
Connected output ports 4 x sockets, Loox5 2-pin 24 V
Power rating 72 W
Current carrying capacity 3 A
Voltage 24 V
Colour system Monochrome
Area of application For on/off switching and dimming (0–100%)
Suitable for Monochrome LED lights
Version Monochrome
Material Plastic
Colour/finish Black
Dim. (L x W x H) 150 x 50 x 16 mm
Control channels 4
Number of controls for each installation max. 4
Distance between controls max. 10 m
Standby power consumption 0.5 W
Häfele Lifetime Guarantee 7 years





Additional information

Wattage

72W

Brand

Hafele

Product Type

Distributor

Series

Loox5

Voltage

24V

Supply Type

24V
