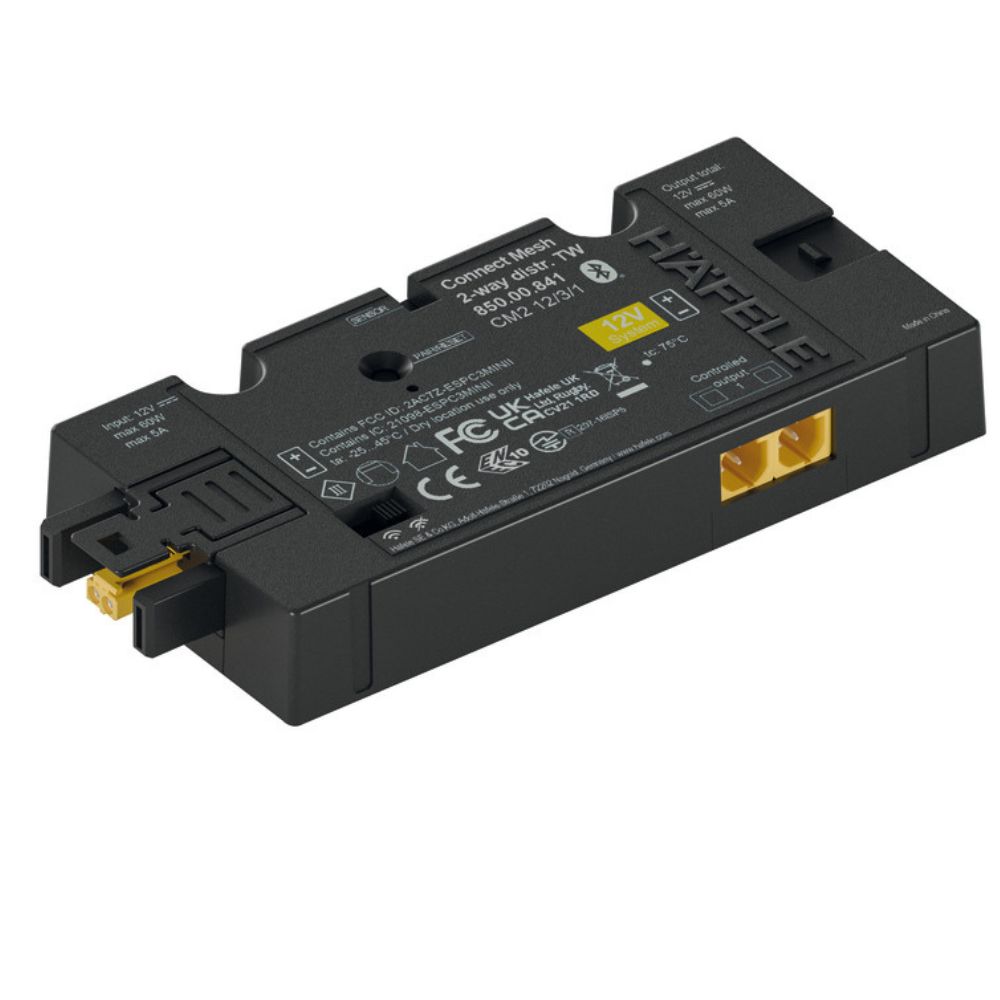

Hafele 850.00.841 Loox5 12V Connect Mesh Distributor
The Hafele 850.00.841 Loox5 12V Connect Mesh Distributor is a Bluetooth lighting control module designed for tunable white Loox5 lighting systems. It enables switching, dimming and colour temperature adjustment of 3-pin multi-white LED lights using the Häfele Connect Mesh app. The distributor connects directly to Loox5 drivers through a 12V box-to-box connection and provides two multi-white outputs operating together as one channel with a maximum load of 60 W.
Connect Mesh Lighting Control
- Bluetooth Connect Mesh wireless lighting control
- On/off switching and dimming from 0–100%

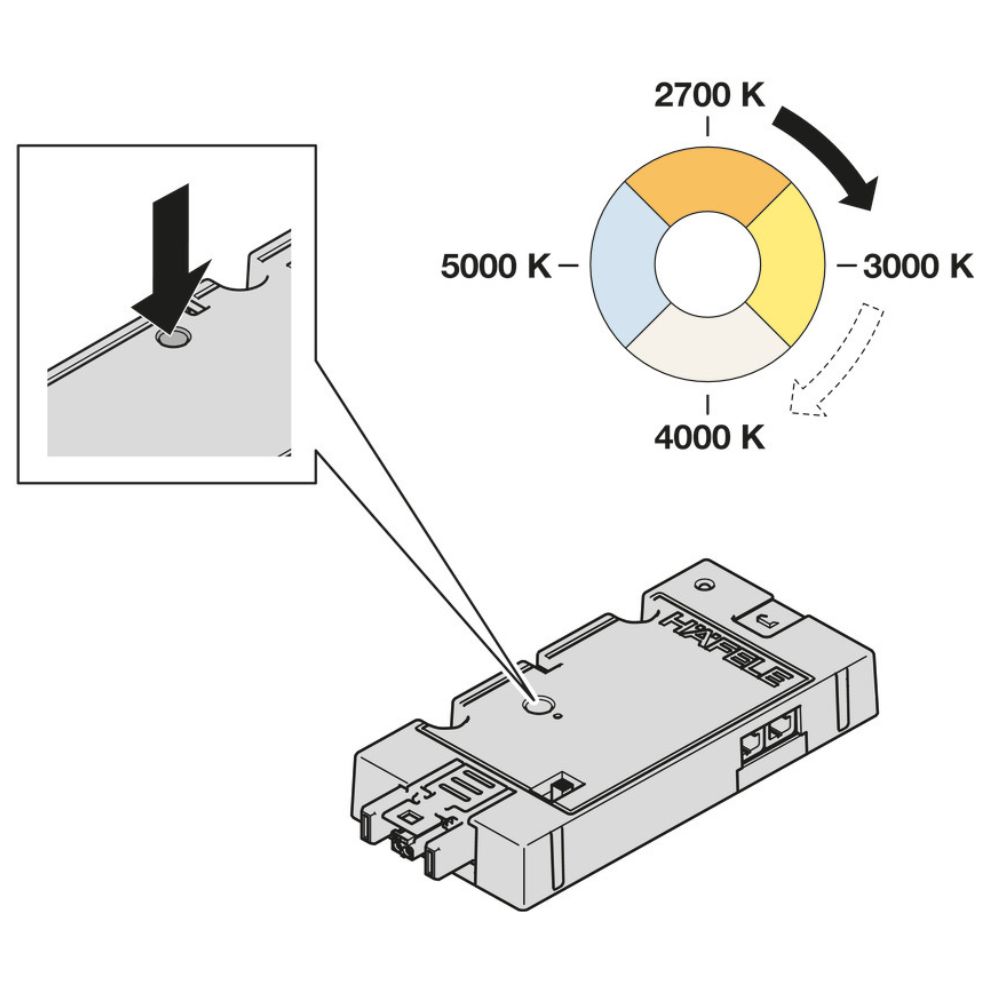

- Tunable white colour temperature control
- Control and configuration via mobile app
Loox5 System Integration
- 2 × Loox5 3-pin MW output sockets
- 1 × Loox5 2-pin 12V input connection
- Box-to-box connection to Loox driver
- Optional wired switching input for Loox switches
Technical Specifications
- Brand: Hafele
- Article Number: 850.00.841
- System: Connect Mesh
- Voltage: 12V
- Outputs: 2 × Loox5 3-pin MW sockets
- Power Rating: 60W
- Dimensions: 115 × 50 × 16 mm
- Network Range: 5 m
