Description

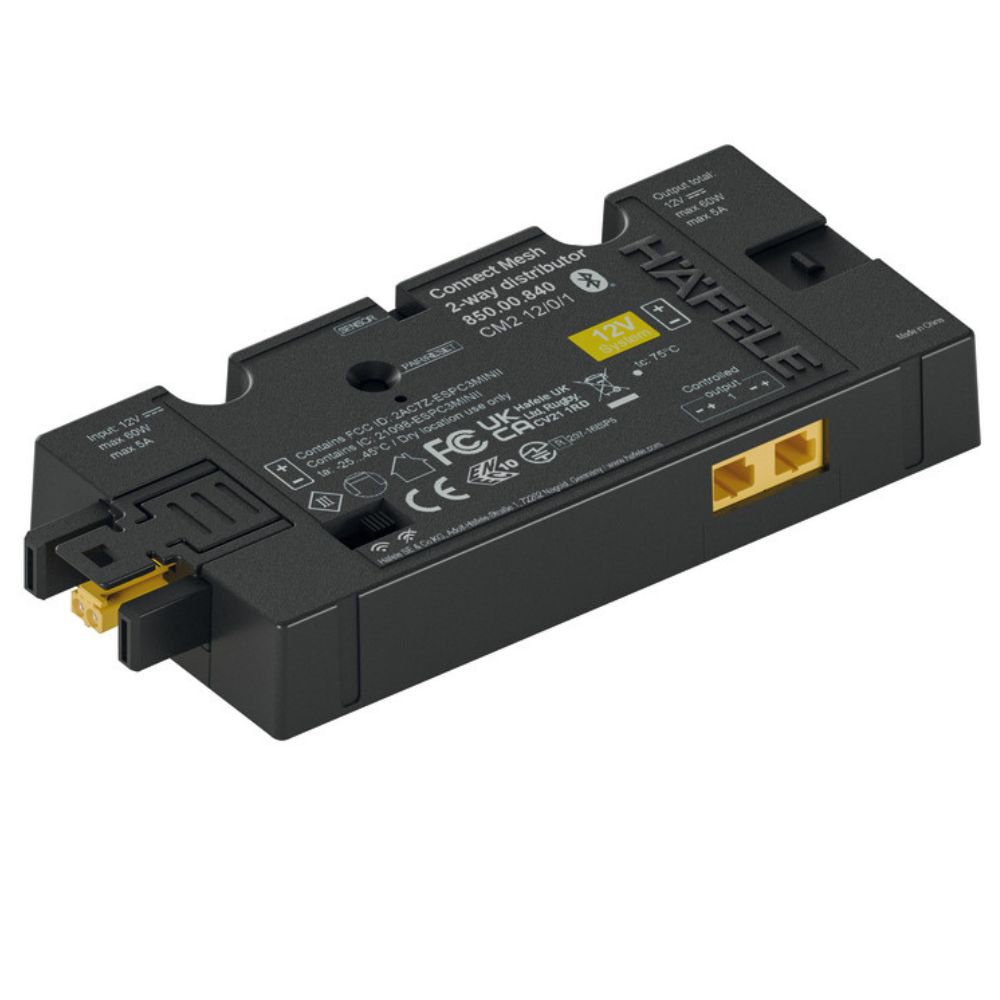

Hafele 850.00.840 Loox5 12V Connect Mesh Distributor
The Hafele 850.00.840 Loox5 12V Connect Mesh Distributor provides intelligent control for monochrome Loox5 lighting systems. With integrated Bluetooth connectivity and compatibility with the Häfele Connect Mesh ecosystem, lighting can be switched and dimmed wirelessly using the Connect Mesh mobile app.
This 2-way distributor allows two lighting outputs to be connected and controlled together as a single channel. It offers flexible control for cabinet, furniture and display lighting installations.
Connect Mesh Lighting Control
The distributor integrates with the Häfele Connect Mesh App available for Apple iOS and Android devices. The app allows installers and users to configure switching functions, lighting behaviour and dimming levels for connected lighting systems.
- Bluetooth Connect Mesh lighting control
- Switching and dimming from 0–100%
- Two outputs controlled together as one channel
- Compatible with Loox switches and sensors

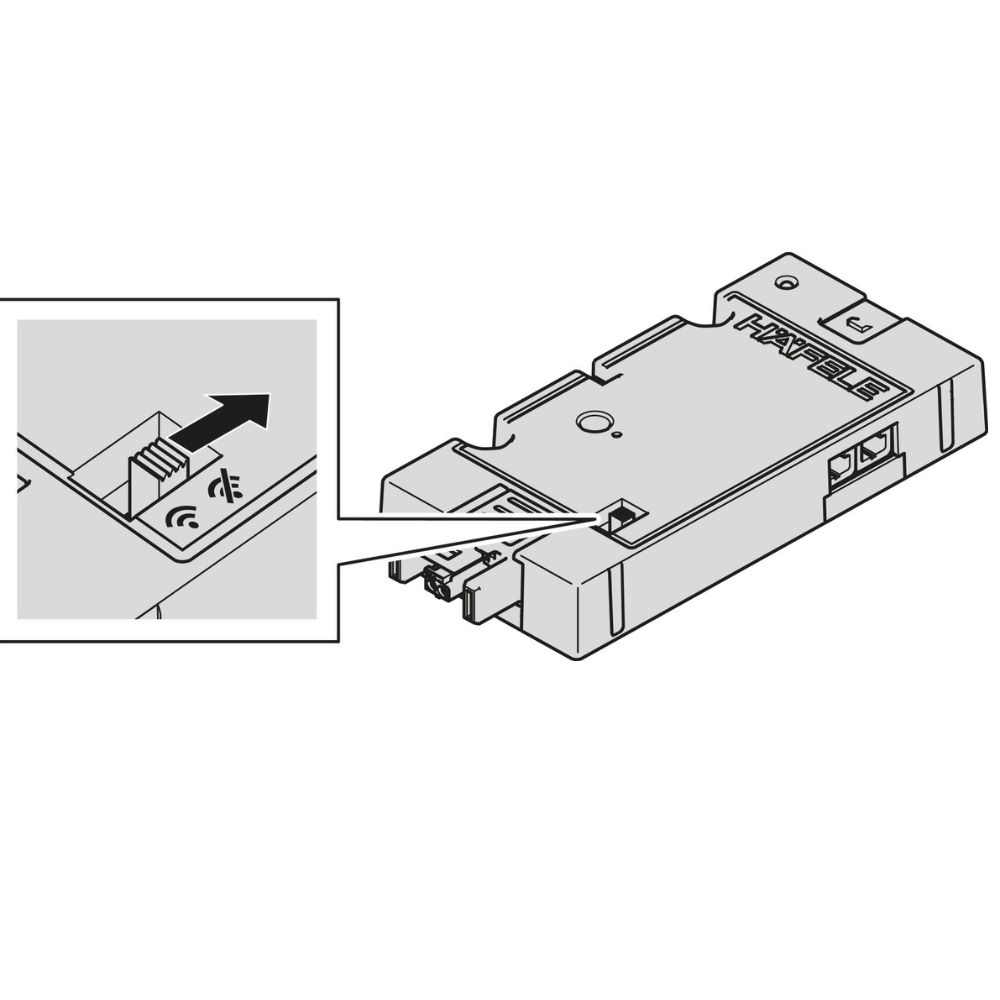

- Manual switching input option
Flexible Loox5 Lighting Integration
The Hafele 850.00.840 distributor connects directly to Loox5 drivers using standard box-to-box connectors. It can also operate with manual wired switching input when used with Loox switches or sensors.
- 2 x Loox5 2-pin output sockets
- 1 x Loox5 2-pin input connection
- 1 x Loox switch control input
- Box-to-box connection to Loox driver
- Designed for monochrome lighting systems
Applications
- Kitchen cabinet lighting
- Wardrobe and furniture lighting
- Display cabinet lighting
- Retail shelving illumination
- Integrated LED lighting systems
Technical Specifications
- Brand: Hafele
- Article Number: 850.00.840
- System: Loox5 Connect Mesh
- Voltage: 12V
- Outputs: 2 x Loox5 2-pin sockets
- Control Input: 1 x Loox switch input
- Power Rating: 60W
- Dimming Range: 0–100%
- Colour System: Monochrome
- Dimensions: 115 x 50 x 16 mm
- Max Network Distance: 5 m
Guarantee
The Hafele 850.00.840 Loox5 12V Connect Mesh Distributor is covered by the Häfele Lifetime Guarantee, ensuring reliable long-term performance for professional lighting installations.
