Description
Sensor Switch Adjustable Modular Loox – Silver
Hafele 83389334
The Häfele 83389334 Sensor Switch offers flexible and intuitive lighting control. With its touchless operation, it automatically turns lights on when the door opens and off when the door closes. Moreover, it also functions as a soft on/off dimmer switch with an adjustable range of 50-100%, providing full control over your lighting settings.
Available in a sleek silver finish, this sensor switch is designed for easy integration into modern lighting setups.
Key Features of Häfele 83389334 Sensor Switch

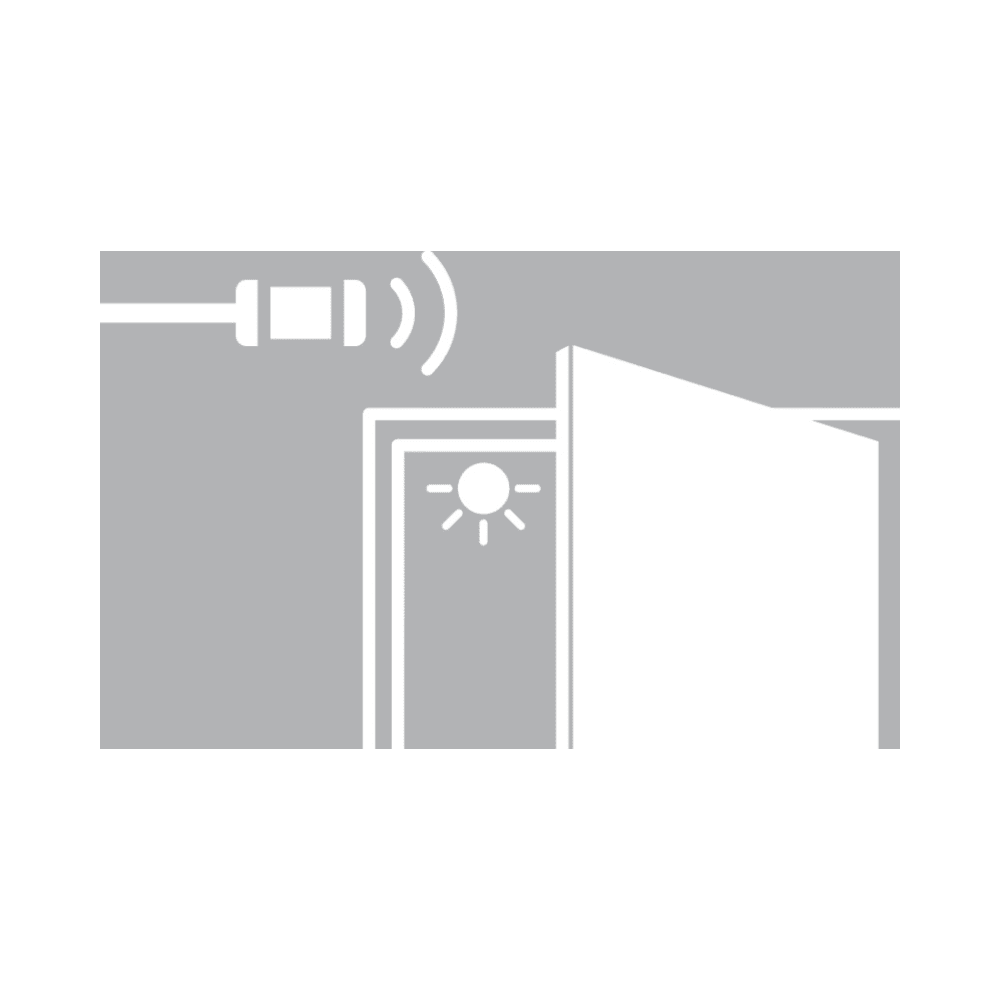

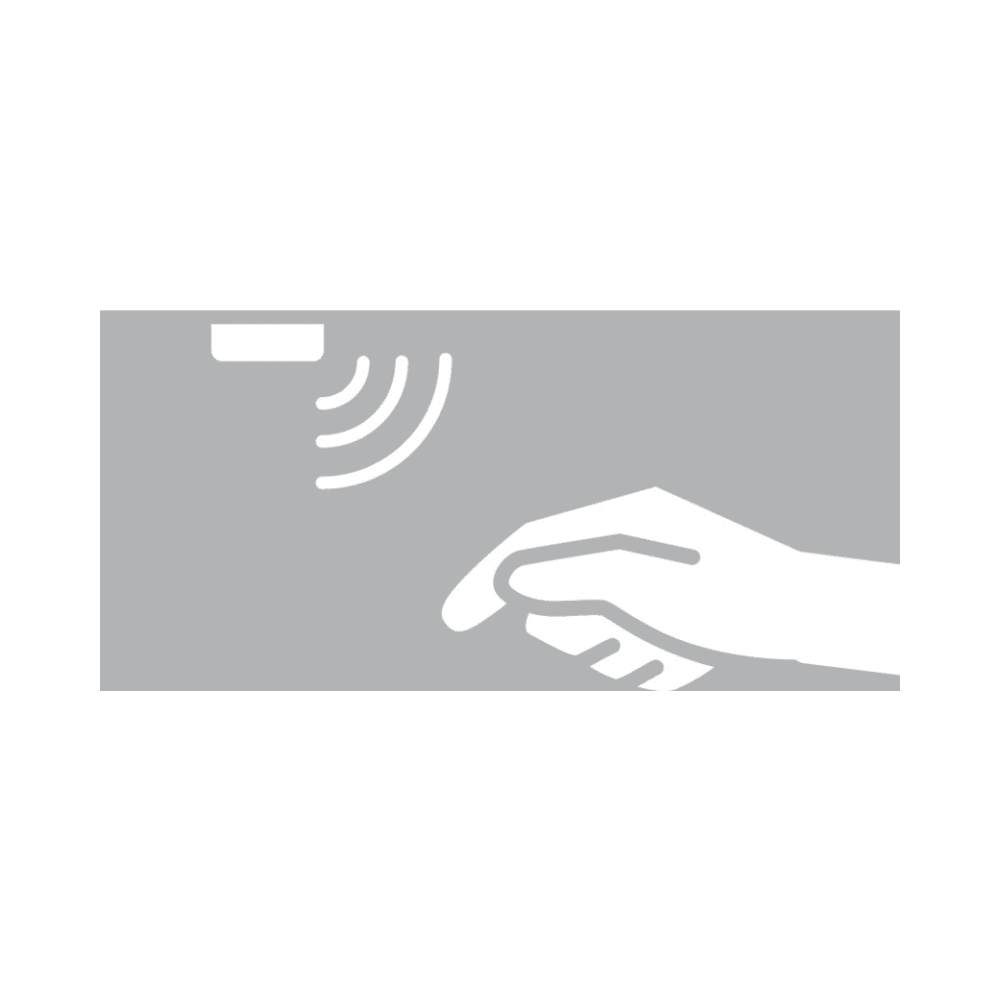

- Touchless control: Lights activate with door opening and turn off when closed
- Adjustable dimming: Set dimming levels between 50-100% to suit your needs
- Smooth soft on/off transitions
- Memory function: Retains settings even after a power cut
- Versatile installation: Recessed or surface mounting options
- Includes three color sleeves (white, grey, black) for customisation
Ideal Applications

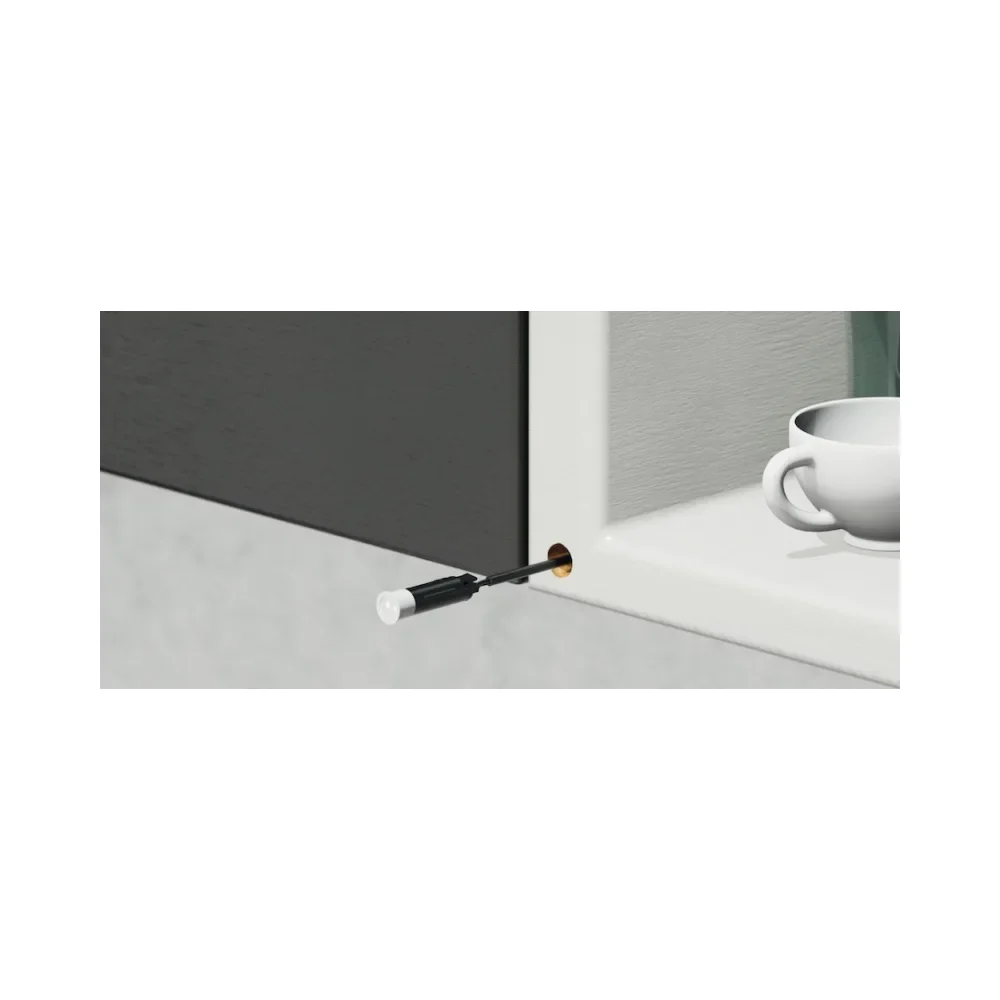

This sensor switch is ideal for cabinet lighting, wardrobe lighting, or furniture lighting, where hands-free control and dimming features are essential. Furthermore, its compact design makes it adaptable for various spaces.
Installation and Setup
Installation is straightforward due to the 12mm drill hole, allowing either recessed or surface-mounted configurations. The 0-75mm sensor range ensures reliable operation, and the integrated microswitch easily switches between dimmer and door sensor modes. Additionally, the color sleeves enable customisation to match different furniture styles.
For enhanced performance, use the recommended 2m lead with a snap-in connector (Cat. No. 833.89.142), which must be ordered separately.
Technical Specifications:
- Switching function: Soft on/off, touchless; door open = light on, door closed = light off
- Switching contact: Touchless
- Control output: 1x Loox switch
- Sensor range: 0-75mm

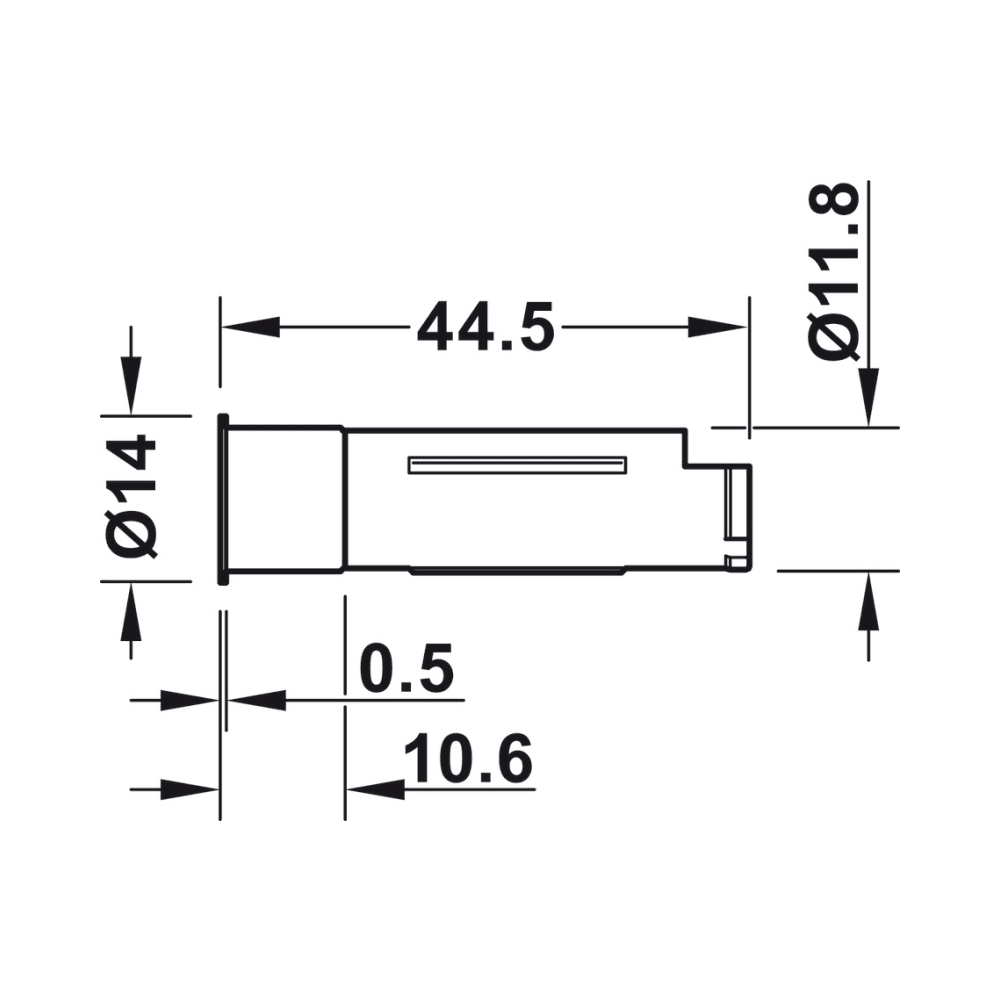

- Dimensions: Ø 11.8mm x 44.5mm
- Power consumption: 0.30W
- Material: Plastic
- Rated IP20 for dry indoor use
Supplied With:

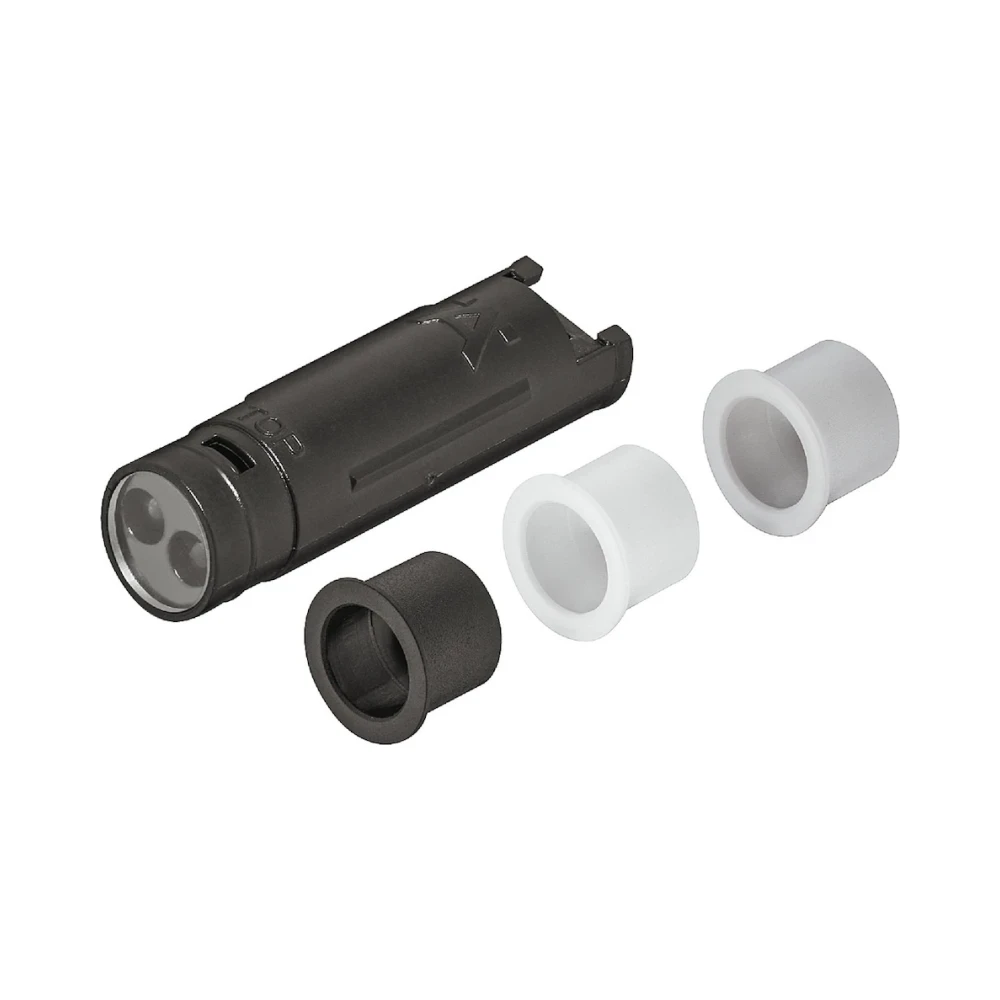

- 1x Adjustable sensor switch with black housing
- 3x Cover sleeves (white, grey, black) for customization
Order Reference:
Ensure to order the 2m lead with snap-in connector separately to complete the modular switch installation.
Additional Information:
The sensor range is optimised for white surfaces, but on black or matte surfaces, the range may be halved. For darker materials, trial mounting is recommended. Additionally, a white reflection surface can be added to sliding doors for enhanced sensor functionality.
Warranty Information:
This product comes with the Häfele Lifetime Guarantee, ensuring top quality. It’s covered for domestic use with a lifetime guarantee, while for commercial environments, a 12-month warranty applies.
