Description

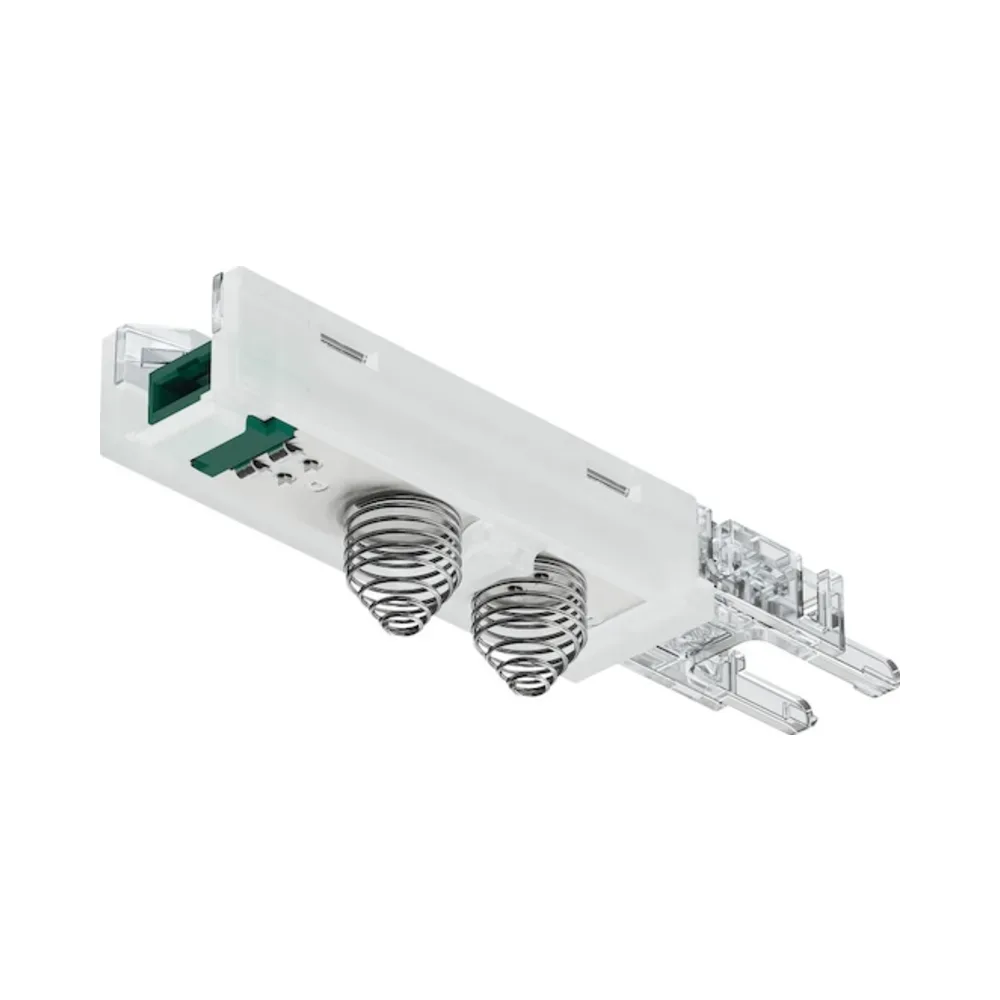

Loox5 Dimmer Switch Modular for Aluminium Profiles 24V
Hafele 83389291
The Hafele 83389291 Loox5 Dimmer Switch provides smooth soft on/off switching for monochrome 8 mm LED strip lights in Loox5 aluminium profiles. It delivers precise dimming control and retains the last dimming level, even after power is turned off.
Key Features of Hafele 83389291 Loox5 Dimmer Switch
- Switching function: Soft on/off with memory, dimming range 5% – 100%
- Power rating: 120 W, perfect for 24 V systems
- Easy installation, hidden beneath the profile’s diffuser
- Touchless operation for convenient use
- Designed for Loox5 2-pin 24 V connections
Technical Specifications:
- Input ports: 1 x socket, Loox5 modular, 2-pin 24 V
- Connections: 1 x Clip for Loox5 LED strip light, 8 mm monochrome
- Installation: Fits seamlessly into Loox5 aluminium profiles, concealed under the diffuser
- Material: Plastic
- Dimming memory: Keeps the light off when power is cut
- Protection: IP20, safe for indoor use
Installation and Compatibility:

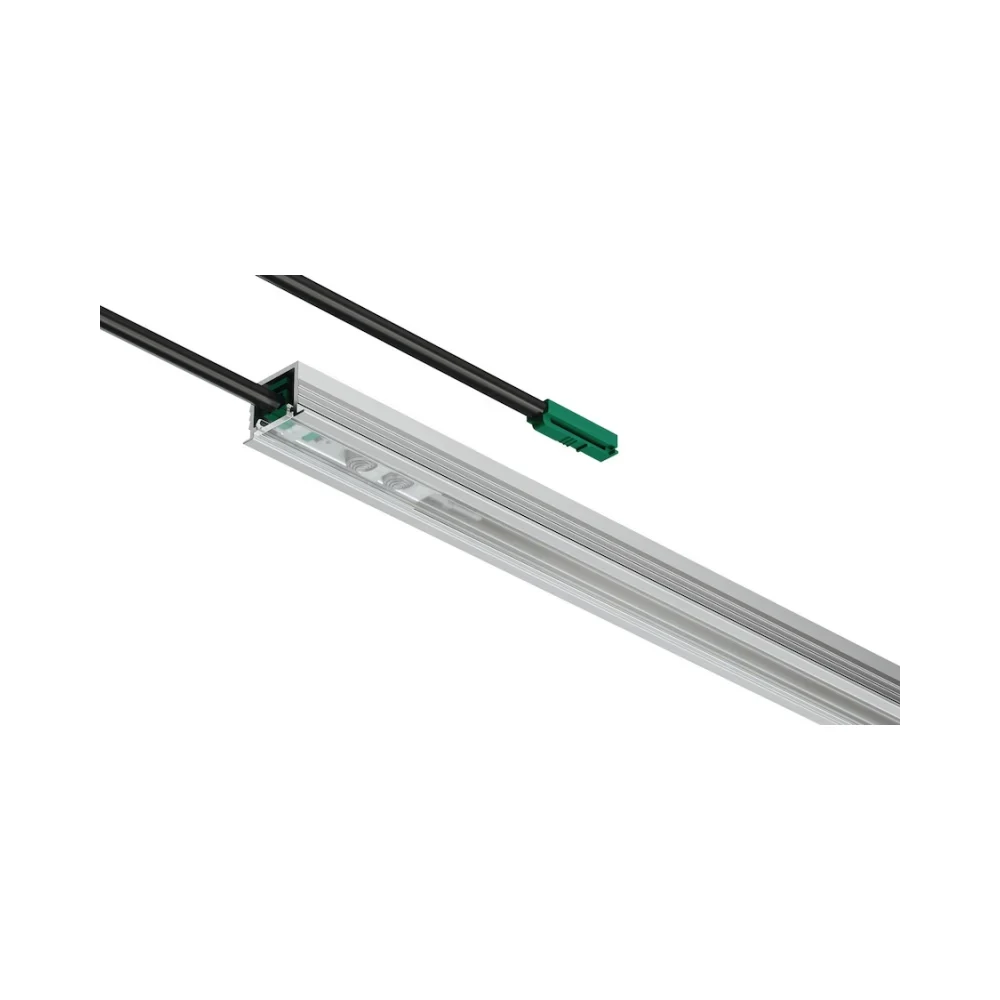

This dimmer works well with Loox5 aluminium profiles such as Profile 1103, 1105, 2102, 2103, 2104, and 2101. It also fits other profiles with similar dimensions (approx. 12–14 mm). Shorten the LED strip by about 50 mm to match the profile length for a proper fit.
Included:
- 1x Dimmer for Loox5 modular with catch, suitable for both 12 V or 24 V connections
Order Information:
Please order the modular lead with Loox5 2-pin snap-in connectors separately:
- 12 V/5 A, 2000 mm: Cat. No. 833.95.830
- 24 V/5 A, 2000 mm: Cat. No. 833.95.835
Warranty:
This product is backed by the Hafele Lifetime Guarantee, ensuring the highest standards of quality. For domestic environments, the lifetime guarantee applies, while commercial settings come with a 12-month warranty.
