Description

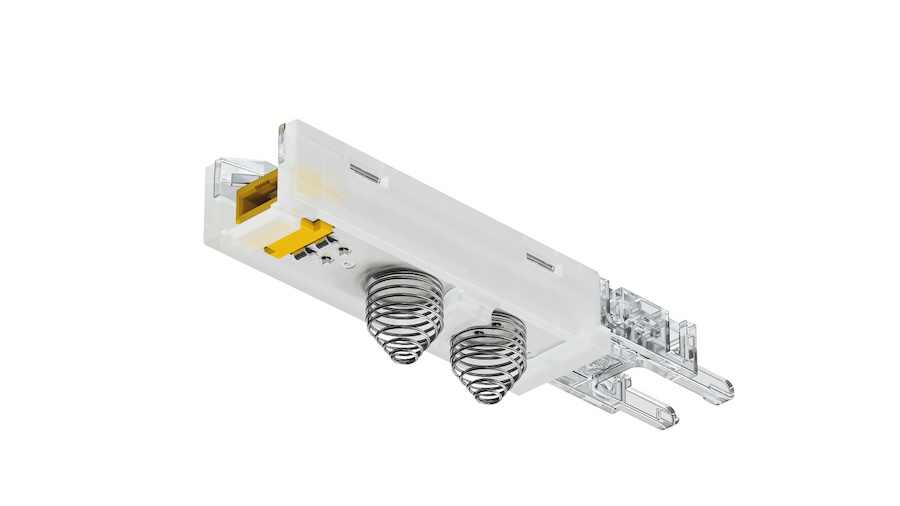

Loox5 Dimmer Switch 12V Modular for Aluminium Profiles
Hafele 83389281
The Hafele Loox5 Modular Dimmer Switch integrates seamlessly with monochrome 8 mm LED strip lights in Loox5 aluminium profiles, offering smooth and efficient control. This dimmer ensures a soft on/off function and includes a memory feature that keeps the dimming level after switching the lights off.
Key Features:
- Switching function: Soft on/off, dimming with memory
- Dimming range: 5% to 100%, for tailored lighting control
- Perfect for Loox5 aluminium profiles (Profiles 1103, 1105, 2102, 2103, 2104, 2101)
- Touchless control with automatic dimming memory
- Compatible with Loox5 2-pin 12 V connections
- Designed specifically for monochrome 8 mm LED strip lights
- Power rating: 60 W for enhanced performance
Technical Specifications:
- Input ports: 1 x Loox5 modular socket with 2-pin 12 V intervals
- Connections: 1 x Clip for Loox5 LED strip light 8 mm monochrome
- Material: Plastic, for lightweight durability
- Degree of protection: IP20, for safe indoor use

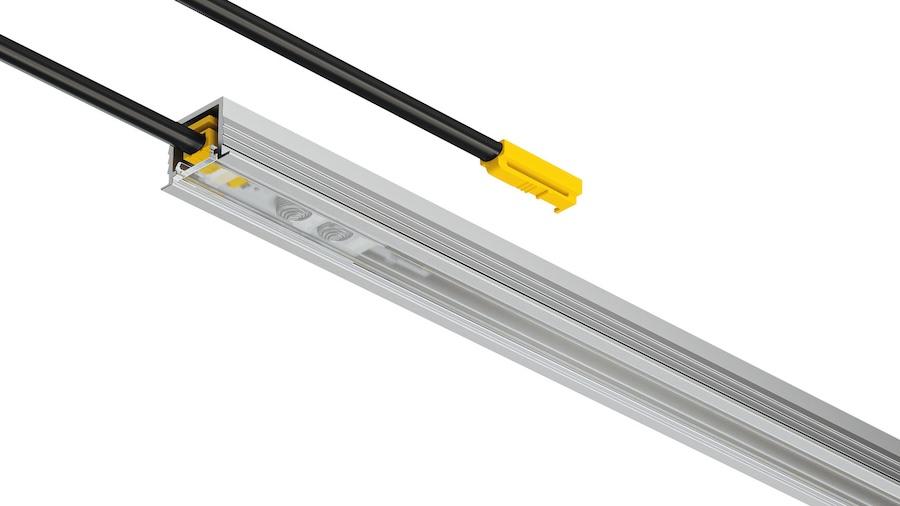

- Installation: Fits directly into Loox5 aluminium profiles, hidden under the diffuser
Installation and Compatibility:
This dimmer switch works well with other aluminium profiles that have a clear internal height of around 12-14 mm. When installing, simply shorten the LED strip light by approximately 50 mm to match the length of the aluminium profile. No diffuser shortening is necessary, as it will cover the dimmer perfectly.
Supplied With:
- 1x Dimmer for Loox5 modular system, suitable for 12 V or 24 V connections
Order Reference:
You’ll need to order the modular lead with Loox5 2-pin snap-in connector separately:
- 12 V/5 A, 2000 mm: Cat. No. 833.95.830
- 24 V/5 A, 2000 mm: Cat. No. 833.95.835
Warranty Information:
This product is covered by the Häfele Lifetime Guarantee, ensuring it meets the highest standards. The warranty applies to normal domestic use. For commercial environments, a 12-month guarantee applies.
